1996 Suzuki GN125ET Crankcase Cover Diagram

← All diagrams

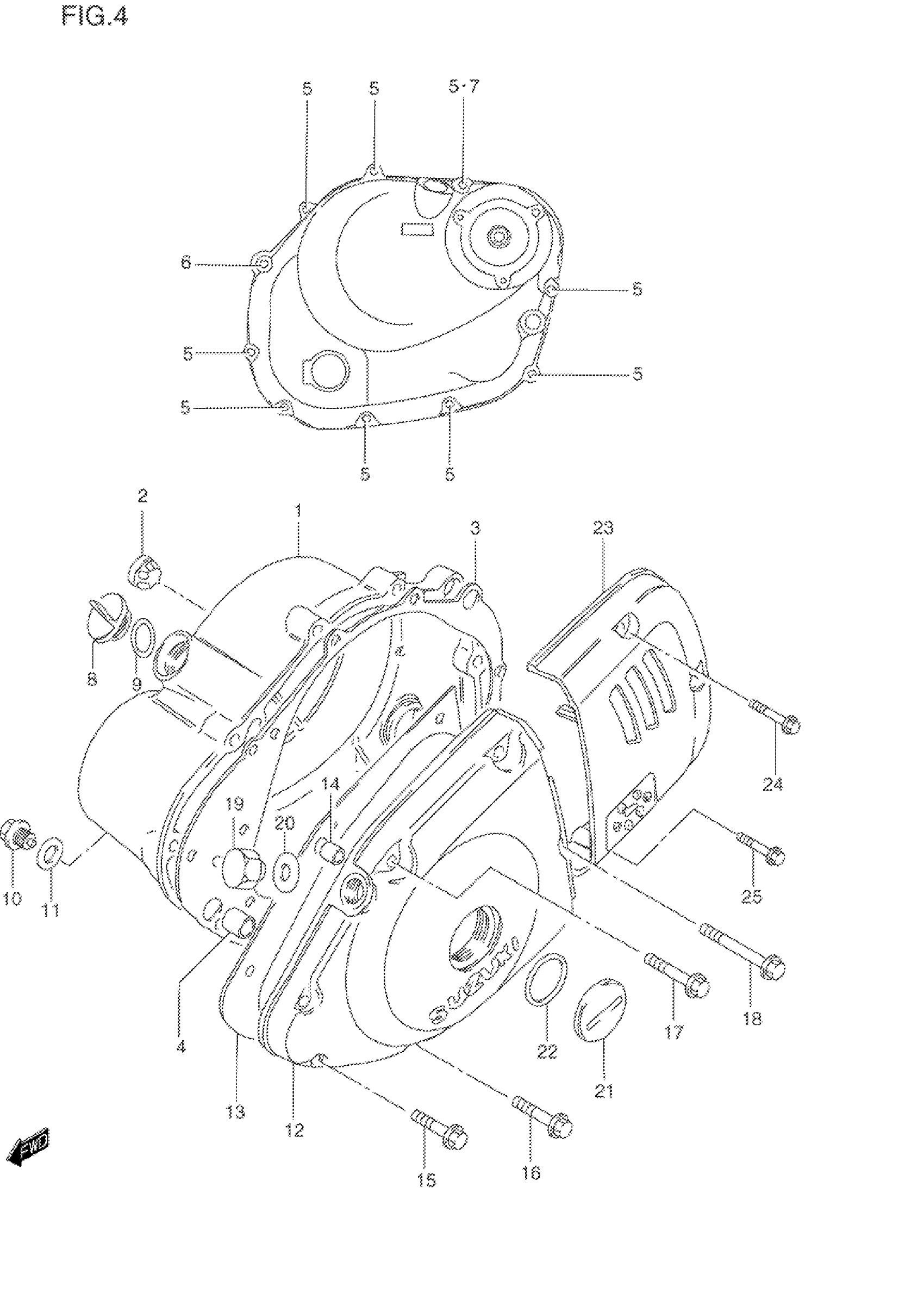

Find the part on the Crankcase Cover diagram for your 1996 Suzuki GN125ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GN125ET Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | MODEL M/N/P This part replaces 11340-05301.

11340-05302

1
Out of stock

1

COVER, CLUTCH | MODEL R/S/T; Includes Item(s) 2

11340-05302

1
Out of stock

2

.LENS, OIL LEVEL CHECK

11971-45010

1
Out of stock

3

GASKET, CLUTCH COVER | MODEL M/N/P/R This part replaces 11482-05310.

11482-05311

1
Out of stock

3

GASKET, CLUTCH COVER | MODEL S/T

11482-05311

1
Out of stock

4

PIN

04211-13189

2
Out of stock

5

BOLT (6X30)

01547-06307

9
Out of stock

6

BOLT (6X45)

01547-06457

1
Out of stock

7

GASKET | MODEL M/N/P/R

09168-06023

1
Out of stock

7

GASKET | MODEL S/T

09168-06024

1
Out of stock

8

PLUG, OIL FILLER | MODEL M/N/P

09259-20007

1
Out of stock

8

PLUG, OIL FILLER | MODEL R/S/T This part replaces 09259-20018.

09259-20007

1
Out of stock

9

O RING

09280-17003

1
Out of stock

10

1

$3.63

In stock

10

1

$3.63

In stock

11

GASKET

09168-14002

1
Out of stock

12

COVER, MAGNETO | MODEL M/N/P This part replaces 11351-05301.

11351-05302

1
Out of stock

12

COVER, MAGNETO | MODEL R/S/T

11351-05302

1
Out of stock

13

GASKET, MAGNETO COVER | MODEL M/N/P/R This part replaces 11483-05310.

11483-05312

1
Out of stock

13

GASKET, MAGNETO COVER | MODEL S/T This part replaces 11483-05311.

11483-05312

1
Out of stock

14

PIN

04211-09129

1
Out of stock

15

BOLT (6X30)

01547-06307

2
Out of stock

16

BOLT (6X35)

01547-06357

2
Out of stock

17

BOLT (6X40)

01547-06407

2
Out of stock

18

BOLT (6X50)

01547-06507

1
Out of stock

19

PLUG, T.D.C

09247-12104

1
Out of stock

20

GASKET

09168-12002

1
Out of stock

21

PLUG | MODEL M/N/P This part replaces 09259-26003.

09259-26011

1
Out of stock

21

PLUG | MODEL R/S/T

09259-26011

1
Out of stock

22

O RING

09280-22008

1
Out of stock

23

COVER, ENGINE SPROCKET | MODEL M/N/P This part replaces 11361-05300.

11361-05301

1
Out of stock

23

COVER, ENGINE SPROCKET | MODEL R/S/T

11361-05301

1
Out of stock

24

BOLT

01547-05357

2
Out of stock

25

BOLT

01547-05257

1
Out of stock
