1995 Suzuki GN125E Rear Swinging Arm Diagram

← All diagrams

Find the part on the Rear Swinging Arm diagram for your 1995 Suzuki GN125E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

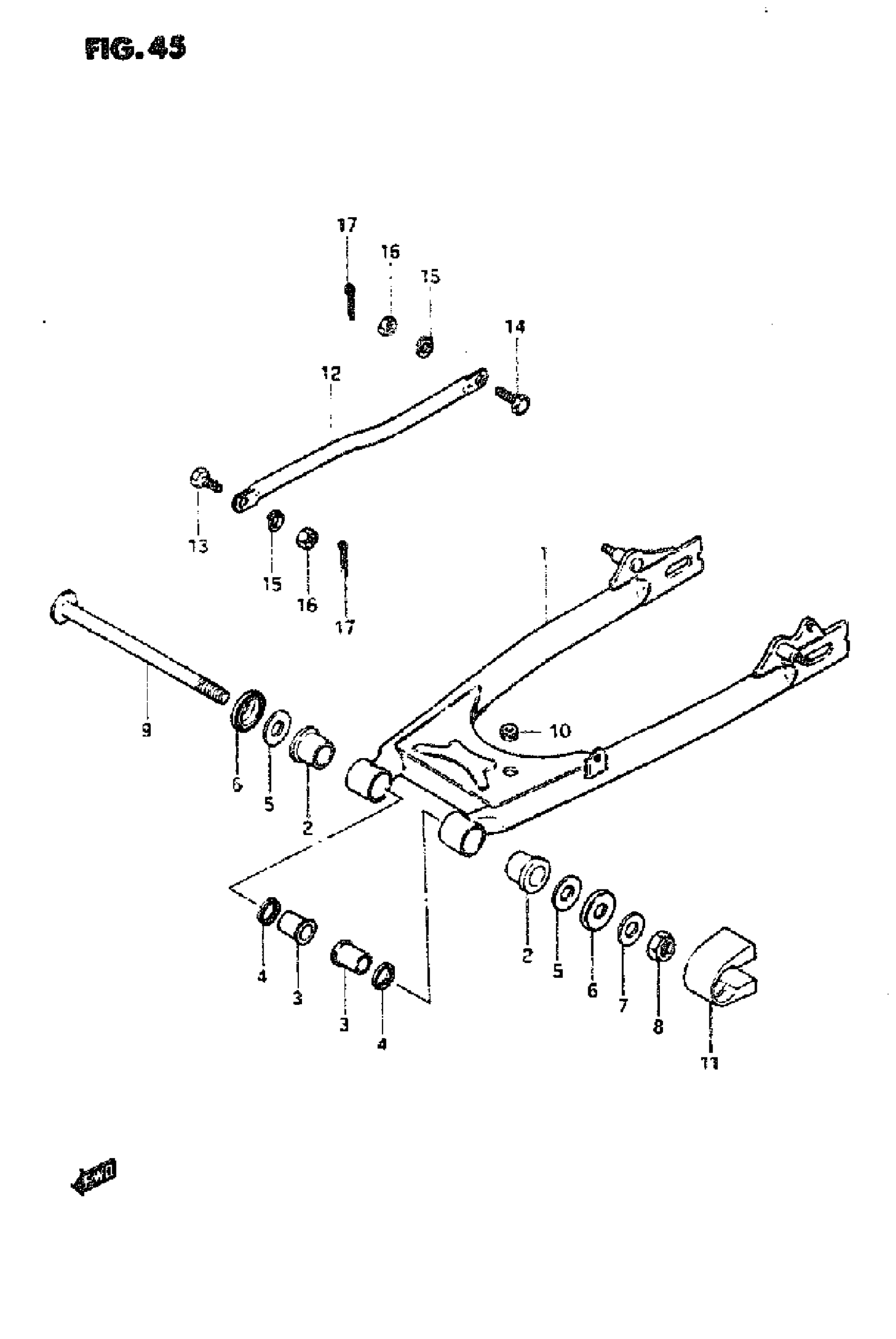

1995 Suzuki GN125E Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR (BLACK)

61000-05300-019

1
Out of stock

2

BUSH

61261-05301

2

$26.03

In stock

3

SPACER. PIVOT

61251-05300

2
Out of stock

4

OIL SEAL

09286-20001

2

$4.70

In stock

5

WASHER

08211-14341

2

$3.72

In stock

6

COVER PIVOT

61262-45002

2

$8.18

In stock

8

1

$3.91

In stock

9

1

$33.12

In stock

10

CUSHION

09320-08020

1

$3.70

In stock

11

BUFFER. CHAIN TOUCH DEFENSE

61273-05300

1
Out of stock

12

TORQUE LINK, REAR (BLACK)

64310-05300-019

1
Out of stock

13

BOLT, FRONT

09111-08012

1

$4.12

In stock

14

BOLT, REAR

09111-08013

1

$3.00

In stock

15

2

$2.23

In stock

16

NUT

09140-08008

2

$1.55

In stock

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock
