Description

Price

1

COCK ASSY,FUEL | MODEL M/N/P/R/S This part replaces 44300-22074.

44300-22077

$50.78

1

COCK ASSY,FUEL | MODEL T This part replaces 44300-22075.

44300-22077

$50.78

2

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

$4.63

3

CUP

44347-28071

$10.15

4

O-RING This part replaces 44346-28070.

44346-28071

$2.35

5

O RING, LEVER This part replaces 44353-12C00.

44353-12C01

$6.80

6

SPRING

44357-32470

$2.12

7

SCREW

44343-41370

$2.50

8

BOLT | MODEL M/N/P/R/S This part replaces 09128-06006.

09128-06057

$1.64

8

BOLT | MODEL T

09128-06057

$1.64

9

GASKET

09168-06026

$2.80

10

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$9.08

11

CLIP

09401-08401

$1.52

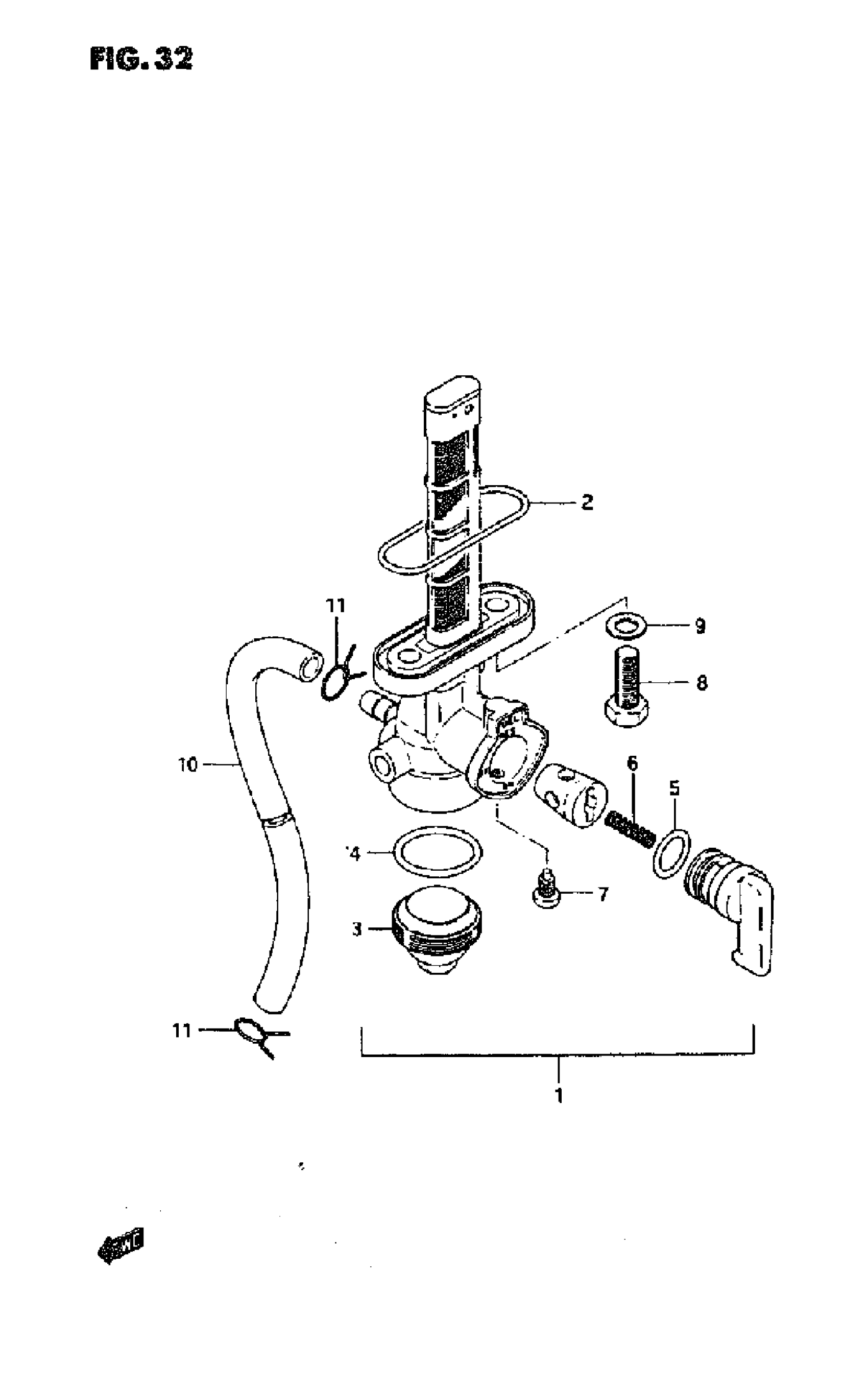

Suzuki GN125E (1995) FUEL COCK Diagram
