1993 Suzuki GN125E Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 1993 Suzuki GN125E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

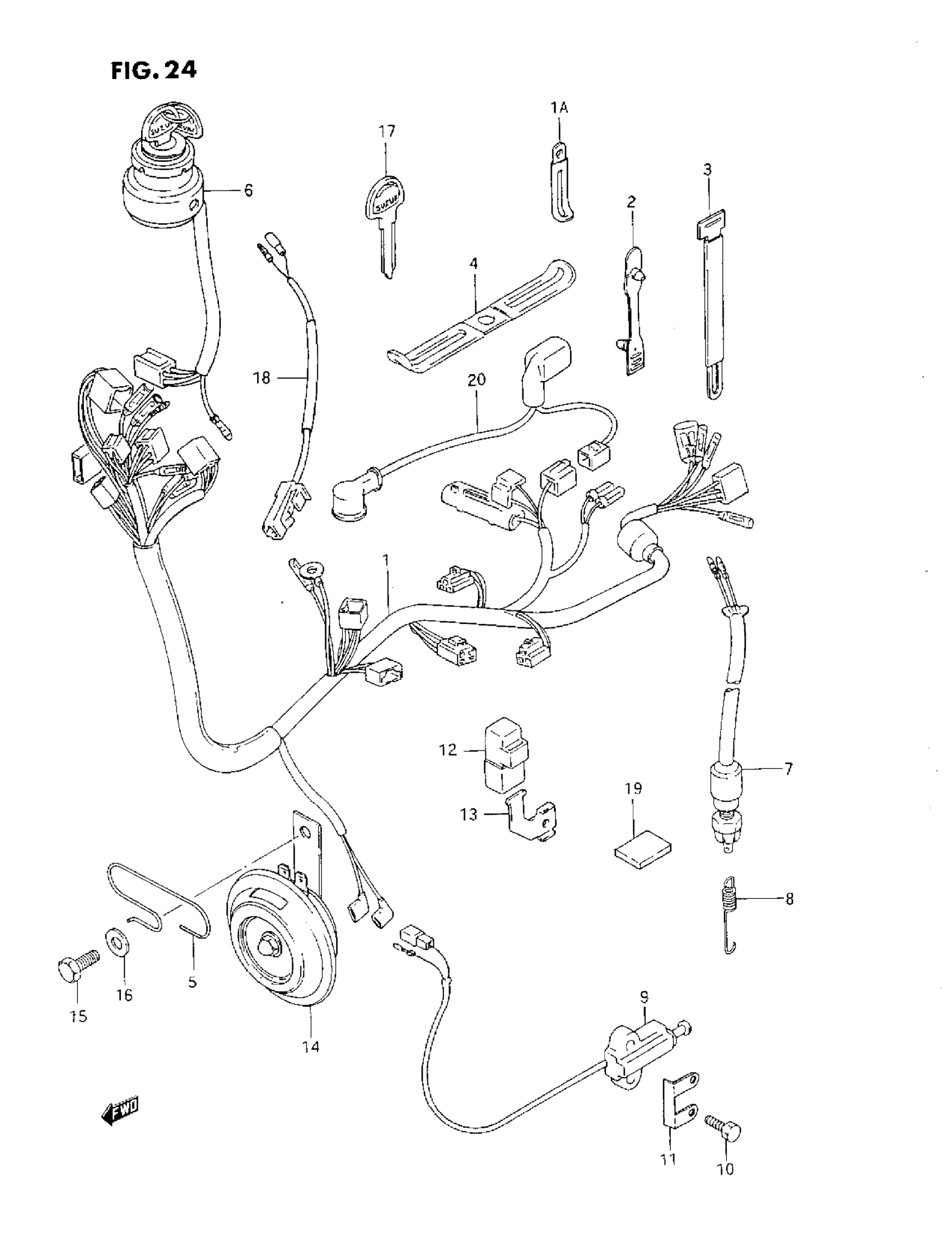

1993 Suzuki GN125E Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS | MODEL M/N

36610-05480

1
Out of stock

1

WIRING HARNESS | MODEL P

36610-05481

1
Out of stock

1

WIRING HARNESS | MODEL R

36610-053C0

1
Out of stock

2

CLAMP

09404-06420

1
Out of stock

2

CLAMP

09407-05403

1
Out of stock

3

CLAMP This part replaces 09407-14301.

09407-18302

3
Out of stock

3

CLAMP

09407-14403

4
Out of stock

3

CLAMP This part replaces 09407-18301.

09407-18302

1
Out of stock

3

CLAMP

09407-18402

2
Out of stock

3

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

1
Out of stock

3

CLAMP

09407-25401

1
Out of stock

4

CLAMP, STARTER MOTOR LEAD | MODEL M/N This part replaces 36651-05300.

36651-05301

1
Out of stock

4

CLAMP, CLUTCH CABLE | MODEL P/R

36651-05301

1
Out of stock

5

NO DESCRIPTION AVAILABLE This part replaces 36619-37300.

36619-05300

1
Out of stock

6

SWITCH ASS'Y, IGNITION

37110-33021

1
Out of stock

7

SWITCH, REAR BRAKE LAMP | MODEL M/N/P

37740-48071

1
Out of stock

7

SWITCH, REAR BRAKE LAMP | MODEL R

37740-45D00

1
Out of stock

8

SPRING

09443-06078

1
Out of stock

9

SWITCH ASSY,SID | MODEL M/N/P This part replaces 37840-11D00.

37840-11X51

1
Out of stock

9

SWITCH ASSY,SID | MODEL R This part replaces 37840-11D10.

37840-11X51

1
Out of stock

10

BOLT | MODEL M/N/P This part replaces 01517-06204.

01550-0620A

2
Out of stock

10

BOLT | MODEL R This part replaces 01550-06203.

01550-0620A

2
Out of stock

11

PROTECTOR

37841-14D00

1
Out of stock

12

RELAY ASSY, SIDE STAND This part replaces 38740-24B10.

38740-24X50

1
Out of stock

13

BRACKET, RELAY

38741-05300

1
Out of stock

14

HORN This part replaces 38500-38360.

38500-38361

1
Out of stock

15

BOLT (8X16) | MODEL R This part replaces 01550-08163.

01550-0816A

1
Out of stock

16

WASHER This part replaces 08322-11084.

08322-0108A

1
Out of stock

17

KEY, BLANK | OPT This part replaces 37145-19710.

37146-49300

1
Out of stock

18

LEAD WIRE, CLUTCH SWITCH

36852-05300

1
Out of stock

19

PROTECTOR

36920-10B00

1
Out of stock

20

LEAD WIRE, BATTERY PLUS | MODEL R

33820-053A0

1
Out of stock
