1993 Suzuki GN125E Brake Hose Diagram

← All diagrams

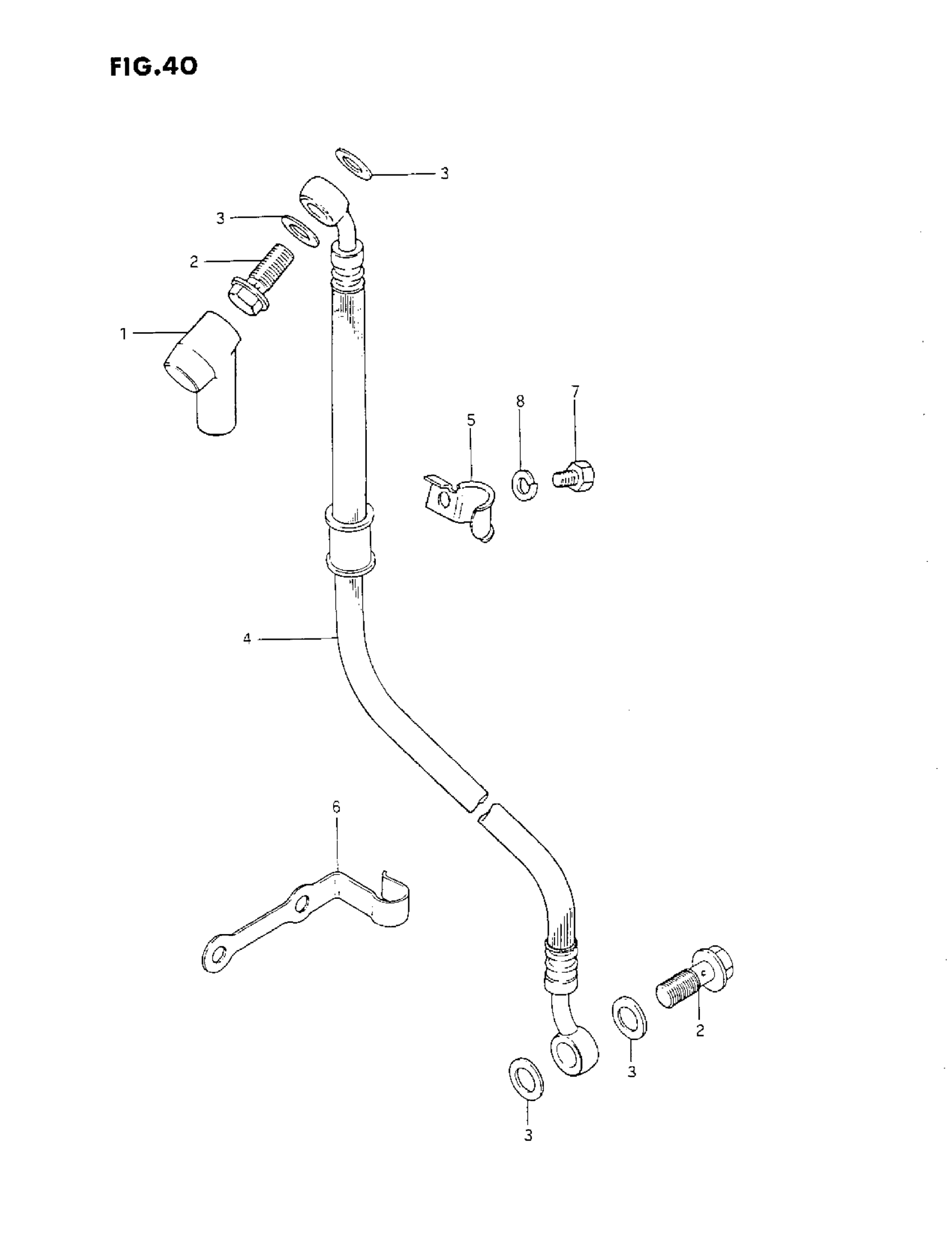

Find the part on the Brake Hose diagram for your 1993 Suzuki GN125E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GN125E Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOOT, MASTER CYLINDER | MODEL M/N

59711-49001

1
Out of stock

2

BOLT | MODEL M/N/P

09360-10017

2
Out of stock

2

2

$6.33

In stock

3

WASHER (10X15X1.5)

09161-10009

4
Out of stock

4

HOSE, BRAKE

59480-05350

1
Out of stock

5

CLAMP, BRAKE HOSE

59246-39100

1
Out of stock

6

CLAMP, BRAKE HOSE

59268-11300

1
Out of stock

7

BOLT | MODEL M This part replaces 01107-06127.

01500-06127

1
Out of stock

7

BOLT | MODEL N/P This part replaces 01137-06128.

01570-06127

1
Out of stock

7

BOLT | MODEL R This part replaces 01570-06123.

01570-0612A

1
Out of stock
