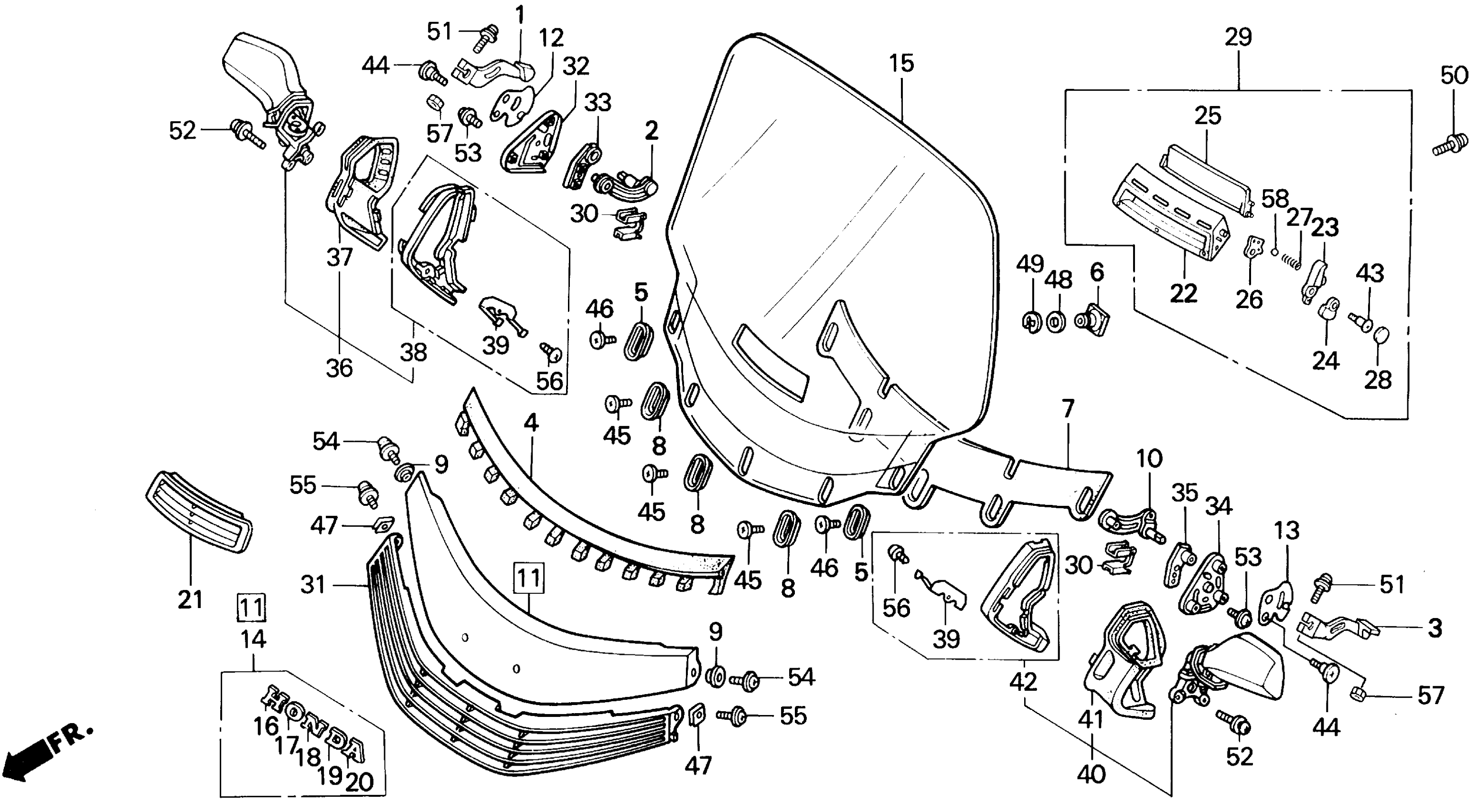

Honda GL1500SEA (94) GOLD WING SE, USA, VIN# 1HFSC223-RA600001 SE WINDSCREEN 94 Diagram

#

Description
Price

1

LEVER, R.

64107-MT8-000

Unavailable

2

PLATE, R. TENSION

64108-MAM-000

Unavailable

2

PLATE, R. TENSION This part replaces 64108-MT8-000.

64108-MAM-000

Unavailable

3

LEVER, L.

64109-MT8-000

$59.08

4

SEAL, WINDSCREEN

64111-MT8-000

Unavailable

5

PLATE B, WINDSCREEN SETTING

64113-MN5-000

Unavailable

6

NUT, WINDSCREEN SETTING

64114-MG9-770

Unavailable

7

RUBBER, SCREEN

64115-MAM-000

$52.31

7

RUBBER, SCREEN This part replaces 64115-MN5-000.

64115-MAM-000

$52.31

8

PLATE, WINDSCREEN SETTING

64116-MN5-000

$6.36

9

COLLAR, SCREEN GARNISH

64117-MW5-000

Unavailable

10

PLATE, L. TENSION

64118-MAM-000

Unavailable

10

PLATE, L. TENSION This part replaces 64118-MT8-000.

64118-MAM-000

Unavailable

11

GARNISH, SCREEN

64120-MY4-770

Unavailable

12

PLATE, R. LEVER SIDE

64123-MT8-000

Unavailable

13

PLATE, L. LEVER SIDE

64124-MT8-000

Unavailable

14

EMBLEM, FR. This part replaces 64125-MAM-000.

64125-MAM-010

Unavailable

14

EMBLEM, FR. This part replaces 64125-MT8-770.

64125-MAM-010

Unavailable

15

WINDSCREEN

64130-MW5-770

Unavailable

16

EMBLEM, FR. (H)

64142-MAM-000

Unavailable

16

EMBLEM, FR. (H) This part replaces 64142-MT8-770.

64142-MAM-000

Unavailable

17

EMBLEM, FR. (O)

64143-MT8-770

Unavailable

18

EMBLEM, FR. (N)

64144-MT8-770

Unavailable

19

EMBLEM, FR. (D)

64145-MT8-770

Unavailable

20

EMBLEM, FR. (A)

64146-MAM-000

Unavailable

20

EMBLEM, FR. (A) This part replaces 64146-MT8-770.

64146-MAM-000

Unavailable

21

GRILLE, CENTER FRESH AIR This part replaces 64150-MT8-770.

64150-MT8-771

Unavailable

22

VISOR, CENTER FRESH AIR

64155-MY4-770

Unavailable

23

LEVER, CENTER FRESH AIR

64157-MT8-770

Unavailable

24

COVER, CENTER FRESH AIR LEVER

64158-MT8-770

Unavailable

25

LID, CENTER FRESH AIR

64160-MT8-770

Unavailable

26

PLATE, LEVER CLICK

64166-MT8-770

Unavailable

27

SPRING, LEVER CLICK

64167-MT8-770

$3.02

28

PLATE, COVER

64168-MT8-770

$2.42

29

VISOR ASSY., FRESH AIR This part replaces 64170-MY4-770.

64170-MY4-771

Unavailable

30

CLIP, SCREEN GUIDE

64219-MN5-000

$3.57

31

LOUVER, FR. (UPPER)

64260-MW5-770

$55.80

32

BASE, R. MIRROR

64531-MN5-000

Unavailable

33

PLATE, R. PIVOT

64532-MT8-000

Unavailable

34

BASE, L. MIRROR

64631-MN5-000

Unavailable

35

PLATE, L. PIVOT

64632-MT8-000

Unavailable

36

MIRROR ASSY., R. BACK *R176C* (CANDY SPECTRA RED)

88110-MT8-000ZJ

Unavailable

36

MIRROR ASSY., R. BACK *NH326P* (PEARL GLACIER WHITE)

88110-MT8-000ZM

Unavailable

36

MIRROR ASSY., R. BACK *BG101P* (PEARL BERMUDA GREEN)

88110-MT8-000ZR

$384.43

36

MIRROR ASSY., R. BACK *B142P* (PEARL ATLANTIS BLUE)

88110-MT8-000ZS

Unavailable

37

BOOT, R.

88113-MN5-003

$31.35

38

BASE ASSY., R. MIRROR *R176C* (CANDY SPECTRA RED)

88114-MN5-003ZP

$116.15

38

BASE ASSY., R. MIRROR *NH326P* (PEARL GLACIER WHITE)

88114-MN5-003ZT

$101.92

38

BASE ASSY., R. BACK MIRROR *BG101P* (PEARL BERMUDA GREEN)

88114-MN5-003ZX

$101.92

38

BASE ASSY., R. MIRROR *B142P* (PEARL ATLANTIS BLUE)

88114-MN5-003ZY

Unavailable

39

PLATE, SET

88119-MN5-000

$5.20

40

MIRROR ASSY., L. *R176C* (CANDY SPECTRA RED)

88120-MT8-000ZJ

Unavailable

40

MIRROR ASSY., L. *NH326P* (PEARL GLACIER WHITE)

88120-MT8-000ZM

Unavailable

40

MIRROR ASSY., L. *B142P* (PEARL ATLANTIS BLUE)

88120-MT8-000ZP

Unavailable

40

MIRROR ASSY., L. *BG101P* (PEARL BERMUDA GREEN)

88120-MT8-000ZQ

Unavailable

41

BOOT, L.

88123-MN5-003

Unavailable

42

BASE ASSY., L. MIRROR *R176C* (CANDY SPECTRA RED)

88124-MN5-003ZP

$114.15

42

BASE ASSY., L. MIRROR *NH326P* (PEARL GLACIER WHITE)

88124-MN5-003ZT

$104.97

42

BASE ASSY., L. MIRROR *B142P* (PEARL ATLANTIS BLUE)

88124-MN5-003ZV

Unavailable

42

BASE ASSY., L. MIRROR *BG101P* (PEARL BERMUDA GREEN)

88124-MN5-003ZW

Unavailable

43

SCREW, HINGE PATCH

90101-GE0-000

$2.92

44

SCREW, SPECIAL (6X8) This part replaces 90104-KT8-710.

90104-MJ0-660

$4.25

45

SCREW, SCREEN SETTING

90107-MN5-000

$3.19

46

SCREW, SCREEN SETTING (6X12)

90107-MT2-000

$3.38

47

NUT, PLATE (5MM)

90305-MN5-000

$5.72

48

WASHER

90501-MT2-000

$1.98

49

E-RING (8MM)

90601-473-003

$2.17

50

SCREW-WASHER (4X12)

93891-04012-07

$1.18

51

SCREW-WASHER (5X22)

93891-05022-07

Unavailable

52

SCREW-WASHER (5X28)

93891-05028-08

$0.82

53

SCREW-WASHER (5X12)

93893-05012-08

$1.38

53

SCREW-WASHER (5X12) This part replaces 93893-05012-18.

93893-05012-08

$1.38

54

SCREW-WASHER (5X12)

93894-05012-08

$1.00

54

SCREW-WASHER (5X12) This part replaces 93894-05012-18.

93894-05012-08

$1.00

55

SCREW-WASHER (5X16)

93894-05016-07

$1.18

56

SCREW, TAPPING (4X10)

93901-24280

$0.88

57

NUT, HEX. (5MM)

94001-050800S

$1.09

58

BALL, STEEL (#6) (3/16)

96211-06000

$0.55
