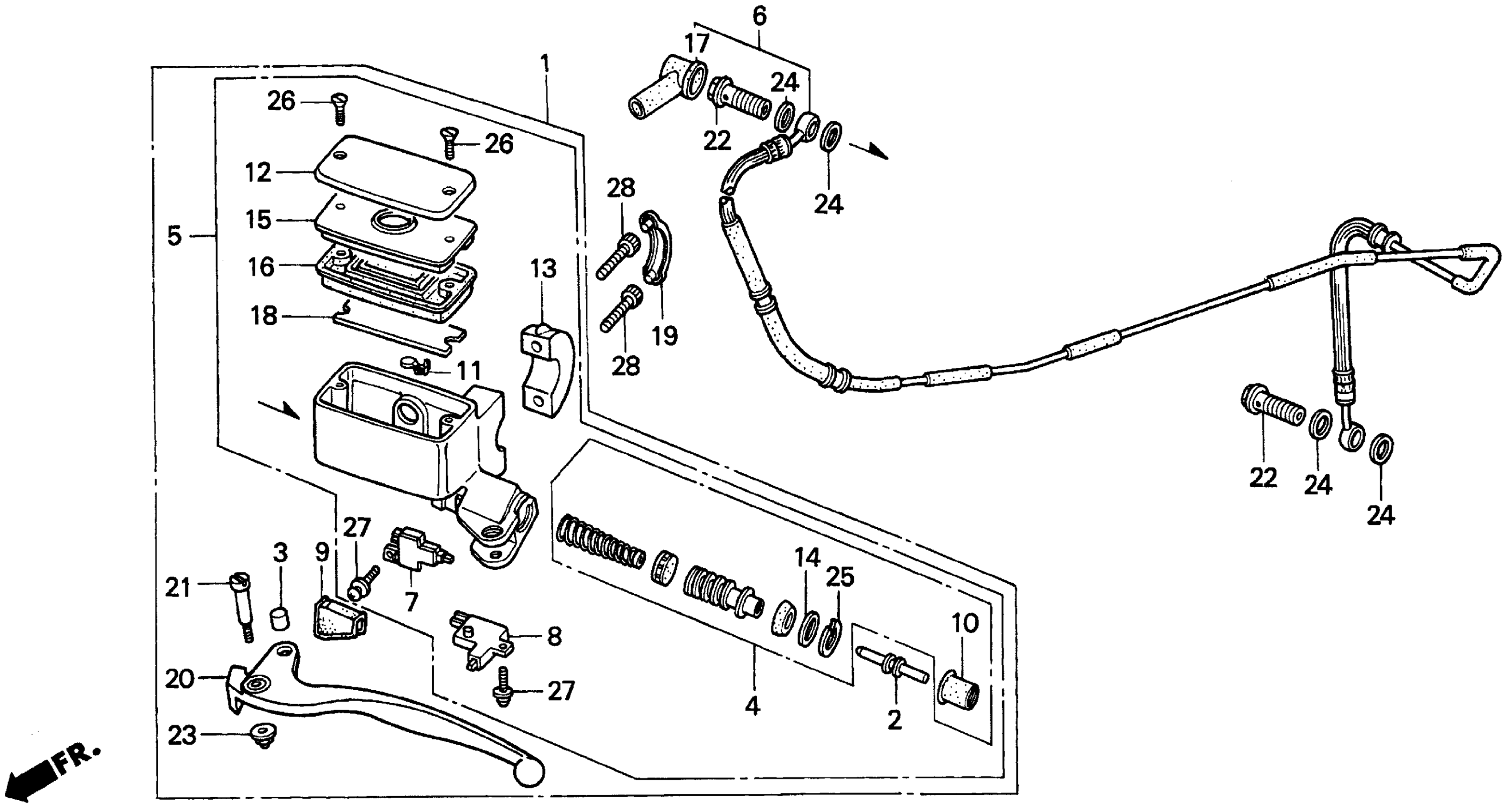

Honda GL1500IA (94) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-RA600001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY., CLUTCH

22880-MW5-871

Unavailable

2

ROD, PUSH

22884-MB0-006

$19.83

3

BUSH

22885-MB0-006

$12.42

4

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB4-305

$71.08

6

HOSE, CLUTCH

22900-MAM-A80

$81.58

6

HOSE, CLUTCH This part replaces 22900-MT2-000.

22900-MAM-A80

$81.58

7

SWITCH ASSY., CLUTCH

35330-MB0-003

$17.46

9

COVER, CLUTCH SWITCH

35359-MN5-000

Unavailable

10

BOOT

45504-410-003

$11.68

11

PROTECTOR

45512-MA6-006

$4.26

12

CAP, MASTER CYLINDER This part replaces 45513-MN5-006.

45513-MAM-A61

$32.26

13

HOLDER, MASTER CYLINDER (NISSIN) This part replaces 45517-MN5-006.

45517-MN5-016

Unavailable

13

HOLDER, MASTER CYLINDER (NISSIN)

45517-MN5-016

Unavailable

14

PLATE, STOPPER

45518-MB0-006

$1.88

15

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.23

16

DIAPHRAGM (NISSIN)

45520-MM5-006

$14.50

17

BOOT, MASTER CYLINDER

45522-422-000

$8.74

18

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.46

20

LEVER, L. HANDLE

53178-MN5-006

Unavailable

21

BOLT, HANDLEBAR

90114-MG9-951

$7.85

22

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.29

22

BOLT, OIL (10X22)

90145-MS9-612

$7.29

23

NUT, CAP (6MM)

90202-ZV0-000

$2.82

24

WASHER, OIL BOLT

90545-300-000

$6.06

25

CIRCLIP (INNER) (18MM)

90651-377-003

$1.88

26

SCREW, FLAT (4X12)

93600-04012-0G

$0.94

26

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.94

27

SCREW-WASHER (4X12)

93893-04012-07

$1.38

27

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.38

28

BOLT, SOCKET (6X20)

96600-06020-17

$1.28
