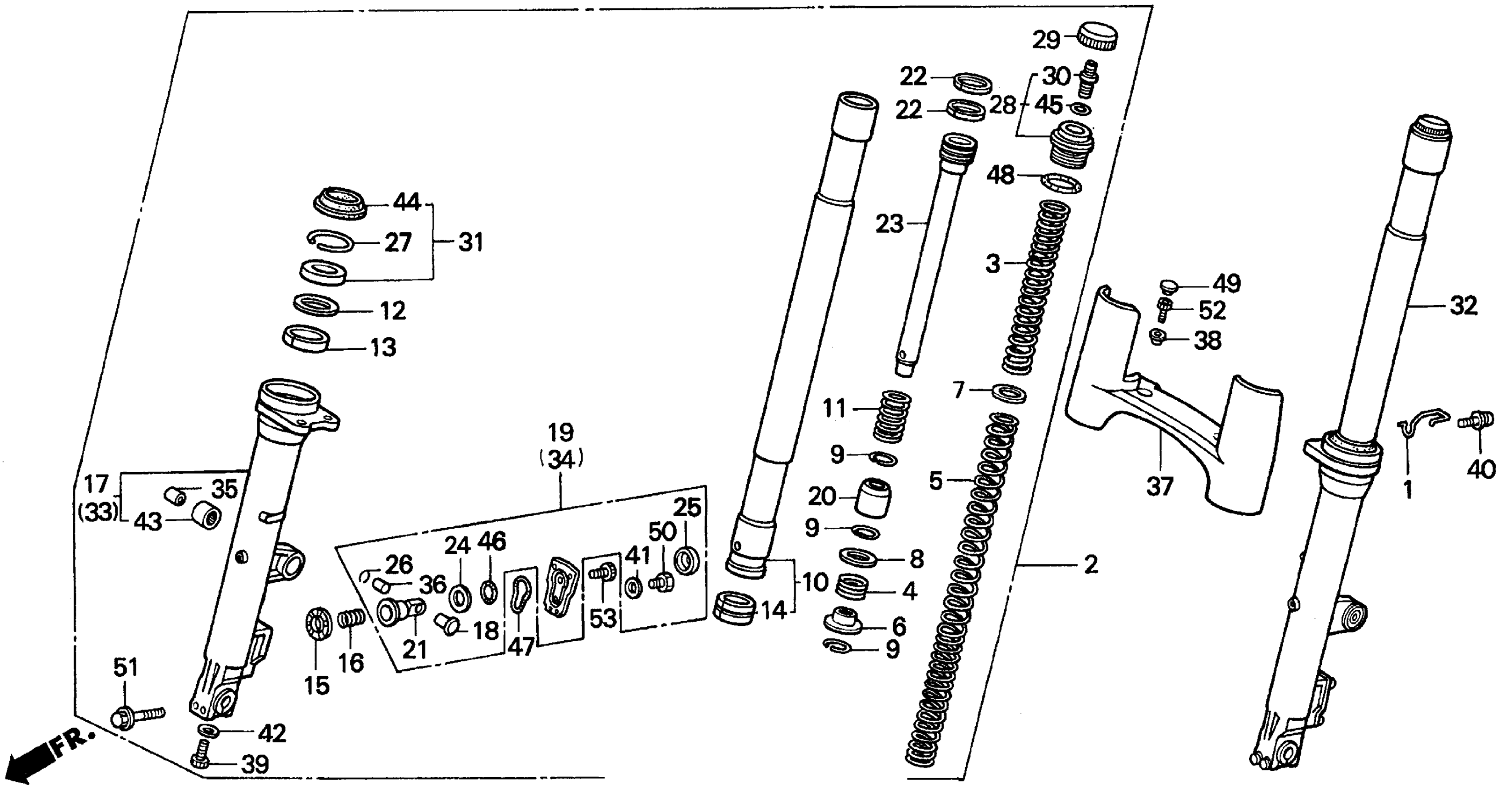

Honda GL1500AA (94) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-RA600001 A/SE FRONT FORK 94 Diagram

#

Description
Price

1

GUIDE, METER CABLE

44832-MT8-000

Unavailable

2

FORK ASSY., R. FR. (SHOWA)

51400-MZ3-771

Unavailable

3

SPRING, FR. FORK (SHOWA)

51401-MN5-003

Unavailable

4

SPRING, OIL LOCK

51402-MB7-611

$5.35

5

SPRING B, FR. FORK (SHOWA)

51402-MN5-003

$88.77

6

VALVE, OIL LOCK

51403-MB7-611

$10.49

7

PLATE, SPRING JOINT

51404-MB4-003

$5.06

8

SEAT, SPRING

51404-MB7-611

$5.09

9

RING, STOPPER

51405-MB7-611

$2.82

10

PIPE, FR. FORK (SHOWA)

51410-MT8-003

Unavailable

11

SPRING, REBOUND (SHOWA)

51411-MN5-003

Unavailable

12

RING, BACK-UP

51412-MB4-003

$9.26

13

BUSH, GUIDE (SHOWA)

51414-KCR-003

$13.44

13

BUSH, GUIDE (SHOWA) This part replaces 51414-MN5-003.

51414-KCR-003

$13.44

14

BUSH, SLIDER (SHOWA)

51415-KCR-003

$12.14

14

BUSH, SLIDER (SHOWA) This part replaces 51415-MN5-003.

51415-KCR-003

$12.14

15

GASKET

51417-MJ6-013

$8.29

16

SPRING, PISTON (SHOWA)

51418-MN5-003

Unavailable

17

CASE, R. (LOWER) (SHOWA)

51421-MN5-003

Unavailable

18

COLLAR, PISTON

51423-MJ0-003

$11.85

19

CASE, PISTON

51430-MT8-003

Unavailable

20

PIECE, OIL LOCK (SHOWA)

51432-MN5-003

Unavailable

21

PISTON

51436-MT8-003

Unavailable

22

RING, PISTON

51437-MN5-003

$8.44

23

PIPE, SEAT

51440-MN5-003

Unavailable

24

RUBBER, STOPPER

51441-MT8-003

Unavailable

25

BOOT, PISTON CASE

51442-MJ0-003

$9.80

26

RING, STOPPER

51445-MJ0-003

$2.51

27

RING, OIL SEAL STOPPER

51447-KA4-711

$4.49

28

BOLT ASSY., FR. FORK This part replaces 51450-MN5-305.

51450-MN5-505

Unavailable

29

CAP, AIR VALVE

51456-MB2-003

Unavailable

30

VALVE, AIR (SHOWA)

51456-469-013

$32.22

31

SEAL SET, FR. FORK (SHOWA)

51490-MN8-305

$33.67

32

FORK ASSY., L. FR. (SHOWA)

51500-MZ3-771

Unavailable

33

CASE, L. (LOWER) (SHOWA)

51521-MN5-003

Unavailable

34

CASE, L. PISTON

51530-MT8-003

Unavailable

35

COLLAR, L. FR. CALIPER BRACKET

51536-ML7-000

Unavailable

36

BUSH, RUBBER

51545-MJ0-003

$9.44

37

COVER, FR. FORK *TMRCR2* (CHROME PLATING) This part replaces 61050-MW5-000ZA.

61050-MW5-000ZG

$279.48

37

COVER, FR. FORK *TMRCR2* (CHROME PLATING)

61050-MW5-000ZG

$279.48

38

COLLAR

64630-GE3-610

Unavailable

39

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.87

40

SCREW-WASHER (5X12)

90132-MN5-000

Unavailable

41

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.38

42

WASHER, SPECIAL (8MM)

90544-283-000

$2.77

43

BEARING, NEEDLE (1422)

91071-ML7-003

Unavailable

44

DUST SEAL

91254-MM8-003

$17.17

45

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

45

O-RING (5.8X1.9)

91305-323-000

$2.92

46

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.15

47

O-RING (49.4X3.1)

91308-MJ0-003

$3.55

48

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.74

49

CAP, SOCKET BOLT (6MM)

91455-MG8-000

$2.49

50

BOLT, HEX. (6X8)

92101-06008-0A

$1.43

51

BOLT, FLANGE (8X45)

96400-08045-08

Unavailable

52

BOLT, SOCKET (6X10)

96700-06010-08

$1.40

53

BOLT, SOCKET (6X16)

96600-06016-00

$1.82

53

BOLT, SOCKET (6X16) This part replaces 96700-06016-00.

96600-06016-00

$1.82

53

BOLT, SOCKET (6X16) This part replaces 96700-06016-17.

96600-06016-00

$1.82
