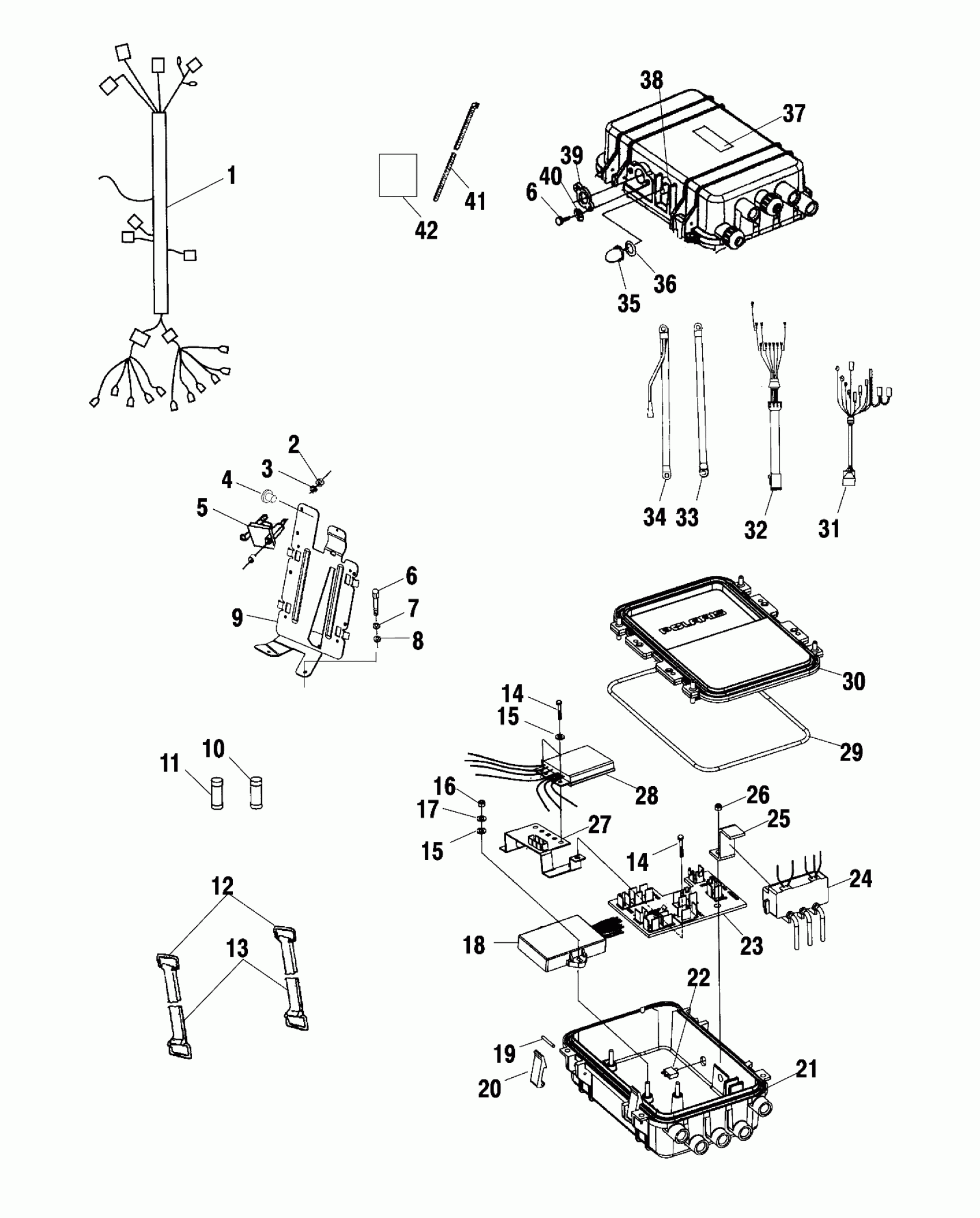

Polaris GENESIS - W005099D ELECTRICAL BOX - W005099D (4955775577B013) Diagram

#

Description
Price

1

HARNESS-MAIN,GENESIS Substituted by 2460902

2460868

$279.35

2

NUT, 6 MM.,S.S.(10)

7546705

$4.76

3

WASHER(10)

7555882

$2.06

4

BUMPER-RUBBER LTI 02592

5411821

$1.13

5

Solenoid, Starter (See Magneto Pg. C9, Ref. 14)

----

Unavailable

6

SCREW,1/4-20X1.0(10)

7517830

$2.70

6

SCREW,1/4-20X1.0(10)

7517830

$2.70

7

WASHER, LOCK, S.S.(10)

7555838

Unavailable

8

WASHER, FLAT, S.S.(10)

7555839

Unavailable

9

MOUNT,IGNITION BOX/EMM

1820749

$83.46

10

FUSE,(10)

4060111

Unavailable

11

FUSE,3AMP,AGW [No Longer Available]

4060161

Unavailable

12

HOOK,'D',SST/SS,(10)

5224472

Unavailable

13

STRAP,BATT.HOLD-DOWN

5411456

Unavailable

14

BOLT, S.S.(10)

7512042

Unavailable

14

BOLT, S.S.(10)

7512042

Unavailable

15

WASHER, FLAT, S.S.(10)

7555837

$1.59

15

WASHER, FLAT, S.S.(10)

7555837

$1.59

16

NUT, SS.(10)

7547036

$1.59

17

WASHER, LOCK(10)

7552615

Unavailable

18

Controller (See Magneto Pg. C9, Ref. 12)

----

Unavailable

19

PIN,LATCH,ELEC.BOX

5333544

$10.46

20

LATCH,ELEC.BOX Substituted by 2620120

5432503

$102.38

21

ELECTRICAL BOX,IGNITION,ASM. (Incl. 19,20,29,30)

2632137

Unavailable

22

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

23

BOARD,ASM,TERMINAL

2410201

Unavailable

24

Coil, Ignition, Triple (See Magneto Pg. C9, Ref. 13)

----

Unavailable

25

BRKT,COIL,3CYL

5244369

Unavailable

26

NUT,NYLOK,SS

7547061

$0.56

27

STRAP,GROUNDING,E-BOX Substituted by 5244646

5244335

Unavailable

28

REGULATOR,1 BUTTON S/S LR Substituted by 4010648

4010304

Unavailable

29

SEAL, E-BOX Substituted by 2620120

5432569

Unavailable

30

COVER-ELECTRICAL BOX Substituted by 2631998

5433119

Unavailable

31

HARNESS-9 WIRE STATOR,3CYL Substituted by 2460875

2460717

$81.75

32

HARNESS-RVS 12IN-6W [No Longer Available]

2460796

Unavailable

33

CABLE-SOLENOID/STARTER

4010237

Unavailable

34

CABLE,BATT.,SOLENOID 45"

4010358

Unavailable

35

BOOT,THREADED,RED

7080461

$13.99

36

O-Ring

5411491

$1.03

37

DECAL,WARN,HI.VOLT.

7073713

Unavailable

38

DECAL-"RESET ELEC SYSTEM"

7077691

Unavailable

39

PLATE,STATOR,1 HOLE

5432574

$6.59

40

WASHER(10)

7555836

$3.99

41

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

42

ANCHOR, CABLE TIE(10)

7080464

Unavailable
