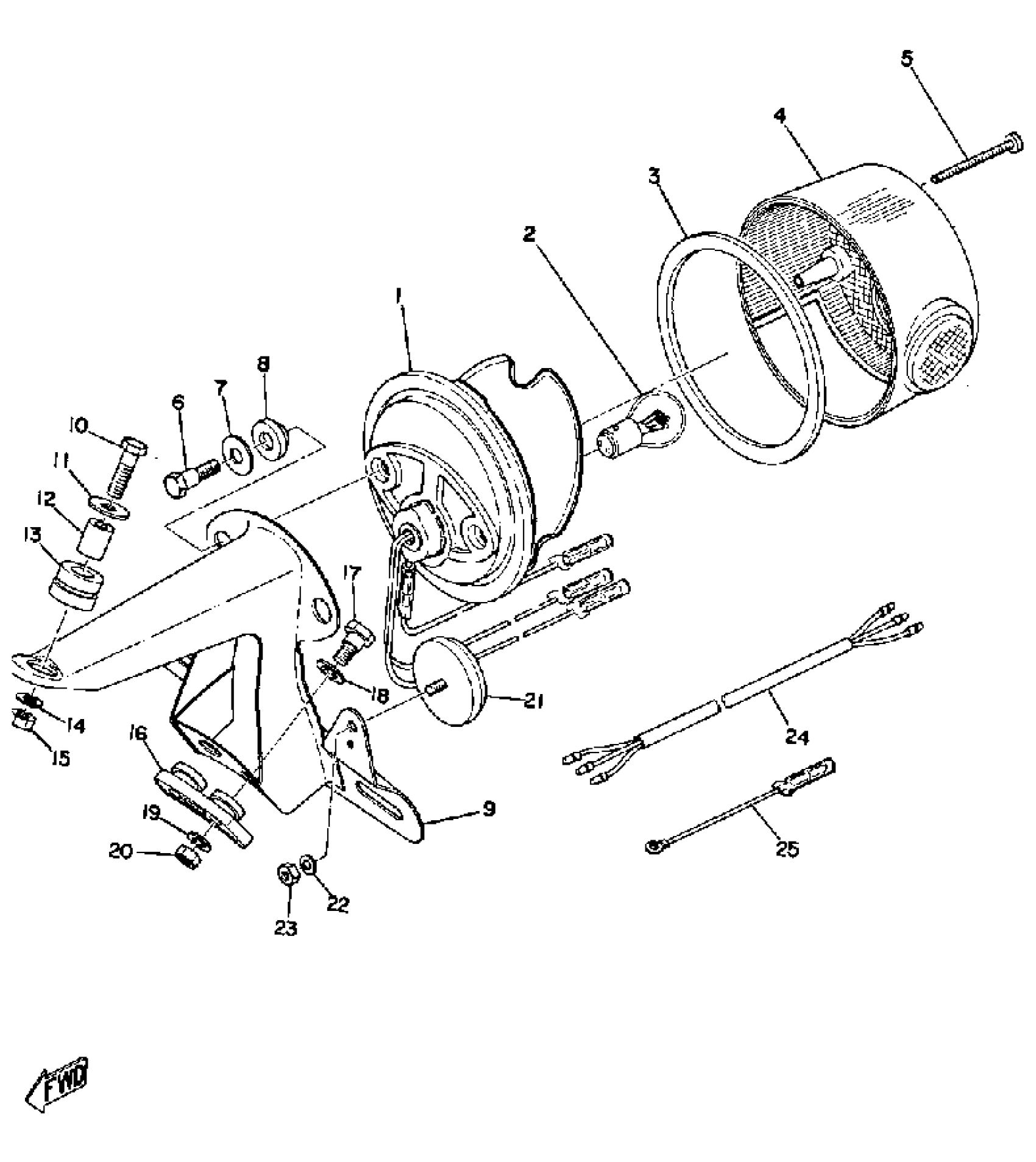

Yamaha G6S (G6S) 1970 TAIL LAMP (G6SB-G7S) Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

(275-84510-61-00)

Unavailable

1

BASE, TAILLIGHT

(275-84511-61-00)

Unavailable

2

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

3

. GASKET, LENS

275-84523-60-00

Unavailable

4

LENS, TAILLIGHT

(275-84521-60-00)

Unavailable

5

SCREW, PAN HEAD

98507-04050-00

$3.02

6

SCREW

(479-84526-00-00)

Unavailable

7

WASHER, SPECIAL

2H7-84754-00-00

$10.99

8

. DAMPER

275-84527-60-00

Unavailable

9

. BRACKET, LICENSE

341-84751-61-93

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

WASHER

90209-06012-00

$5.60

12

COLLAR (J10)

90387-06026-00

$8.49

13

GROMMET 839774310000

90480-14023-00

$7.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

DAMPER

214-84553-01-00

Unavailable

17

BOLT 168217380000

90109-06017-00

Unavailable

18

WASHER, PLAIN

92990-08200-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

REFLECTOR, FRONT 1

(278-85111-00-00)

Unavailable

22

. WASHER, PLAIN

92990-05200-00

Unavailable

23

NUT, HEXAGON (663)

95380-05600-00

Unavailable

24

CORD, TAILLIGHT

(293-84717-00-00)

Unavailable

25

WIRE, EARTH LEAD

(164-84756-60-00)

Unavailable
