1970 Yamaha G6S (G6S) Shifter A Diagram

← All diagrams

Find the part on the Shifter A diagram for your 1970 Yamaha G6S (G6S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

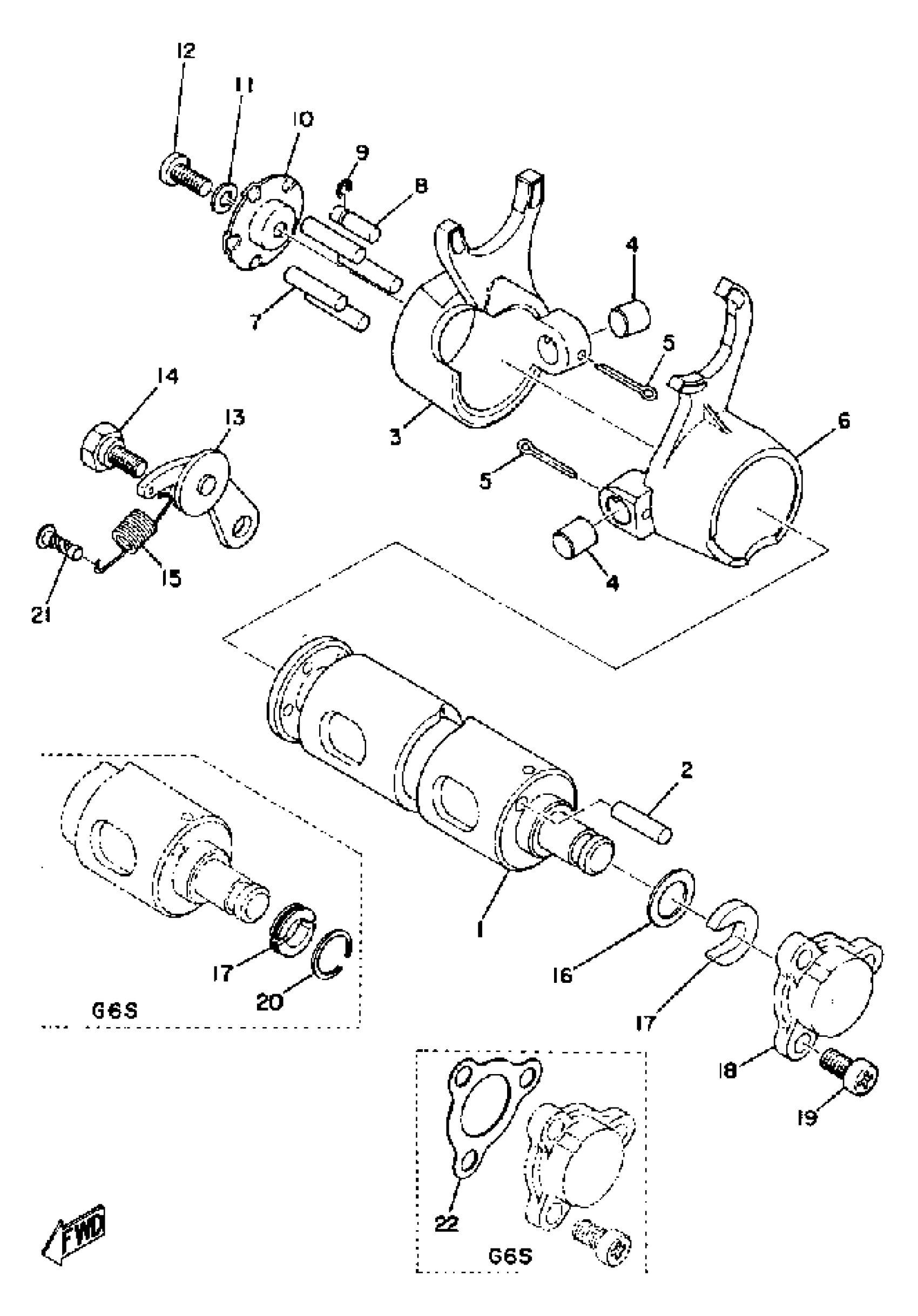

1970 Yamaha G6S (G6S) Shifter A Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFTER ASSEMBLY

(166-18500-63-00)

1
Out of stock

1

CAM, SHIFT

(166-W1854-63-00)

1
Out of stock

2

. UNAVAILABLE IN PRICE BOOK

93065-20043-00

1
Out of stock

3

FORK, SHIFT 2

(164-18512-00-00)

1
Out of stock

4

PIN, STRAIGHT

(90250-10020-00)

1
Out of stock

5

PIN, COTTER

91490-25020-00

1

$2.94

In stock

6

FORK, SHIFT 1

(164-18511-00-00)

1
Out of stock

7

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

8

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

1
Out of stock

9

. CIRCLIP, E-TYPE

93430-03014-00

1
Out of stock

10

PLATE, SIDE

164-18561-00-00

1

$5.42

In stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

13

STOPPER LEVER ASSY

132-18140-01-00

1

$14.20

In stock

14

BOLT

90109-06239-00

1

$5.77

In stock

15

SPRING, TENSION (260)

90506-09112-00

—
Out of stock

16

WASHER PLATE 164185720000

90201-12166-00

—

$6.29

In stock

17

HOLDER, SHIFT CAM

164-18571-01-00

—

$8.28

In stock

17

HOLDER, SHIFT CAM

307-18571-00-00

1
Out of stock

18

PLUG, BLIND SHIFT CAM

164-18589-00-00

—

$7.83

In stock

19

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

20

CIRCLIP

93440-15012-00

—
Out of stock

21

HOOK, SPRING

132-16346-00-00

—
Out of stock

22

GASKET, PLUG BLIND

4EG-18579-00-00

—

$6.58

In stock
← Rear ARM - Chain Case Shifter B →
