1970 Yamaha G6S (G6S) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1970 Yamaha G6S (G6S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

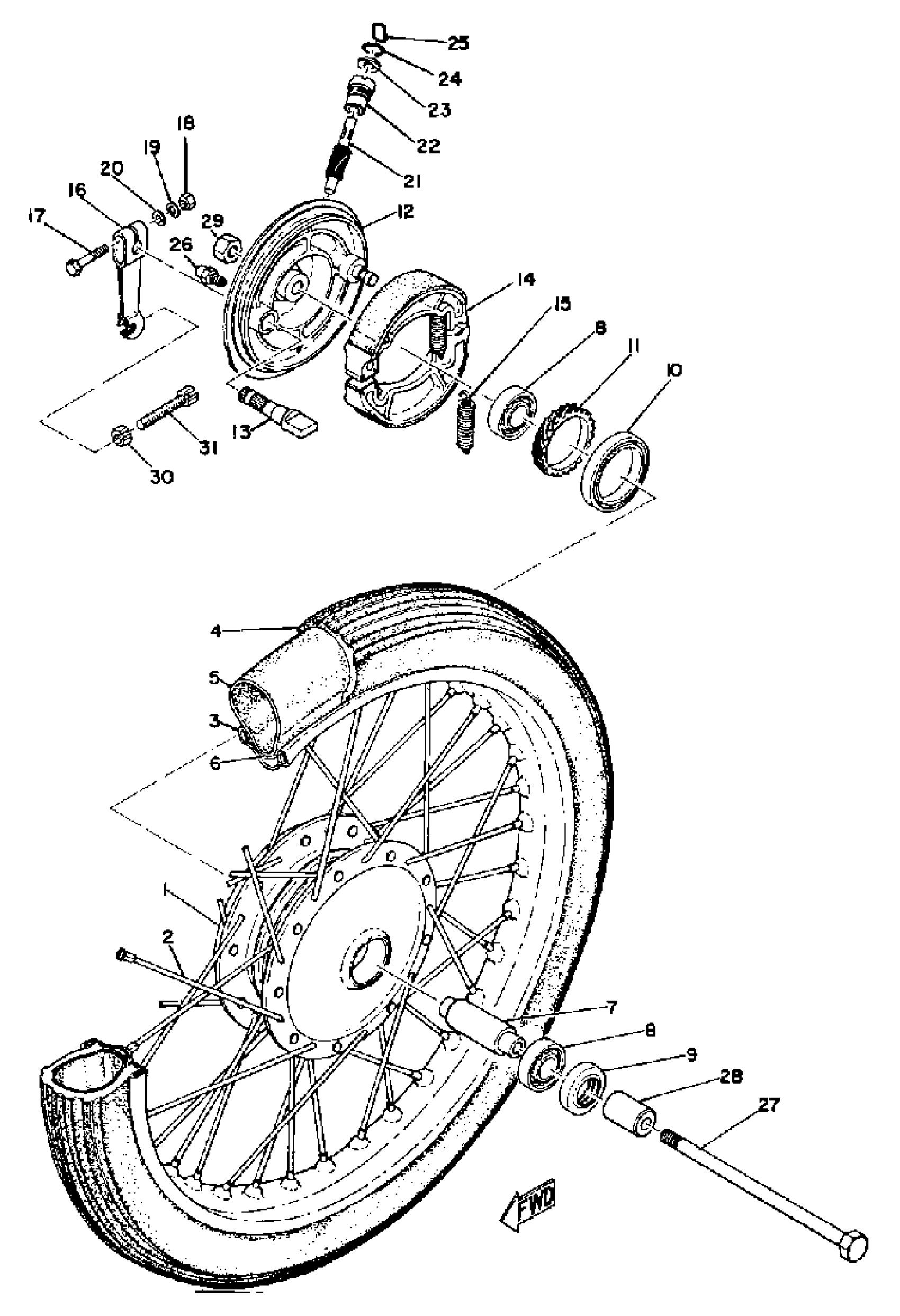

1970 Yamaha G6S (G6S) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(109-25111-00-35)

1
Out of stock

2

SPOKE SET, FRONT

(109-25104-00-00)

1
Out of stock

3

RIM 1.40X17

(94414-17003-00)

1
Out of stock

4

2.50-17 IRC

(94125-17314-00)

1
Out of stock

5

TUBE

(94225-17082-00)

1
Out of stock

6

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

1
Out of stock

7

SPACER, BEARING

(102-25117-00-00)

1
Out of stock

8

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1

$21.28

In stock

9

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

10

OIL SEAL, OS-TYPE

93107-42001-00

1
Out of stock

11

GEAR, DRIVE

(109-25135-00-00)

1
Out of stock

12

BRAKE SHOE PLT ASSEMBLY

(394-25120-00-38)

1
Out of stock

13

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

14

BRAKE SHOE KIT

4KN-W253E-11-00

1

$22.40

In stock

15

SPRING, TENSION (566).

90506-16150-00

1

$6.98

In stock

16

LEVER, CAMSHAFT 1

109-25155-00-00

1
Out of stock

17

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

21

GEAR, METER

(141-25138-00-00)

1
Out of stock

22

BUSHING

109-25136-00-00

—

$8.78

In stock

23

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

24

O-RING (26H)

93210-14579-00

—

$5.69

In stock

25

RING, STOP

102-25137-00-00

—
Out of stock

26

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

27

BOLT

(90109-10086-00)

1
Out of stock

28

COLLAR (128-25183-00)

90387-10081-00

—

$7.25

In stock

29

NUT(3BM)

95314-10600-00

—

$1.74

In stock

30

NUT (109-26344-00)

90179-06143-00

—

$6.68

In stock

31

BOLT (109-26345-00)

90123-06011-00

—

$14.12

In stock
