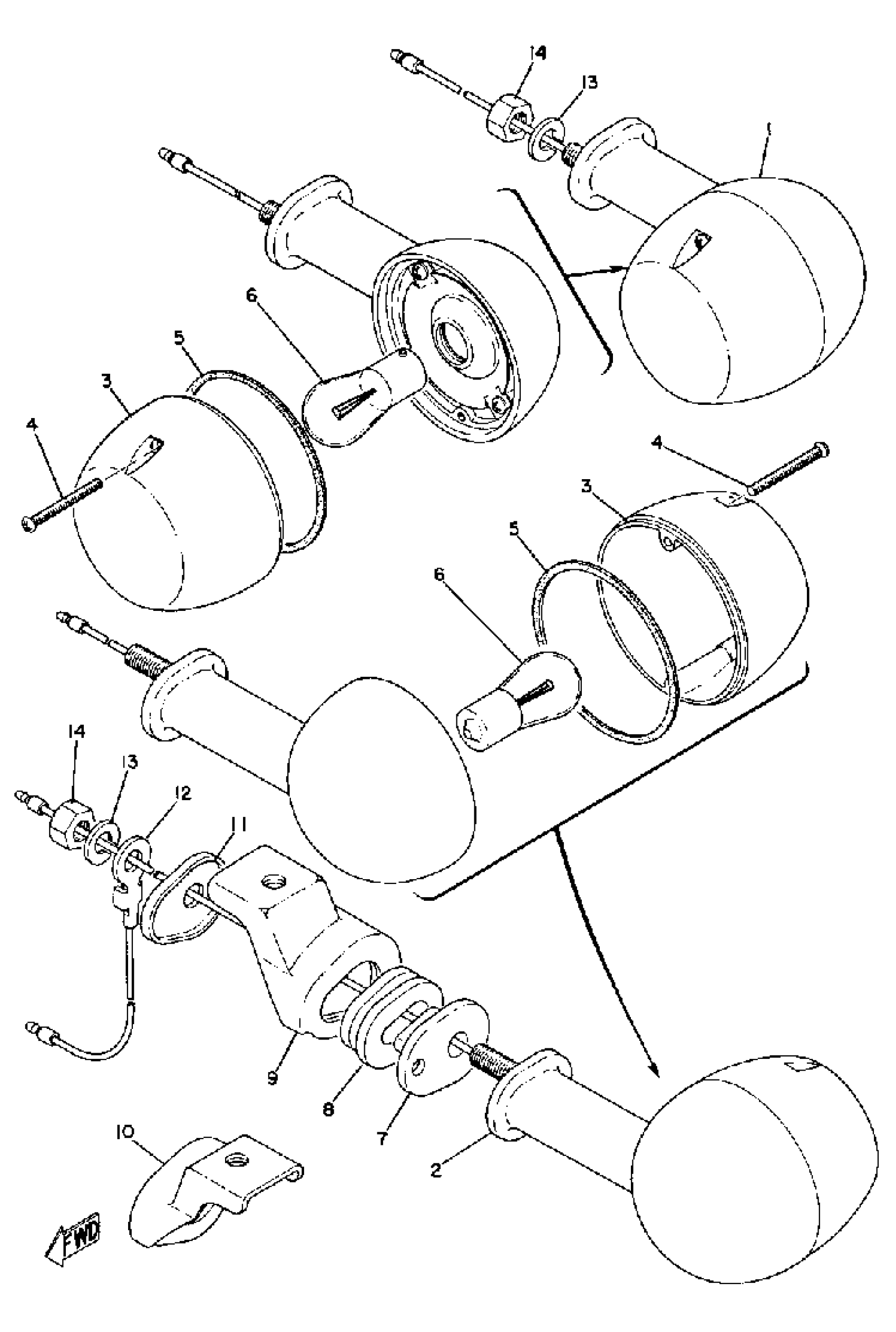

Yamaha G6S (G6S) 1970 FLASHER LAMP Diagram

#

Description

Price

1

FRT FLSHR LITE ASSEMBLY

(232-83310-61-93)

Unavailable

1

FRT FLSHR LITE ASSEMBLY

232-83320-62-93

Unavailable

2

R FLSHR LITE ASSEMBLY

(232-83330-65-93)

Unavailable

2

R FLSHR LITE ASSEMBLY

(232-83340-66-93)

Unavailable

3

LENS, FLASHER

183-83312-70-00

Unavailable

3

. LENS, REAR RED FLASHER

211-83332-75-00

Unavailable

4

SCREW, LENS FITTING (3X32)

183-83333-71-00

$8.99

5

GASKET,FLASHER LANS

183-83313-70-00

Unavailable

6

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

7

COLLAR, FLASHER 1

256-83316-00-00

Unavailable

8

DAMPER, FLASHER 1

256-83321-00-00

Unavailable

9

STAY, FLASHER

(232-83368-00-00)

Unavailable

10

STAY, FLASHER

(232-83369-00-00)

Unavailable

11

WASHER, SPEC''L SHAP

90209-08028-00

Unavailable

12

WIRE, EARTH LEAD 1

(232-83354-00-00)

Unavailable

13

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

14

NUT(6L2)

95333-08600-00

Unavailable
