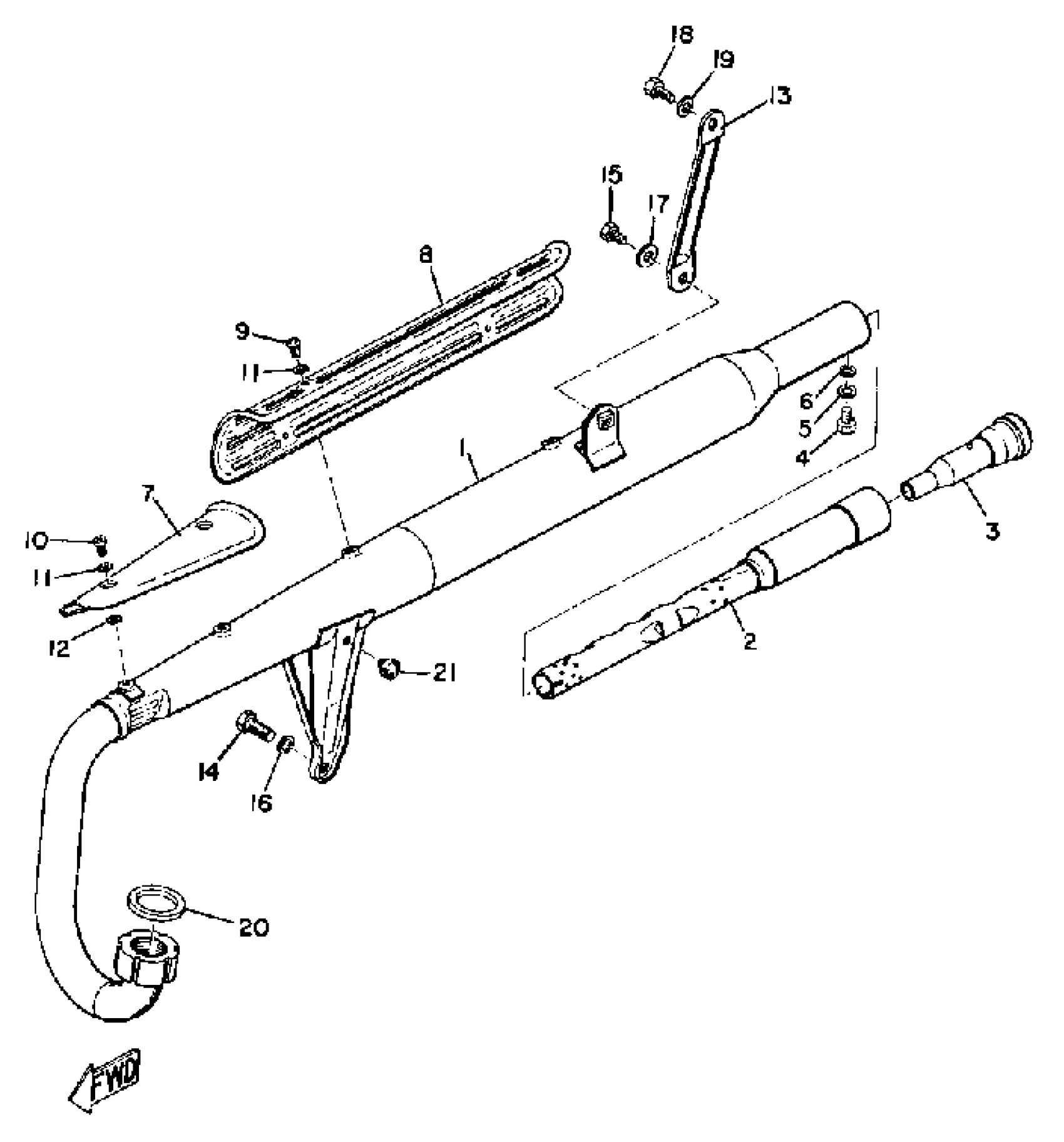

Yamaha G6S (G6S) 1970 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(232-14610-30-00)

Unavailable

2

SILENCER, EXHAUST

(178-14753-00-00)

Unavailable

3

PIPE, OUTLET

(234-14752-30-00)

Unavailable

4

BOLT(3JP)

97017-06010-00

$3.76

5

WASHER, SPRING

92995-06100-00

Unavailable

6

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

7

PROTECTOR, MUFF 1

(220-14718-10-00)

Unavailable

8

PROTECTER, MUFF 2

(220-14728-10-00)

Unavailable

9

SCREW, BIND(2TV)

98980-06008-00

$3.19

10

SCREW, BIND(1JK)

98980-06010-00

$9.49

11

WASHER, PLATE(3MB)

90202-05187-00

$1.38

12

WASHER, PLATE(3MT)

90202-05188-00

$8.49

13

STAY, MUFFLER 1

(220-14771-10-00)

Unavailable

14

BOLT(JA9)

90101-08691-00

$4.29

15

BOLT(JA9)

90101-08691-00

$4.29

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

WASHER, PLAIN

92990-08200-00

Unavailable

18

BOLT

(90101-10054-00)

Unavailable

19

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

20

GASKET, EXHAUST PIPE

3MT-14613-00-00

Unavailable

21

STOPPER

(220-14768-10-00)

Unavailable
