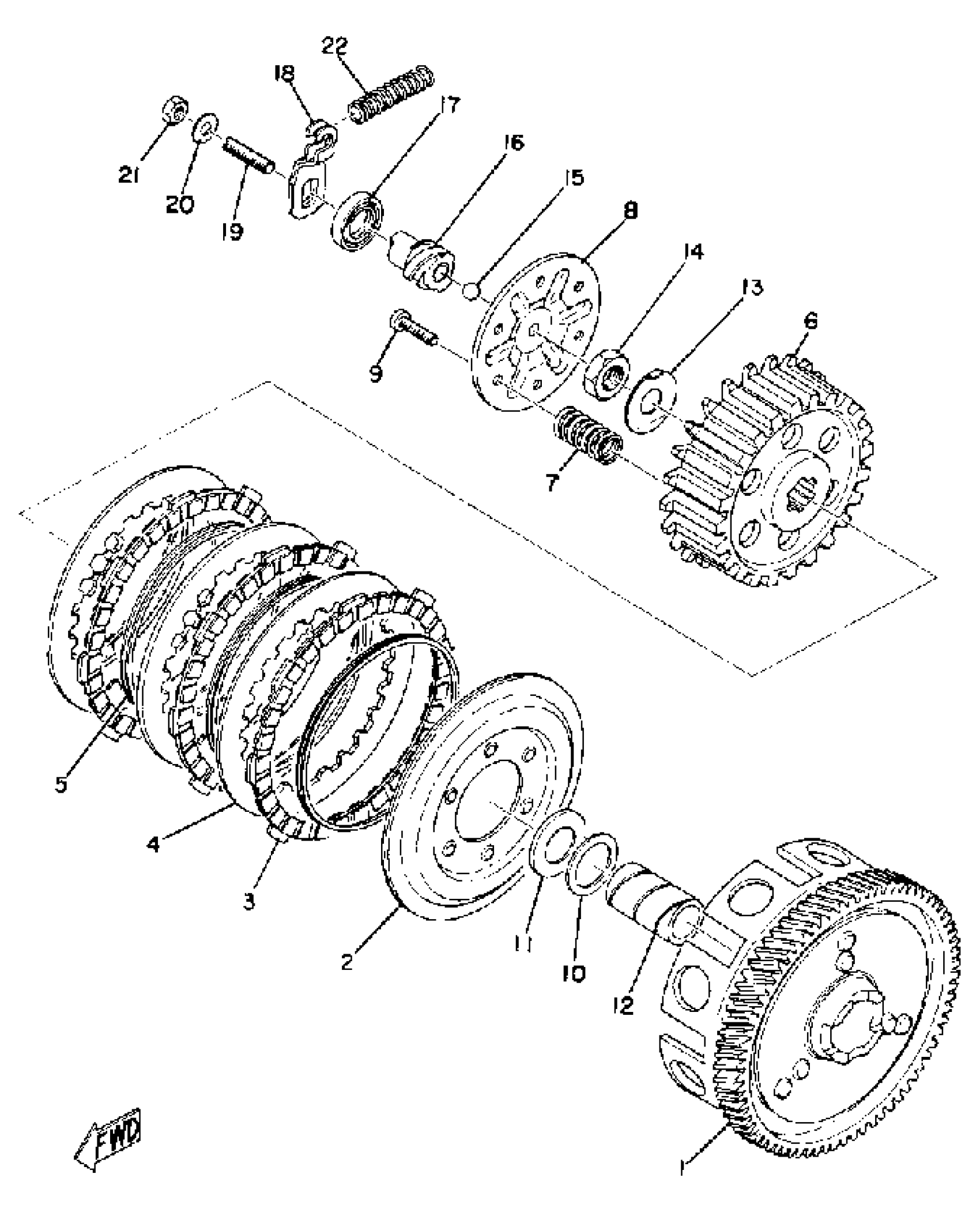

Yamaha G6S (G6S) 1970 CLUTCH Diagram

#

Description
Price

1

PRI DRVN GEAR

(180-16150-02-00)

Unavailable

2

PLATE, PRESSURE 2

(131-16352-01-00)

Unavailable

3

PLATE, FRICTION

4EU-16321-00-00

$25.99

4

UNAVAILABLE IN PRICE BOOK

311-16324-00-00

Unavailable

5

RING, CUSHION

131-16367-00-00

Unavailable

6

BOSS, CLUTCH

(180-16371-01-00)

Unavailable

7

SPRING COMPRESSION180163330000

90501-20126-00

Unavailable

8

PLATE, PRESSURE 1

(122-16351-90-00)

Unavailable

9

SCREW, PAN HEAD

98580-05020-00

Unavailable

10

WASHER, PLATE

90201-23315-00

Unavailable

11

PLATE, THRUST

122-16164-00-00

$7.99

12

SPACER (517)

90560-17146-00

Unavailable

13

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

14

NUT, HEXAGON 1371637700

90170-12060-00

$9.49

15

BALL

93501-04011-00

$8.49

16

SCREW, PUSH

164-16341-01-00

Unavailable

17

OIL SEAL, SO-TYPE

93104-15009-00

Unavailable

18

LEVER, PUSH

(164-16342-01-00)

Unavailable

19

BOLT, SET

(90113-06012-00)

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

NUT(650)

95380-06700-00

Unavailable

22

SPRING, COMPRESSION

(90501-08040-00)

Unavailable
