Partiron

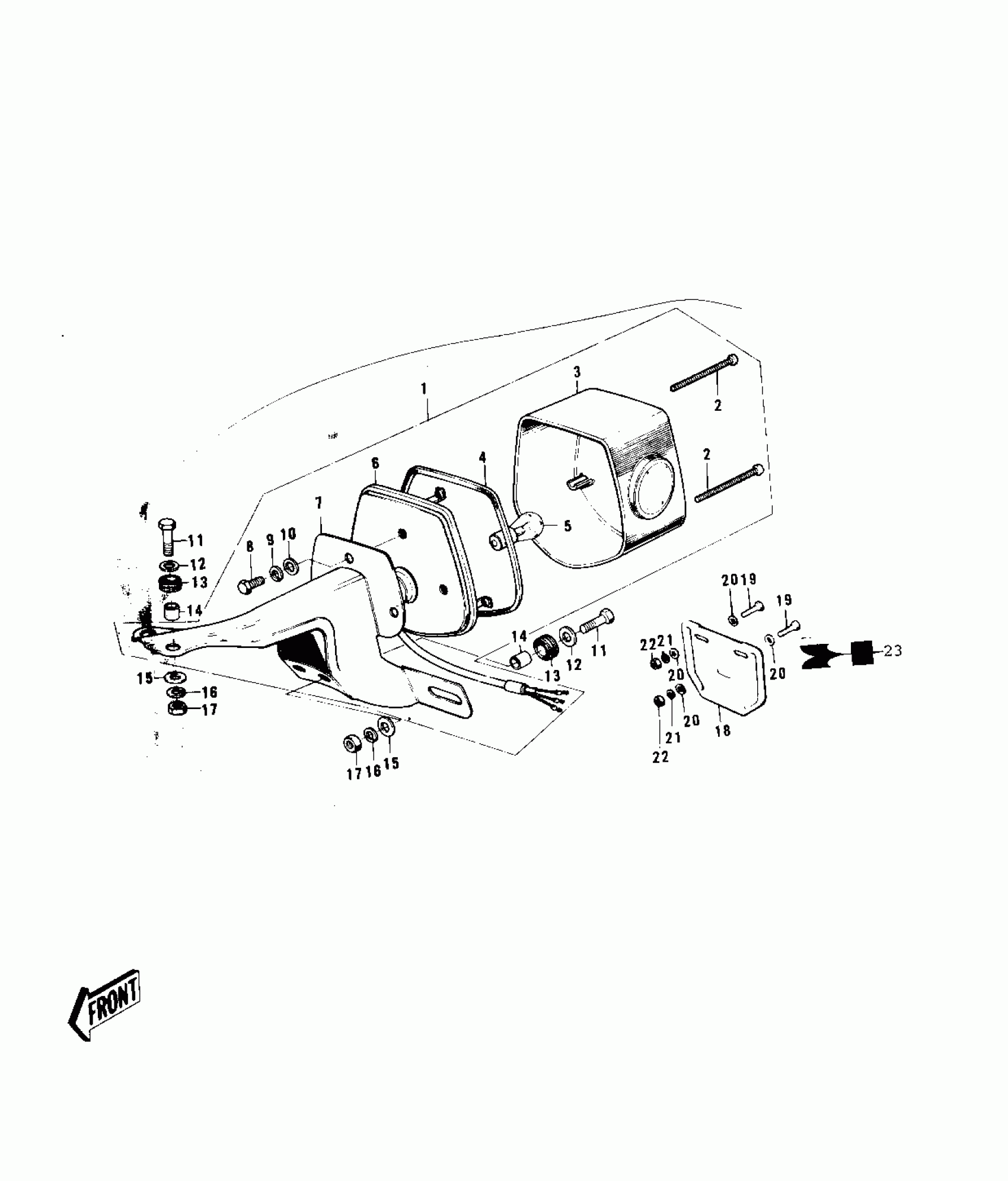

Kawasaki G3SS-D TAILIGHT ('74-'75) Diagram

#

Description
Price

1

LAMP ASSY,TAIL,BLACK

23024-049-10

Unavailable

2

SCREW

220R0455

$4.44

3

LENS,TAIL LAMP

23026-028

$57.72

4

GASKET,TAIL LAMP LENS

23028-019

Unavailable

5

BULB,6V 32/3CP

92069-074

Unavailable

6

BODY COMP TAIL LAMP

23027-1018

Unavailable

7

BKT,LICENSE PLT,BLAC

23036-030-10

$94.51

8

BOLT-UPSET 6X14

112B0614

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

WASHER PLAIN 6MM

411B0600

Unavailable

11

BOLT 6X22

112B0622

Unavailable

12

WASHER,6.5X20X1.6

92022-125

$1.08

13

DAMPER RUBBER

92075-076

$3.80

14

COLLAR,6.8X10X8.5

92027-129

$3.81

15

WASHER PLAIN 6MM

411B0600

Unavailable

16

WASHER SPRING 6MM

461F0600

Unavailable

17

NUT 6MM

311B0600

Unavailable

18

BRACKET,LICENSE PLATE

11034-1117

Unavailable

19

BOLT-UPSET,6X20

112G0620

Unavailable

19

BOLT-UPSET,6X20

112G0620

Unavailable

20

WASHER PLAIN 6MM

411B0600

Unavailable

21

WASHER SPRING 6MM

461F0600

Unavailable

22

NUT 6MM

311B0600

Unavailable

23

EMBLEM,LICNSE PLT BKT

56018-176

Unavailable
