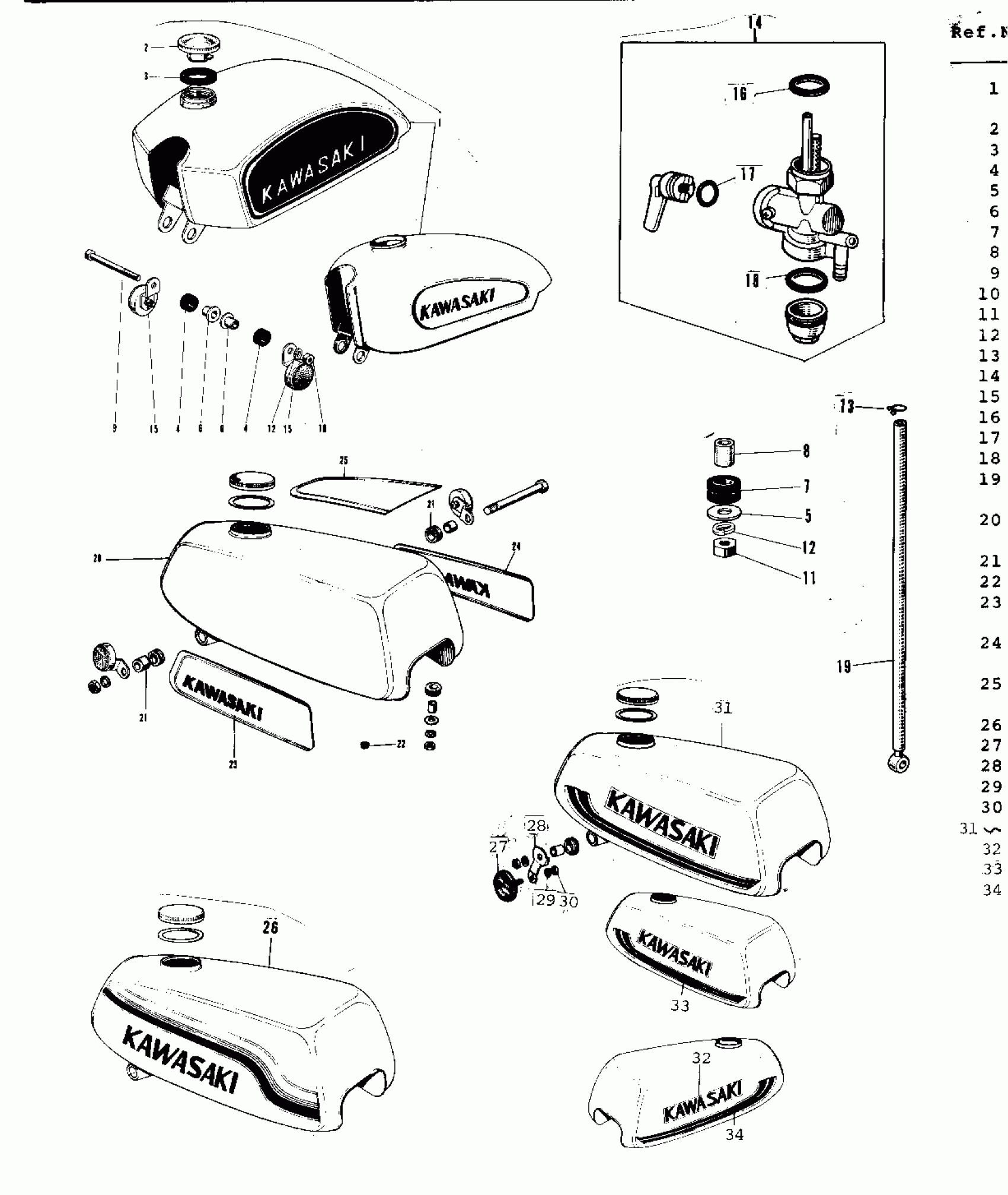

Kawasaki G3SS-D FUEL TANK ('69-'73) Diagram

#

Description
Price

1

TANK-FUEL,P.ORANGE

51001-060-34

Unavailable

2

CAP ASSY, LOCKING

51048-006

Unavailable

3

GASKET FUEL TANK CAP

51059-003

$5.46

4

DAMPER RUBB TANK FRNT

92075-013

$3.76

5

WASHER,8X26X2.3

92022-1564

$3.29

6

COLLAR,FUEL TANK FITT

92027-1134

$7.83

7

DAMPER RUBB TANK REAR

92075-030

Unavailable

8

COLLAR,8.8X12X17

92027-034

Unavailable

9

BOLT, HEX HEAD, 8X90

115B0890

Unavailable

10

NUT,8M/M

311N0800

Unavailable

11

NUT,8MM

311B0800

Unavailable

12

WASHER SPRING 8MM

461F0800

Unavailable

13

CLAMP,TUBE

92037-010

$3.04

14

TAP-ASSY,FUEL

51023-1123

$73.52

15

REFLECTOR REFLEX

28001-004

$6.59

16

GASKET FUEL COCK CUP

51037-008

Unavailable

17

'O' RING FUEL COCK

92065-062

Unavailable

18

GASKET,FUEL TAP JOINT

11009-1567

$5.56

19

PIPE-FUEL

51044-031

Unavailable

19

PIPE-FUEL

51044-046

Unavailable

20

TANK-FUEL,ORANGE

51001-067-55

$185.11

21

COLLAR,8.8X12X14

92027-012

$4.67

22

GROMMET,PIPE

92071-038

Unavailable

23

EMBLEM-L.H,PURPLE

56013-028-61

$26.47

24

EMBLEM-R.H,PURPLE

56014-022-61

$21.98

25

EMBLEM-TOP,PURPLE

56027-031-61

$11.81
