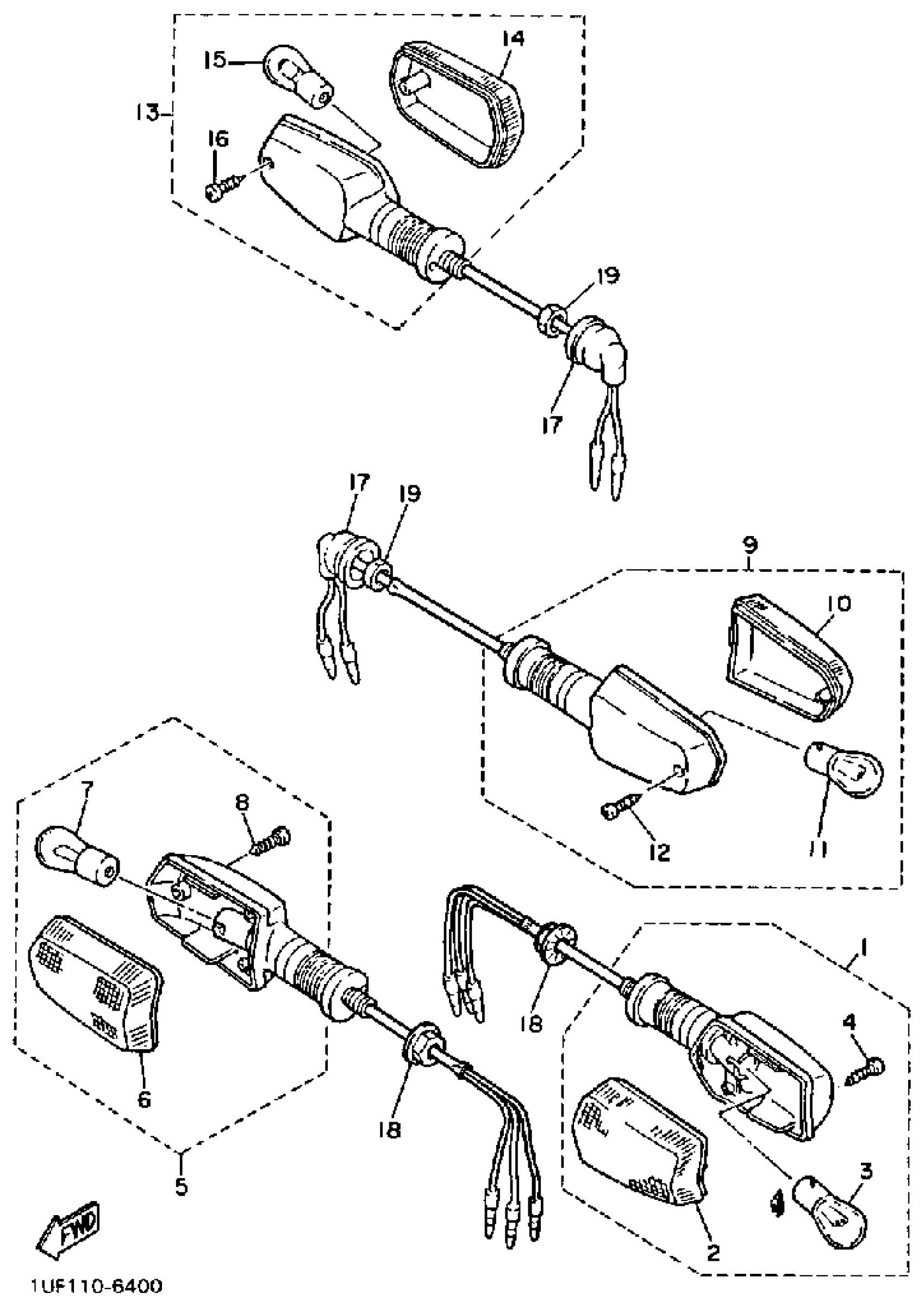

Yamaha FZX700SC (FAZER CA) 1986 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

1UF-83310-00-00

$135.99

2

LENS, FLASHER

51L-83332-01-00

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

SCREW, PAN TAP.2

97707-40520-00

$9.49

5

FRONT FLASHER LIGHT ASSY 2

1UF-83320-00-00

$135.99

6

LENS, FLASHER 2

51L-83342-01-00

$11.99

7

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

8

SCREW, PAN TAP.2

97707-40520-00

$9.49

9

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

Unavailable

10

LENS, FLASHER 2

51L-83342-01-00

$11.99

11

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

12

SCREW, PAN TAP.2

97707-40520-00

$9.49

13

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

$134.99

14

LENS, FLASHER

51L-83332-01-00

Unavailable

15

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

16

SCREW, PAN TAP.2

97707-40520-00

$9.49

17

CAP

18G-83365-00-00

Unavailable

18

NUT(3GG)

90179-12588-00

Unavailable

19

NUT, HEXAGON

95337-12600-00

Unavailable
