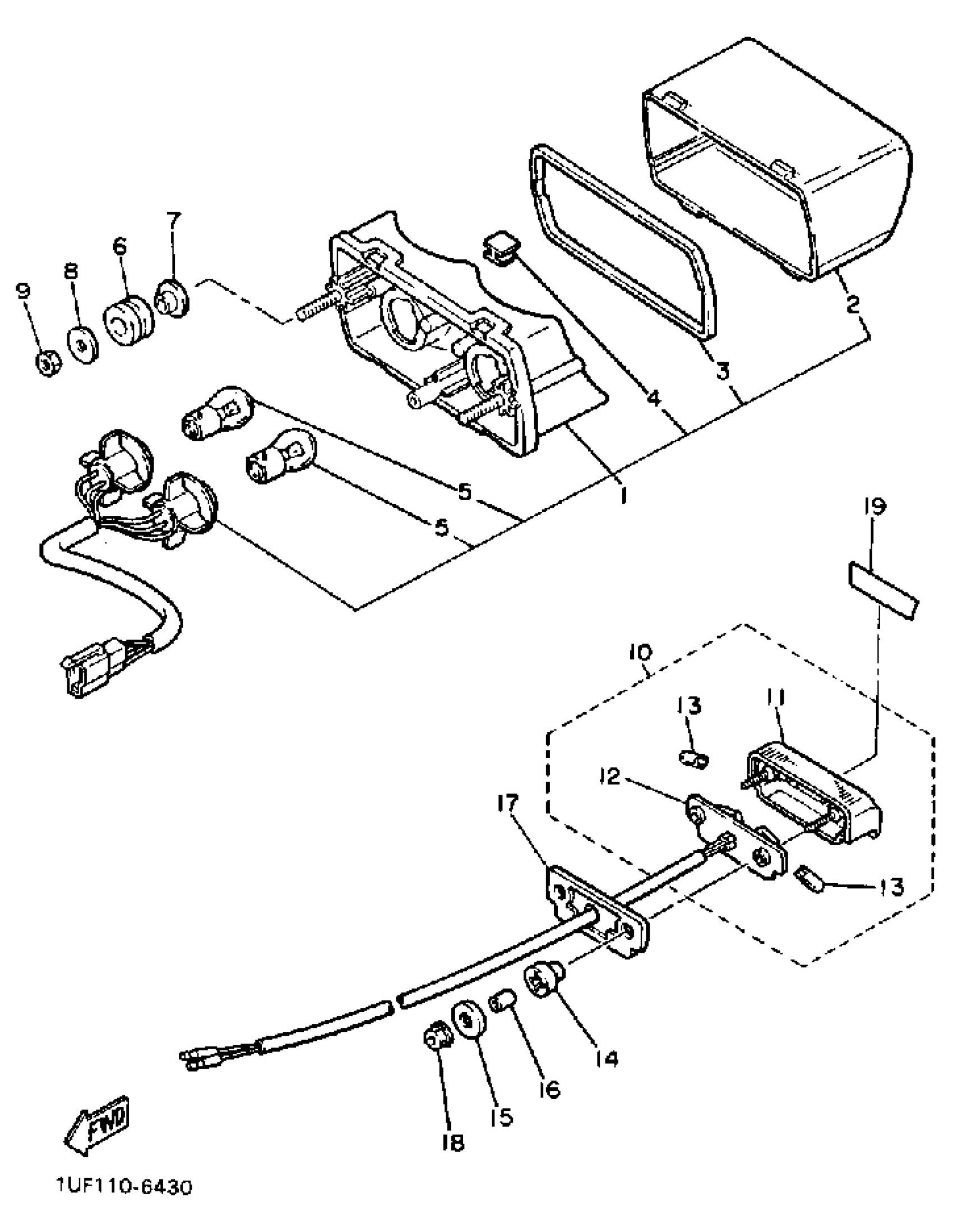

Yamaha FZX700SC (FAZER CA) 1986 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

1UF-84710-A0-00

Unavailable

2

. LENS, TAILLIGHT

1FN-84721-E0-00

Unavailable

3

GASKET, TAIL LENS

47X-84723-00-00

Unavailable

4

. GROMMET

1A2-84718-40-00

Unavailable

5

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

6

GROMMET (4L0)

90480-18276-00

$8.49

7

COLLAR (6G1)

90387-06M52-00

Unavailable

8

WASHER, PLATE (J10)

90201-06697-00

$8.49

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

LICENSE LITE ASSY

1UF-84745-A0-00

Unavailable

10

LICENCE LIGHT UNIT ASSY

4GY-84745-01-00

Unavailable

11

. BODY, LICENSE LIGHT

2AX-84749-00-00

Unavailable

11

. BODY, LICENCE LIGHT

3F9-84749-00-00

Unavailable

12

. BASE, LICENSE LIGHT

1UF-84741-00-00

Unavailable

12

BASE, LICENSE LIGHT

(3G1-84741-00-00)

Unavailable

13

. BULB, METER 12V 38W

3F9-84744-00-XX

Unavailable

14

DAMPER

3F9-84553-00-00

Unavailable

15

WASHER, SPECIAL

3F9-84754-00-00

Unavailable

16

COLLAR(53Y)

90387-066H9-00

Unavailable

17

SEAT, BASE

3F9-84742-00-00

Unavailable

18

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

19

EMBLEM

31J-24786-00-00

Unavailable
