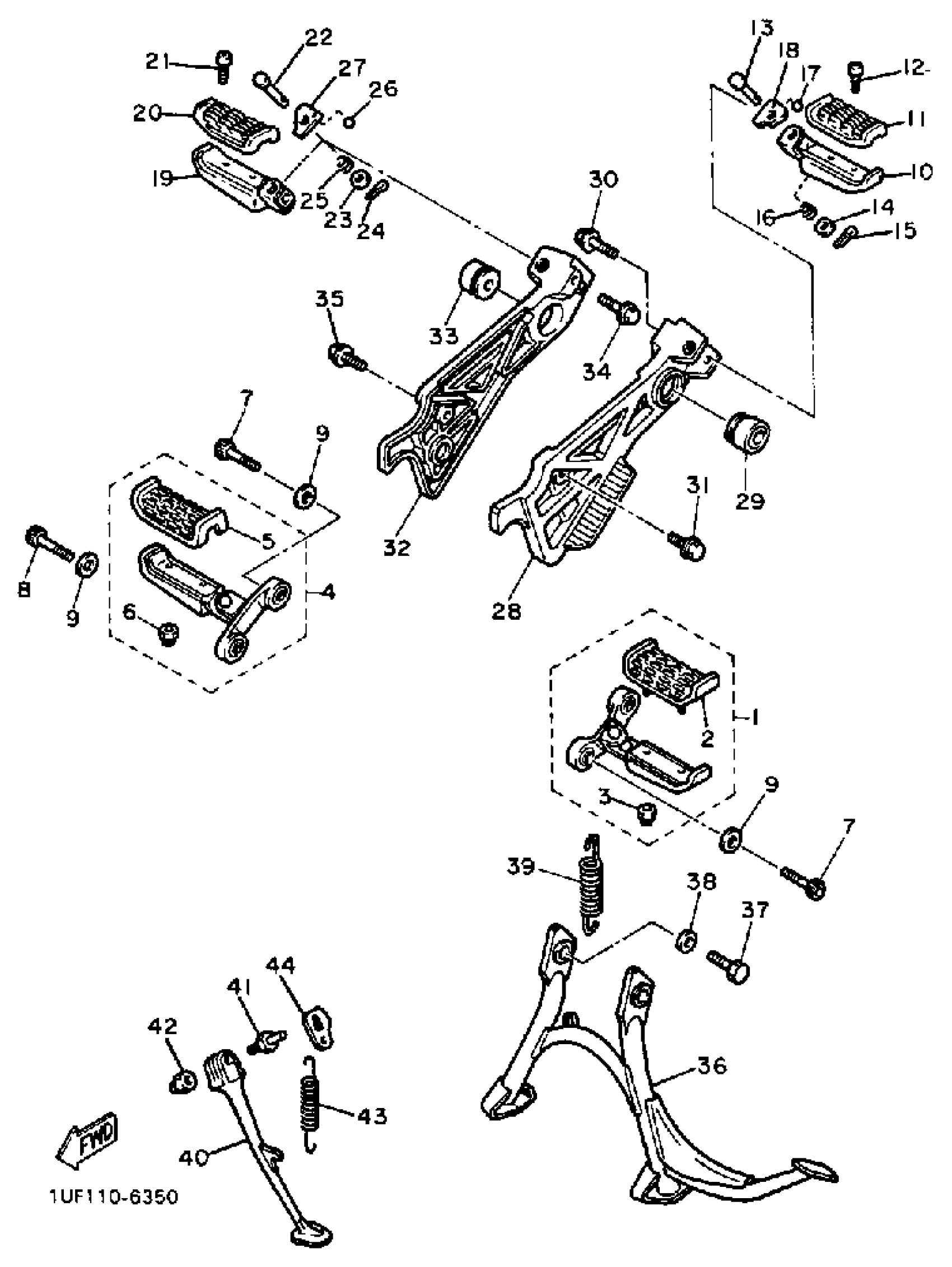

Yamaha FZX700SC (FAZER CA) 1986 STAND FOOTREST Diagram

#

Description
Price

1

FRT FOOTREST ASSEMBLY L

1UF-27410-00-00

Unavailable

2

COVER, FOOTREST

22N-27413-00-00

$48.99

3

NUT, SELF-LOCKING

95617-06100-00

$8.49

4

FRT FOOTREST ASSEMBLY R

1UF-27420-00-00

Unavailable

5

COVER, FOOTREST

22N-27413-00-00

$48.99

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

BOLT (3XF1)

90110-08220-00

$7.49

8

BOLT (3XF1)

90110-08221-00

Unavailable

9

WASHER(1UF)

90209-08295-00

$8.49

10

RR FOOTREST ASSEMBLY 1

29L-27430-00-00

Unavailable

11

. COVER, RR FOOTREST

22N-27433-00-00

Unavailable

12

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

13

PIN, CLEVIS (1M1)

91701-06042-00

$7.49

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

PIN, COTTER

91490-20025-00

$1.99

16

SPRING, COMPRESSION (29L)

90501-16761-00

Unavailable

17

BALL

93501-04011-00

Unavailable

18

WASHER, SPECIAL

33M-27437-00-00

Unavailable

19

RR FOOTREST ASSEMBLY 2

29L-27440-00-00

Unavailable

20

. COVER, RR FOOTREST

22N-27433-00-00

Unavailable

21

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

22

PIN, CLEVIS (1M1)

91701-06042-00

$7.49

23

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

24

PIN, COTTER

91490-20025-00

$1.99

25

SPRING, COMPRESSION (29L)

90501-16761-00

Unavailable

26

BALL

93501-04011-00

Unavailable

27

WASHER, SPECIAL

33M-27437-00-00

Unavailable

28

BRACKET 2

1UF-27442-00-38

Unavailable

29

DAMPER, MUFFLER

1UF-14737-00-00

Unavailable

30

BOLT, FLANGE(4GY)

95024-08025-00

Unavailable

31

BOLT, FLANGE

95817-10020-00

Unavailable

32

BRACKET 3

1UF-27443-00-38

Unavailable

33

DAMPER, MUFFLER

1UF-14737-00-00

Unavailable

34

BOLT, FLANGE(4GY)

95024-08025-00

Unavailable

35

BOLT, FLANGE

95817-10020-00

Unavailable

36

STAND, MAIN

1UF-27111-00-00

Unavailable

37

BOLT,HEXAGON

97017-10016-00

Unavailable

38

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

39

SPRING, TENSION (1T5)

90506-35149-00

Unavailable

40

STAND, SIDE

1UF-27311-00-R4

Unavailable

41

BOLT

90109-10473-00

Unavailable

42

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

43

SPRING, TENSION (5N8)

90506-29266-00

Unavailable

44

LINK, SIDE STAND

3VD-27315-00-00

Unavailable
