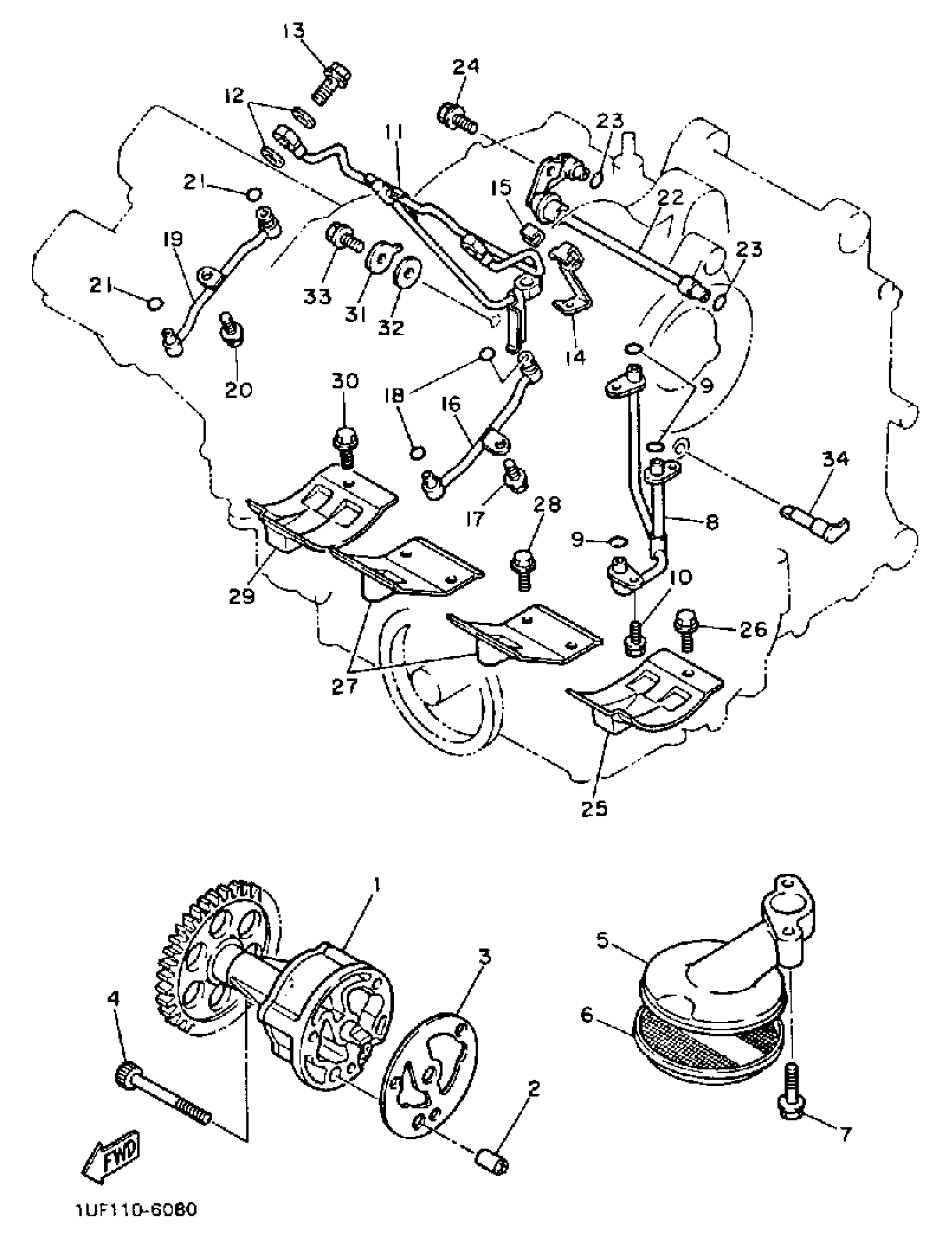

Yamaha FZX700SC (FAZER CA) 1986 OIL PUMP Diagram

OIL PUMP ASSEMBLY

1AE-13300-00-00

Unavailable

PIN, DOWEL(N04)

91808-12024-00

$4.24

GASKET, PUMP COVER

2GH-13329-00-00

Unavailable

BOLT,SOCKET

91317-06050-00

$3.88

HOUSING, STRAINER

3KS-13412-00-00

Unavailable

STRAINER, OIL

1AE-13411-00-00

Unavailable

BOLT, SMALL FLANGE

95027-06030-00

$3.98

PIPE, DELIVERY 1

1AE-13161-00-00

Unavailable

O-RING(1AE)

93210-06714-00

$5.60

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

DAMPER

1UF-13593-00-00

$7.99

GASKET (5R6)

90430-10171-00

$3.18

BOLT, UNION(3GM)

90401-10159-00

$11.49

DAMPER

1UF-13593-00-00

$7.99

GROMMET (1J7)

90480-05201-00

$8.49

PIPE, DELIVERY 3

(2GH-13181-00-00)

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

O-RING (26H)

93210-06632-00

Unavailable

PIPE, DELIVERY 1

1AA-13161-00-00

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

O-RING (26H)

93210-06632-00

Unavailable

PIPE, DELEVERY 5

1AE-1316E-00-00

Unavailable

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

PLATE, BUFFLE 1

2GH-15123-00-00

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

PLATE, BUFFLE 2

1AE-15124-00-00

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

PLATE, BUFFLE 3

(1AE-15133-00-00)

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

WASHER, PLATE

90201-060K2-00

Unavailable

GASKET

1AE-13475-00-00

Unavailable

BOLT, FLANGE

95817-06016-00

Unavailable

NOZZLE

1AE-13454-00-00

Unavailable
