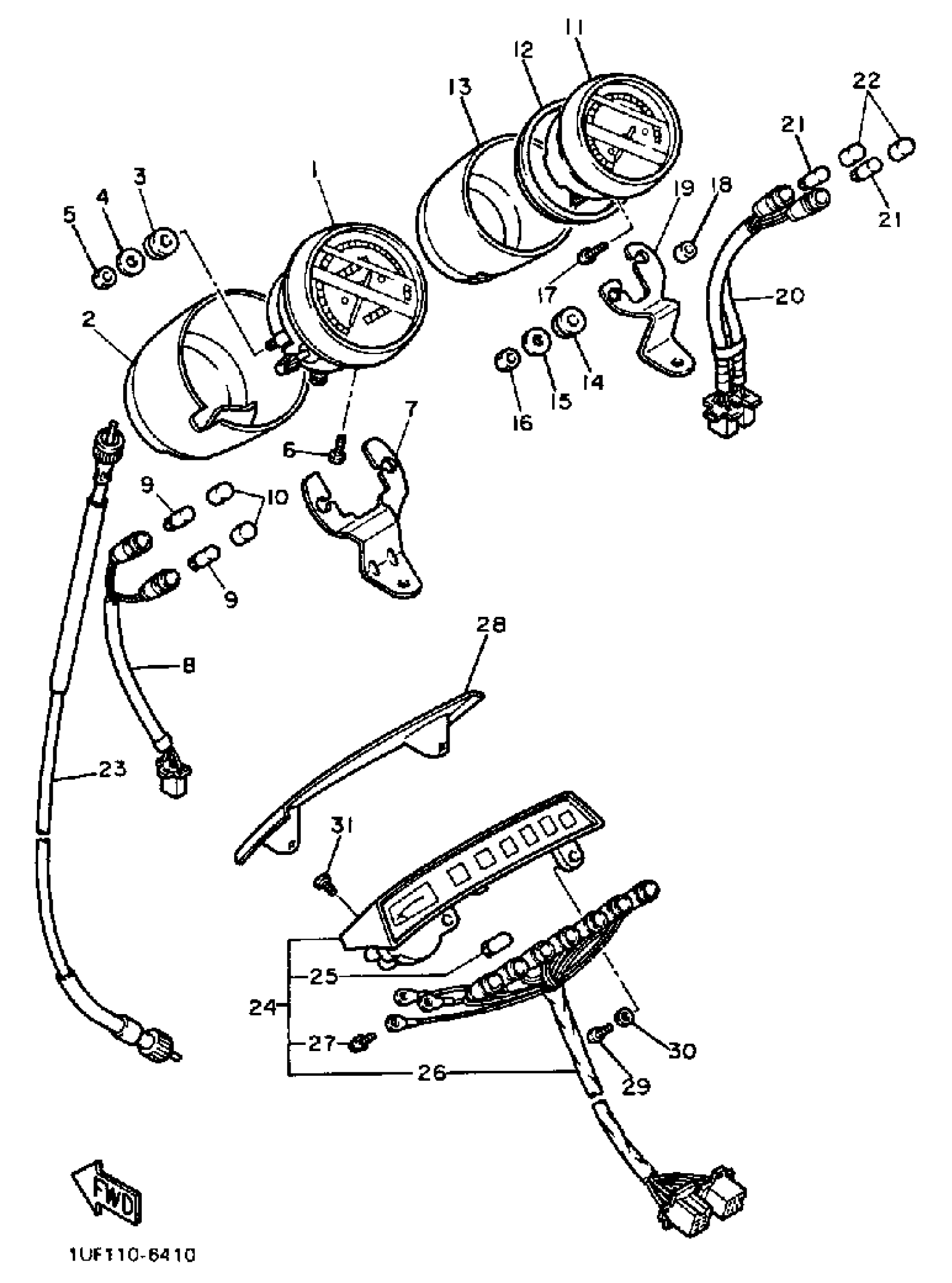

Yamaha FZX700SC (FAZER CA) 1986 METER Diagram
#
Description
Price
1
SPEEDOMETER ASY
2JE-8351A-G0-00
Unavailable
3
DAMPER
1FG-83523-00-00
Unavailable
4
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
7
BRACKET, METER
1UF-83519-00-00
Unavailable
8
SOCKET CORD ASSEMBLY
1UJ-83509-00-00
Unavailable
11
TACHOMETER ASSEMBLY
1UF-8354A-00-00
Unavailable
12
DAMPER
1UF-83541-00-00
Unavailable
13
COVER, TACHOMETER
1UF-83508-00-00
Unavailable
14
DAMPER
1FG-83523-00-00
Unavailable
15
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
18
DAMPER
29L-83523-00-00
Unavailable
19
BRACKET, TACHOMETER
1UF-83545-00-00
Unavailable
20
SOCKET ASSEMBLY
1UF-83586-00-00
Unavailable
23
SPEEDOMETER CABLE ASSY
16M-83550-01-00
Unavailable
24
PILOT LIGHT ASSEMBLY (1UF-83530-00-6G)
1UF-83530-00-00
Unavailable
26
. SOCKET CORD ASSEMBLY
1UF-83520-00-00
Unavailable
27
SCREW, WITH WASHER(36Y)
90159-03102-00
Unavailable
28
COVER, METER (1UF-83559-00-6G)
1UF-83559-00-00
Unavailable
29
SCREW
(97902-05120-00)
Unavailable
30
WASHER, PLAIN (646)
92990-05600-00
Unavailable
31
SCREW, BIND
98903-05010-00
Unavailable
