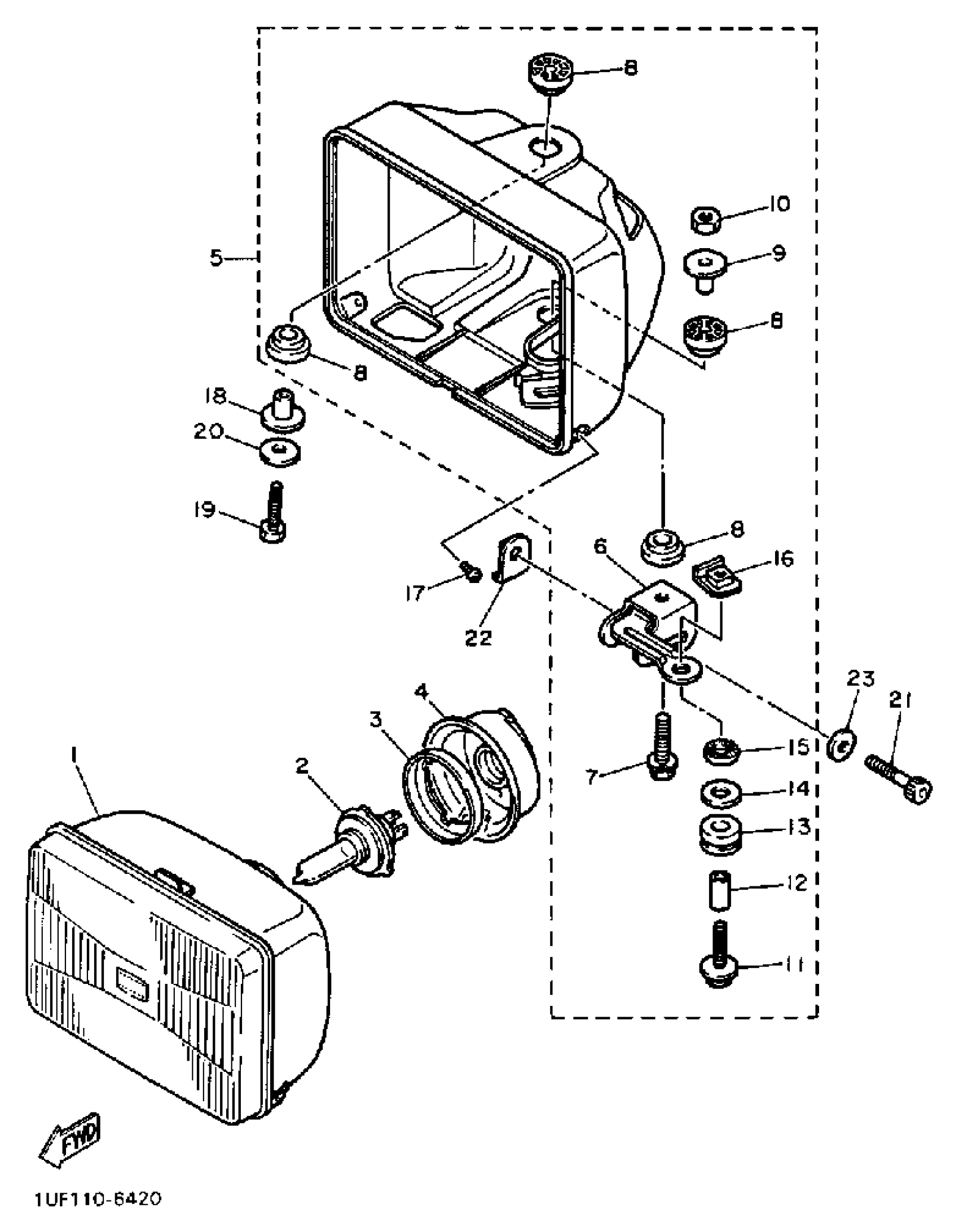

Yamaha FZX700SC (FAZER CA) 1986 HEADLIGHT Diagram

#

Description
Price

1

LENS ASSEMBLY

1UF-84320-00-00

Unavailable

2

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

3

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

4

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

5

BODY ASSEMBLY

1UF-84330-01-00

Unavailable

6

. STAY, HEADLIGHT 2

1UF-84319-00-00

Unavailable

7

. BOLT, SPECIAL

1UF-84337-00-00

Unavailable

8

. DAMPER, HEADLIGHT 1

1UF-84366-00-00

Unavailable

9

COLLAR, BODY FTNG

1UF-84338-00-00

Unavailable

10

NUT(6L2)

95333-08600-00

$2.49

11

. BOLT, SPECIAL

1UF-84137-00-00

Unavailable

12

. COLLAR

1UF-84307-00-00

Unavailable

13

. DAMPER, HEADLIGHT

1UF-84345-00-00

Unavailable

14

WASHER, PLAIN

(1UF-84344-00-00)

Unavailable

15

WASHER (688)

92990-08400-00

Unavailable

16

. NUT, BODY FITTING

1UF-84316-00-00

Unavailable

17

SCREW, PAN HEAD(1AA)

90157-05084-00

Unavailable

18

COLLAR, BODY FTNG

1UF-84338-00-00

Unavailable

19

BOLT

97017-08035-00

Unavailable

20

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

21

BOLT, SOCKET

91317-08045-00

Unavailable

22

WASHER, SPECIAL

1UF-84327-00-00

Unavailable

23

WASHER(6TC)

92907-08200-00

Unavailable
