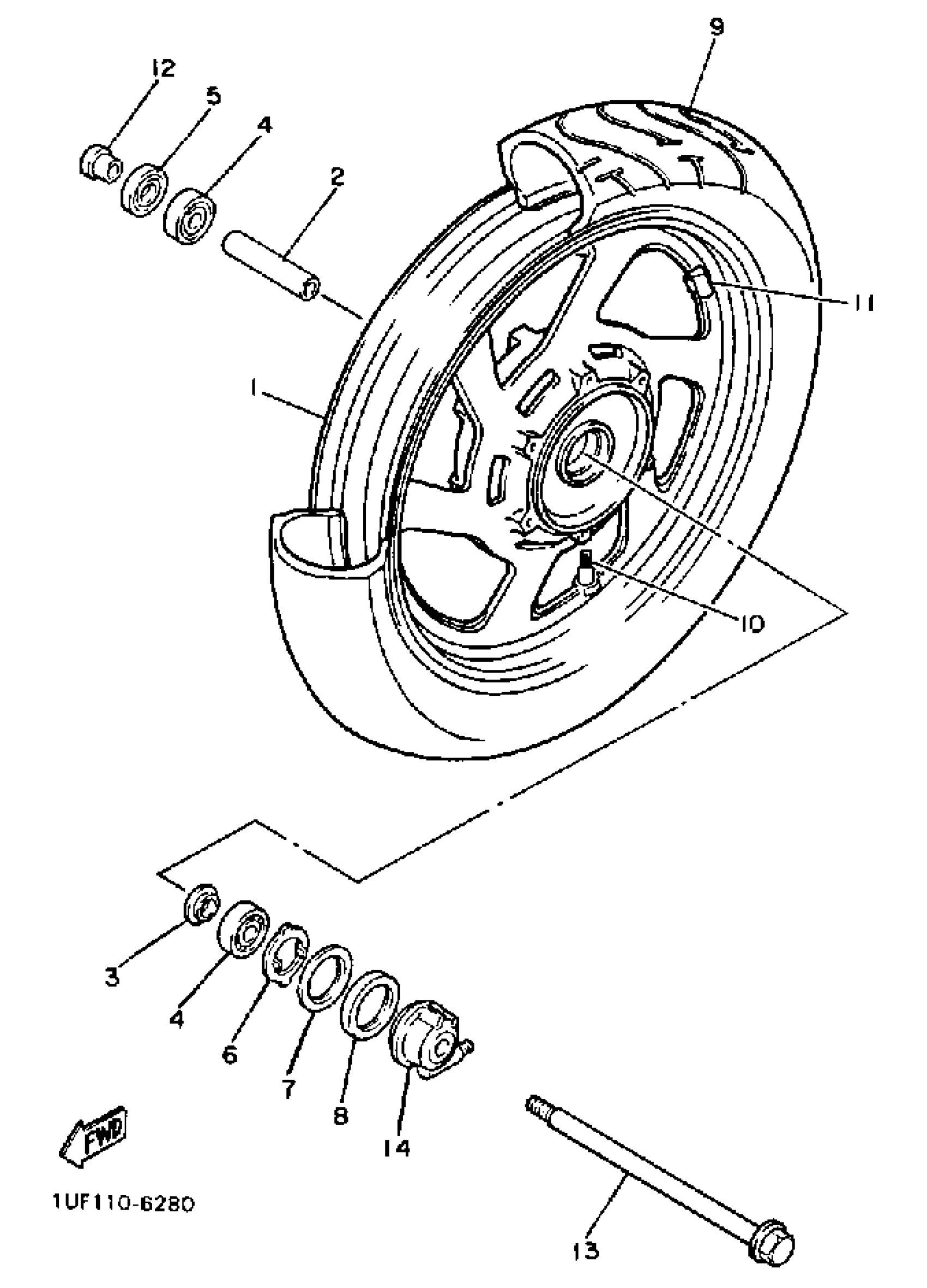

Yamaha FZX700SC (FAZER CA) 1986 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, CAST FRONT

1UF-25168-00-35

Unavailable

2

SPACER

90560-15116-00

Unavailable

3

FLANGE, SPACER

146-25115-00-00

$6.99

4

BEARING

93306-30212-00

$40.99

5

OIL SEAL (22X42X7)

93102-22014-00

$12.49

6

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

7

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

8

OIL SEAL (45X56X6)

93105-45017-00

$14.99

9

110/90V16 G527A BS

94111-161J3-00

Unavailable

10

VALVE, RIM (31A)

93900-00031-00

$16.99

10

VALVE, RIM (31A)

93900-00031-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

COLLAR (1L9)

90387-15550-00

$18.99

13

AXLE, WHEEL

42X-25181-00-00

Unavailable

14

GEAR UNIT ASSY

3M5-25190-10-00

Unavailable
