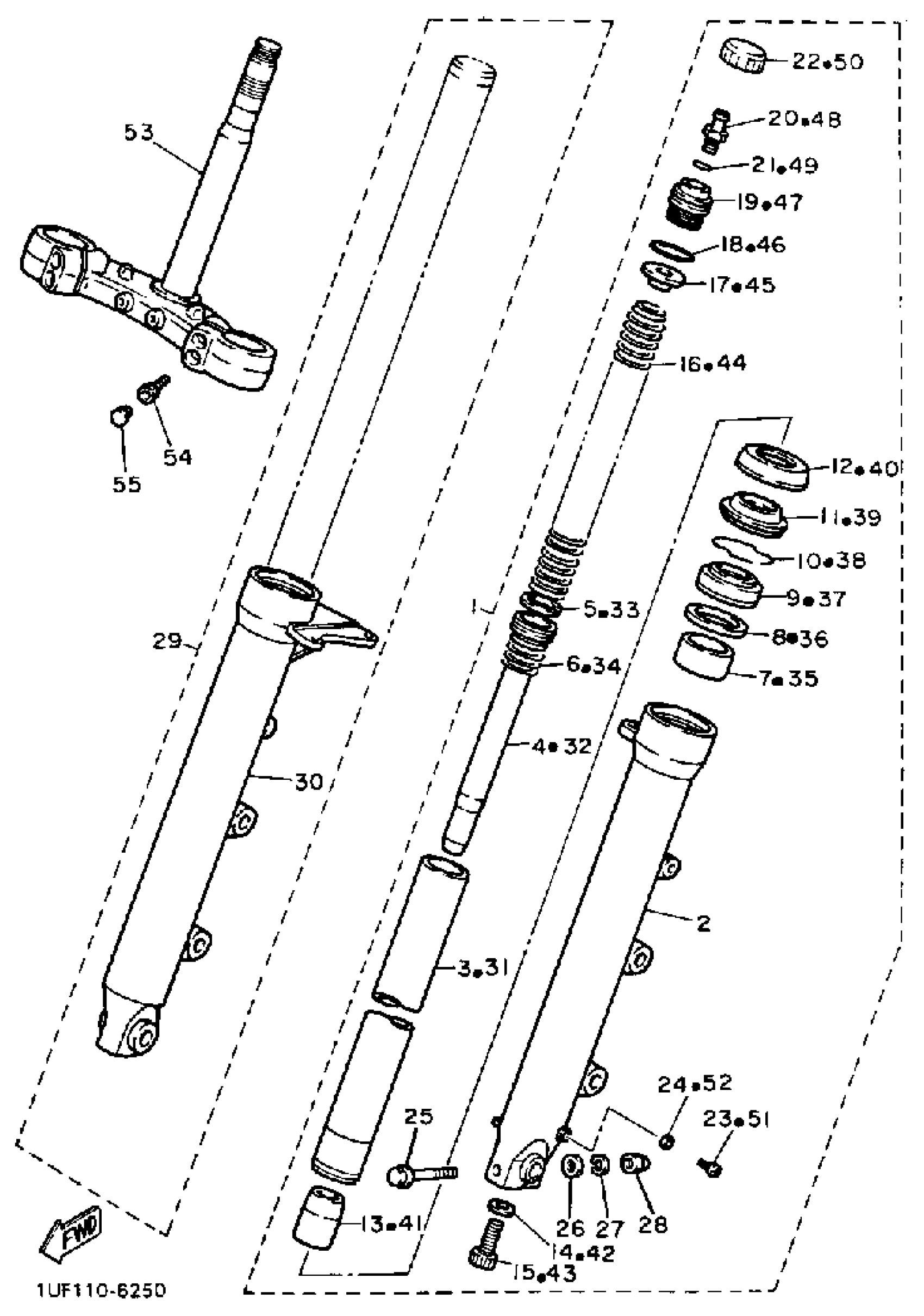

Yamaha FZX700SC (FAZER CA) 1986 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASY L

1UF-23102-02-00

Unavailable

2

TUBE, OUTER (LEFT)

1UF-23126-02-00

Unavailable

3

. INNER TUBE 1

1UF-23110-00-00

Unavailable

4

PISTON, FRONT FORK

1UF-23171-01-00

Unavailable

5

. RING, PISTON FRTFRK

1UF-23157-00-00

Unavailable

6

. SPRING, REBOUND

1UF-23151-00-00

Unavailable

7

METAL, SLIDE 1

3XC-23125-00-00

$30.99

8

GUIDE, COVER UPPER

1UF-23115-00-00

$7.99

9

OIL SEAL

5GJ-23145-00-00

$23.99

10

CLIP, OIL SEAL

1UF-23156-00-00

$5.49

11

SEAL, DUST

5GJ-23144-00-00

$19.99

12

. COVER, DUST SEAL

1UF-23148-00-00

Unavailable

13

. SPINDLE, TAPER

1GU-23173-00-00

Unavailable

14

. GASKET

90430-08143-00

Unavailable

15

BOLT,SOCKET

91314-08025-00

$8.49

16

SPRING, FRONT FORK

(1UF-23141-00-00)

Unavailable

17

. SEAT, SPRING UPPER

1UF-23142-00-00

Unavailable

18

. O-RING

93210-27732-00

Unavailable

19

. BOLT, CAP

1UF-23111-00-00

Unavailable

20

. AIR VALVE

1UF-23190-00-00

Unavailable

21

O-RING (26H)

93210-06632-00

Unavailable

22

. CAP

1UF-2319U-00-00

Unavailable

23

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

24

GASKET

5U8-23129-00-00

Unavailable

25

BOLT, SMALL FLANGE

95024-08060-00

Unavailable

26

.. WASHER, PLATE

92990-08600-00

Unavailable

27

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

28

NUT, CROWN

95303-08800-00

Unavailable

29

FRONT FORK ASSY (R.H)

1UF-23103-01-00

Unavailable

30

TUBE, OUTER 2

1UF-23136-01-00

Unavailable

31

. INNER TUBE 1

1UF-23110-00-00

Unavailable

32

PISTON, FRONT FORK

1UF-23171-01-00

Unavailable

33

. RING, PISTON FRTFRK

1UF-23157-00-00

Unavailable

34

. SPRING, REBOUND

1UF-23151-00-00

Unavailable

35

METAL, SLIDE 1

3XC-23125-00-00

$30.99

36

GUIDE, COVER UPPER

1UF-23115-00-00

$7.99

37

OIL SEAL

5GJ-23145-00-00

$23.99

38

CLIP, OIL SEAL

1UF-23156-00-00

$5.49

39

SEAL, DUST

5GJ-23144-00-00

$19.99

40

. COVER, DUST SEAL

1UF-23148-00-00

Unavailable

41

. SPINDLE, TAPER

1GU-23173-00-00

Unavailable

42

. GASKET

90430-08143-00

Unavailable

43

BOLT,SOCKET

91314-08025-00

$8.49

44

SPRING, FRONT FORK

(1UF-23141-00-00)

Unavailable

45

. SEAT, SPRING UPPER

1UF-23142-00-00

Unavailable

46

. O-RING

93210-27732-00

Unavailable

47

. BOLT, CAP

1UF-23111-00-00

Unavailable

48

. AIR VALVE

1UF-23190-00-00

Unavailable

49

O-RING (26H)

93210-06632-00

Unavailable

50

. CAP

1UF-2319U-00-00

Unavailable

51

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

52

GASKET

5U8-23129-00-00

Unavailable

53

UNDER BRACKET

2JE-23340-00-00

Unavailable

54

BOLT,SOCKET

91314-08025-00

$8.49

55

PLUG(42X)

90338-08163-00

Unavailable

56

METAL, SLIDE

3XC-23135-00-00

Unavailable
