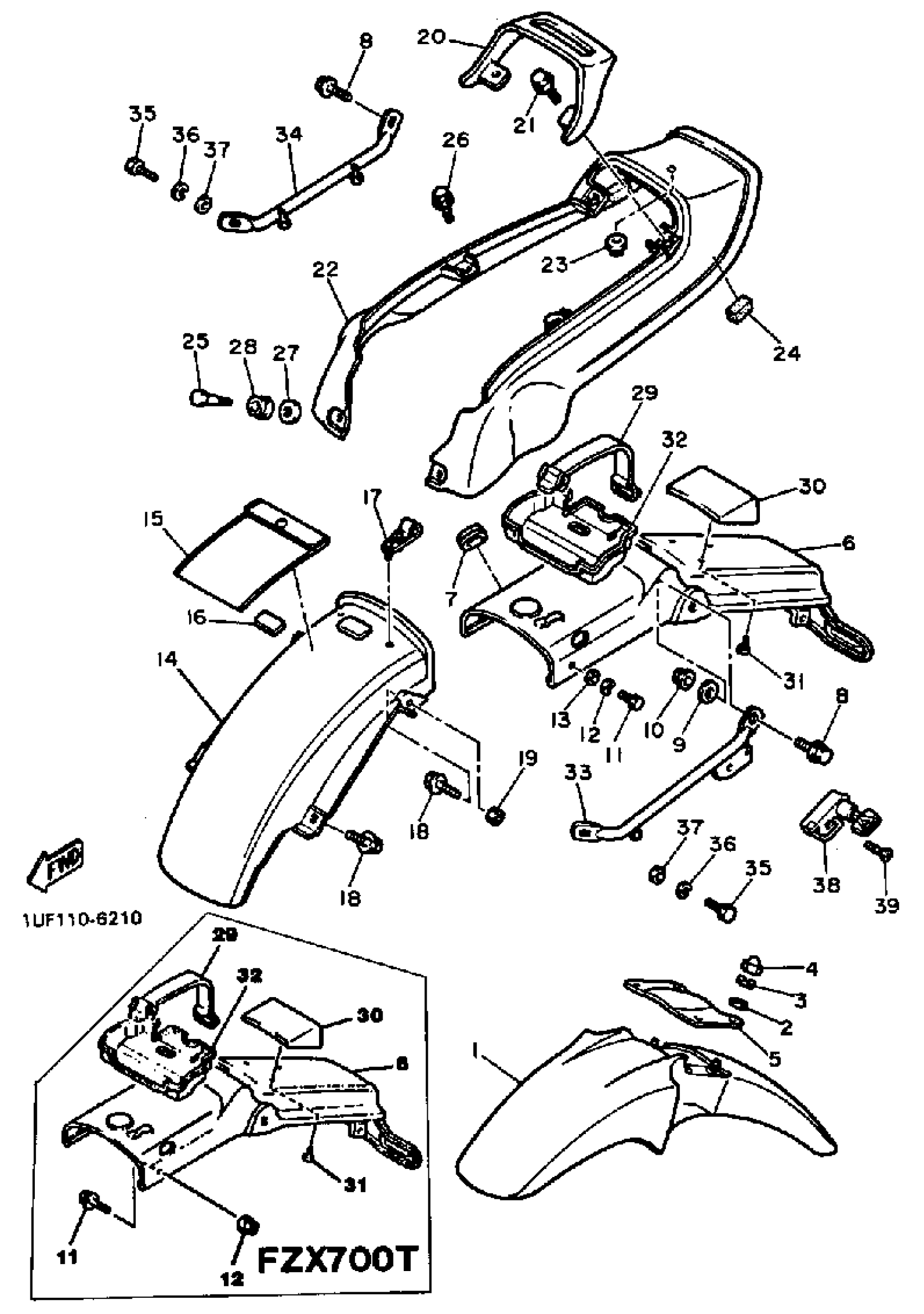

Yamaha FZX700SC (FAZER CA) 1986 FENDER Diagram
#
1
FRONT FENDER
1UF-21510-00-LG
Unavailable
1
FENDER, FRONT
1UF-21510-00-TF
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
5
BRACE, FORK
1UF-2313A-00-00
Unavailable
6
REAR FENDER COMP.
1UF-21610-02-00
Unavailable
6
FENDER, REAR
99999-01724-00
Unavailable
12
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
13
WASHER(6TA)
92907-06600-00
Unavailable
14
GUARD, MUD
1UF-21629-00-00
Unavailable
15
POUCH
4K5-28186-00-00
Unavailable
16
HOOK
4K5-2814E-10-00
Unavailable
17
CLAMP (2H7)
90464-12027-00
Unavailable
18
BOLT, WITH WASHER
(90119-06095-00)
Unavailable
19
NUT(6TA)
95317-06600-00
Unavailable
20
STAY, REAR
1UF-21645-01-00
Unavailable
20
STAY, REAR
1UF-21645-10-00
Unavailable
21
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
22
COVER, REAR FENDER
1UF-21651-00-LG
Unavailable
22
COVER, REAR FENDER
1UF-21651-00-TF
Unavailable
23
DAMPER, SEAT
3L7-24724-00-00
Unavailable
24
DAMPER 2
51Y-21639-00-00
Unavailable
25
BOLT
90109-06366-00
Unavailable
26
BOLT, WITH WASHER
90119-06152-00
Unavailable
27
WASHER, PLATE
90201-06380-00
Unavailable
28
GROMMET
90480-13014-00
Unavailable
29
BAND,BATTERY
7H3-82131-00-00
Unavailable
30
COVER, REAR FENDER
1UF-2163A-00-00
Unavailable
30
COVER, REAR FENDER
1UF-2163A-10-00
Unavailable
31
SCREW, PAN TAP.2 SLIT
97707-40608-00
Unavailable
32
BOX
(1UF-21653-00-00)
Unavailable
33
HANDLE, STANDING
1UF-21165-00-00
Unavailable
34
STAY, REAR
1UF-21275-00-00
Unavailable
35
BOLT, HEXAGON
97017-08020-00
Unavailable
36
WASHER(JN5)
92907-08100-00
Unavailable
37
WASHER(6TA)
92907-08600-00
Unavailable
38
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
39
SCREW (3H1)
90149-06150-00
Unavailable
