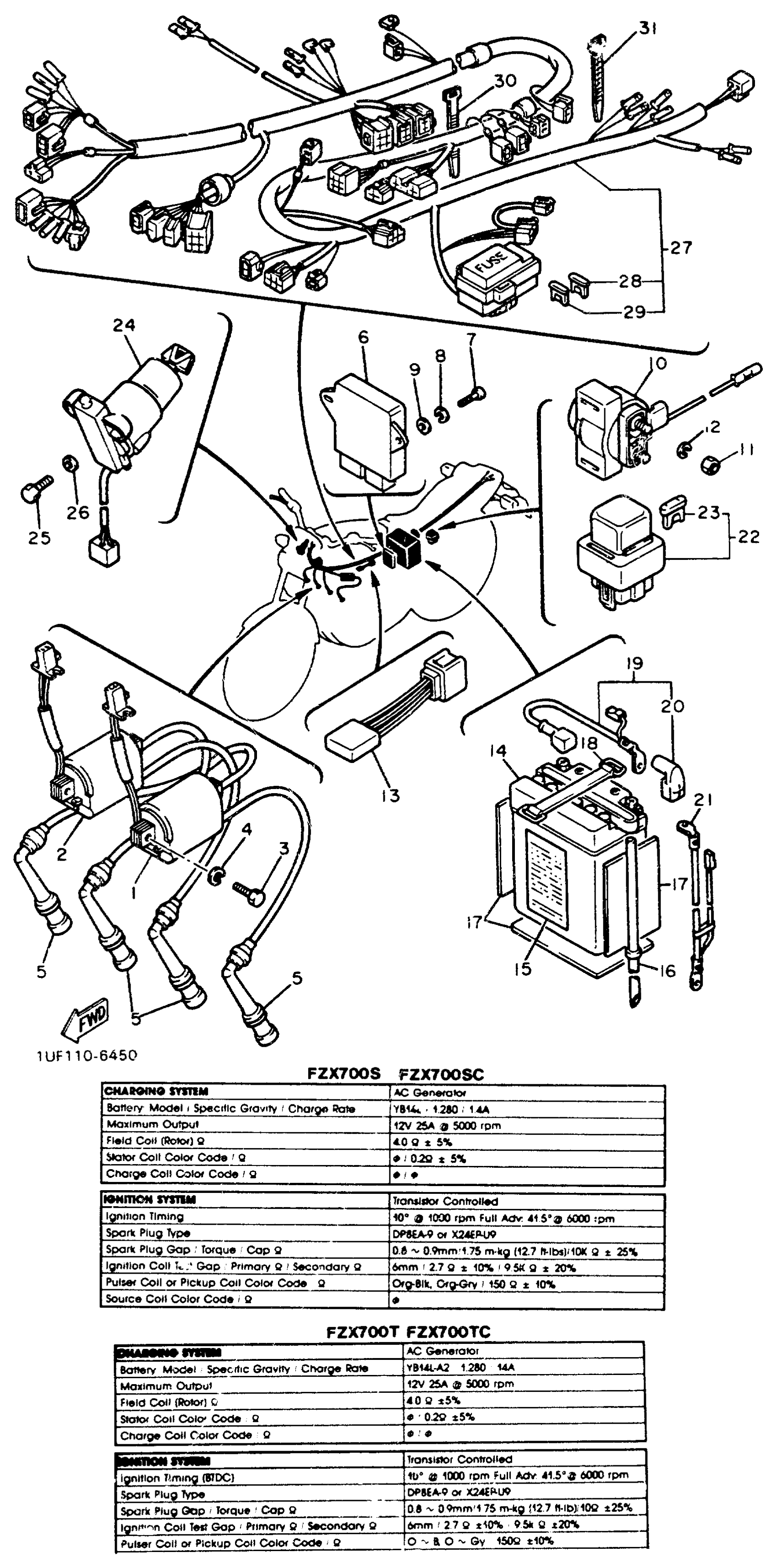

Yamaha FZX700SC (FAZER CA) 1986 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASY

1AE-82310-09-00

Unavailable

2

IGNITION COIL ASY

1AE-82310-09-00

Unavailable

3

BOLT(3DM)

97024-06020-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

PLUG CAP ASSY

2KT-82370-00-00

$122.99

6

IGNITOR UNIT ASSEMBLY 1

1UF-82305-10-00

Unavailable

7

SCREW, PAN HEAD

(97806-06016-00)

Unavailable

8

WASHER, SPRING

92907-06100-00

$4.25

9

WASHER(6TA)

92907-06600-00

$2.72

10

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

11

NUT(650)

95380-06700-00

$8.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

RECTIFIER 2

4U8-81980-M0-00

Unavailable

14

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

15

LABEL, BATTERY

40A-82141-G0-00

Unavailable

16

HOSE (L1500)

90445-084J0-00

Unavailable

17

SEAT, BATTERY

5Y1-82122-00-00

Unavailable

18

BAND, BATTERY

2T4-82131-00-00

Unavailable

19

WIRE, PLUS LEAD

1TX-82115-00-00

Unavailable

20

. COVER, LEAD WIRE

4X7-82119-00-00

Unavailable

21

WIRE, MINUS LEAD

1UF-82116-00-00

Unavailable

22

FUSE HOLDER ASSY

1AE-82150-00-00

Unavailable

23

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

24

MAIN SWCH STRG LCK

3LT-82501-00-00

Unavailable

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable

27

WIRE HARNESS ASSEMBLY

1UF-82590-00-00

Unavailable

28

FUSE (10A)

42X-82151-00-00

Unavailable

29

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

30

BAND

341-26397-01-00

Unavailable

31

CLAMP

(90464-13080-00)

Unavailable
