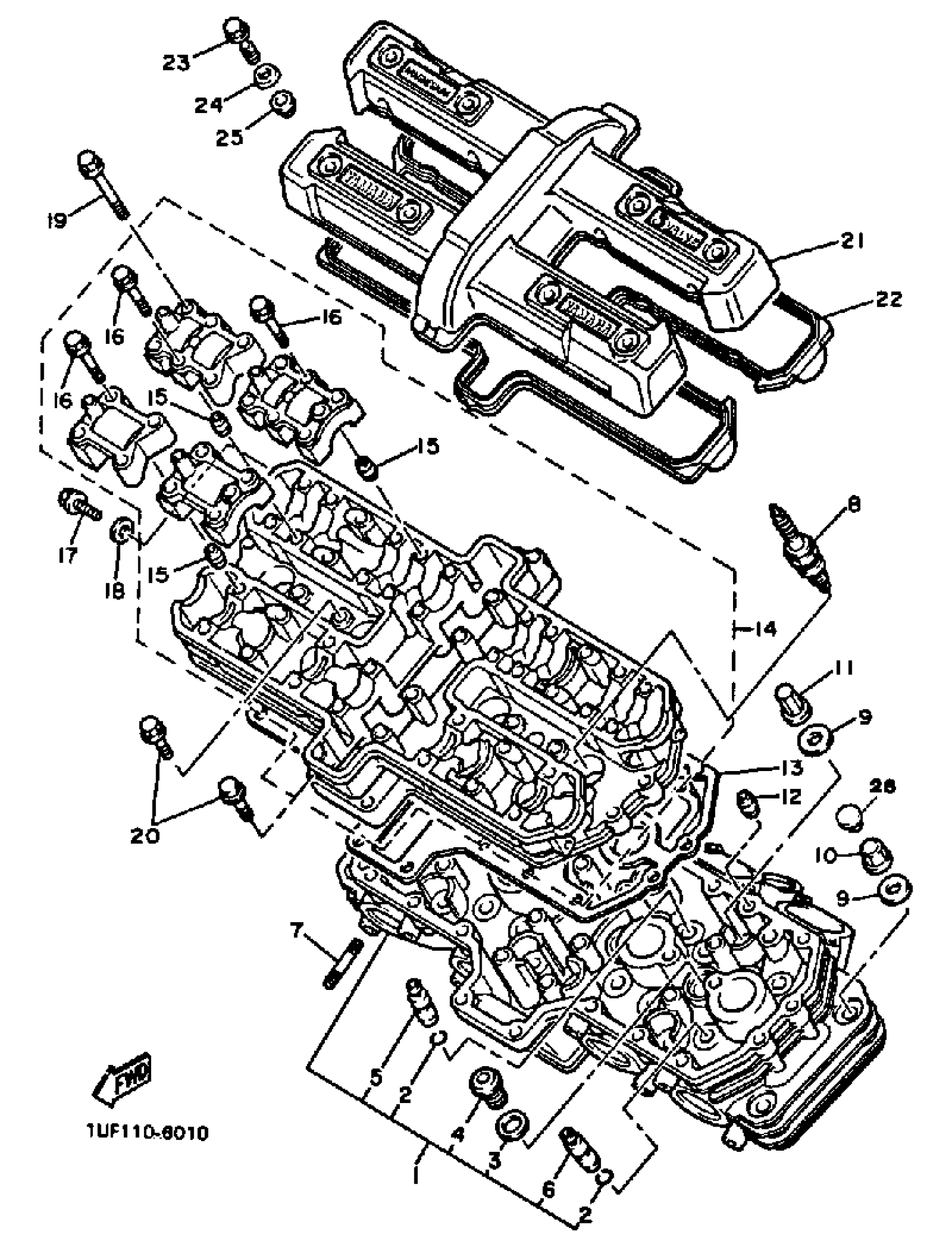

Yamaha FZX700SC (FAZER CA) 1986 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASS'Y

1UF-11102-00-00

Unavailable

2

CIRCLIP(1AA)

93440-09141-00

$2.29

3

. WASHER, PLATE

90201-183H2-00

Unavailable

4

PLUG, STRAIGHT SCREW (33M)

90340-18101-00

$11.49

5

. GDE, INTK VLV 1 O/S

1AA-11133-10-00

Unavailable

6

. GDE, EXST VLV 1 O/S

1AA-11134-10-00

Unavailable

7

BOLT, STUD(1FW)

90116-06466-00

$4.51

8

DP8EA9 NGK SPLUG 10PK

DP8-EA900-00-00

Unavailable

9

WASHER, PLATE(1AA)

90201-096J9-00

$4.41

10

NUT(1AA)

90179-09489-00

Unavailable

11

NUT(1AA)

90179-09490-00

$7.49

12

PIN, DOWEL(3VD)

99530-10114-00

$2.55

13

GASKET, CYLINDER HEAD 2

2GH-11182-00-00

Unavailable

14

CAM CASE ASSY

1UF-1115A-01-00

Unavailable

15

PIN, DOWEL(3XW)

91808-16023-00

$8.49

16

BOLT, WASHER BASED (4H7)

90105-06153-00

Unavailable

17

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

18

GASKET 256113960000

90430-06014-00

Unavailable

19

BOLT, WASHER BASED(1AA)

90105-06362-00

Unavailable

20

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

21

COVER, CYLINDER.HEAD 1

1UF-11191-00-00

Unavailable

21

COVER, CYLINDER.HEAD 1

2AK-11191-00-00

Unavailable

22

GASKET, HD.COVER 1

1UF-11193-00-00

Unavailable

23

BOLT, WITH WASHER(2JE)

90119-06218-00

Unavailable

24

WASHER(46X)

90209-11262-00

Unavailable

25

RUBBER, MOUNT 1

2GH-1111G-00-00

Unavailable

26

PLUG(2AK)

90338-20183-00

Unavailable
