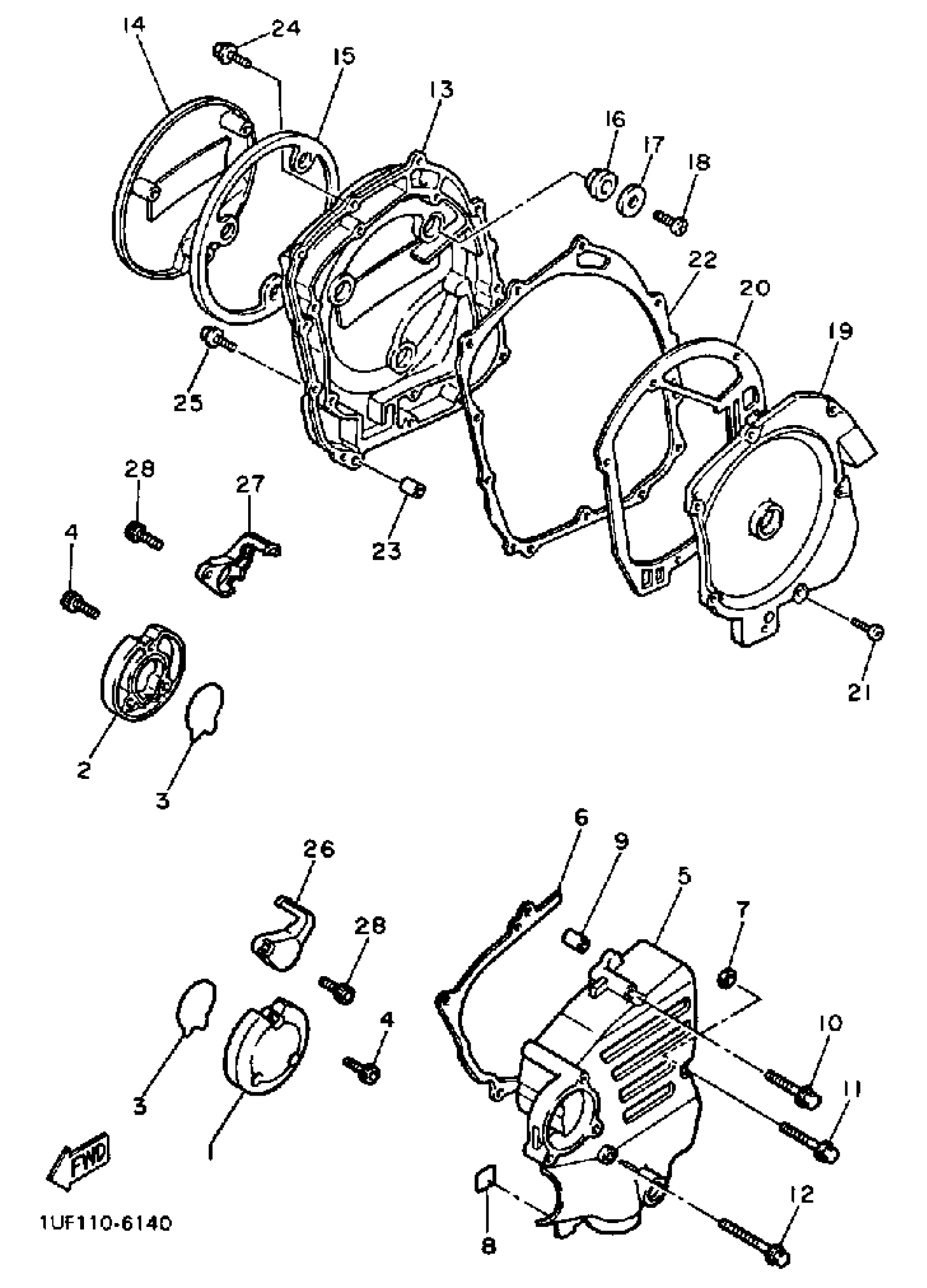

Yamaha FZX700SC (FAZER CA) 1986 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, OIL PUMP

1UF-15416-00-00

Unavailable

1

COVER, OIL PUMP

2AK-15416-00-00

Unavailable

2

COVER, OIL PUMP R

1UF-15426-00-00

Unavailable

2

COVER, OIL PUMP R

2AK-15426-00-00

Unavailable

3

GASKET, OIL PUMP COVER 1

1AE-15456-00-00

$5.49

4

BOLT,SOCKET

91317-06016-00

$1.25

5

COVER, CRANKCASE L

3XF-15411-00-00

Unavailable

6

GASKET,CRCS COVER

4AM-15451-00-00

Unavailable

7

GASKET

3FA-15467-00-00

$6.99

8

SEAL

1UF-15379-00-00

$6.99

9

PIN, DOWEL(N04)

91808-12024-00

$4.24

10

BOLT, SMALL FLANGE

95027-06060-00

$2.87

11

BOLT, SMALL FLANGE

95027-06070-00

$2.49

12

BOLT, SMALL FLANGE

95027-06080-00

$2.39

13

COVER,CRANKCASE R

2GH-15421-00-00

Unavailable

14

COVER, CAP

1UF-15417-00-00

Unavailable

14

COVER, CAP

(2AK-15417-00-00)

Unavailable

15

RING, RUBBER

1AE-15449-00-00

Unavailable

16

GROMMET

4H7-15486-00-00

Unavailable

17

WASHER (4H7)

90209-06096-00

Unavailable

18

SCREW PAN HEAD

98580-06010-00

Unavailable

19

BREATHER 1

1AE-15346-00-00

Unavailable

20

GASKET,CARB CVR 2

4AM-15463-00-00

Unavailable

21

SCREW PAN HEAD

98580-06020-00

Unavailable

22

GASKET, CRANKCASE COVER 2

4FM-15461-00-00

Unavailable

23

PIN, DOWEL(N04)

91808-12024-00

$4.24

24

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

25

. BOLT, FLANGE

95027-06020-00

Unavailable

26

COVER, CHAIN CASE 2

1UF-15428-00-00

Unavailable

26

COVER, CHAIN CASE 2

2AK-15428-00-00

Unavailable

27

COVER, SHIFTER

1UF-15429-00-00

Unavailable

27

COVER, SHIFTER

2AK-15429-00-00

Unavailable

28

BOLT, HEX SKT HEAD

90110-06121-00

Unavailable
