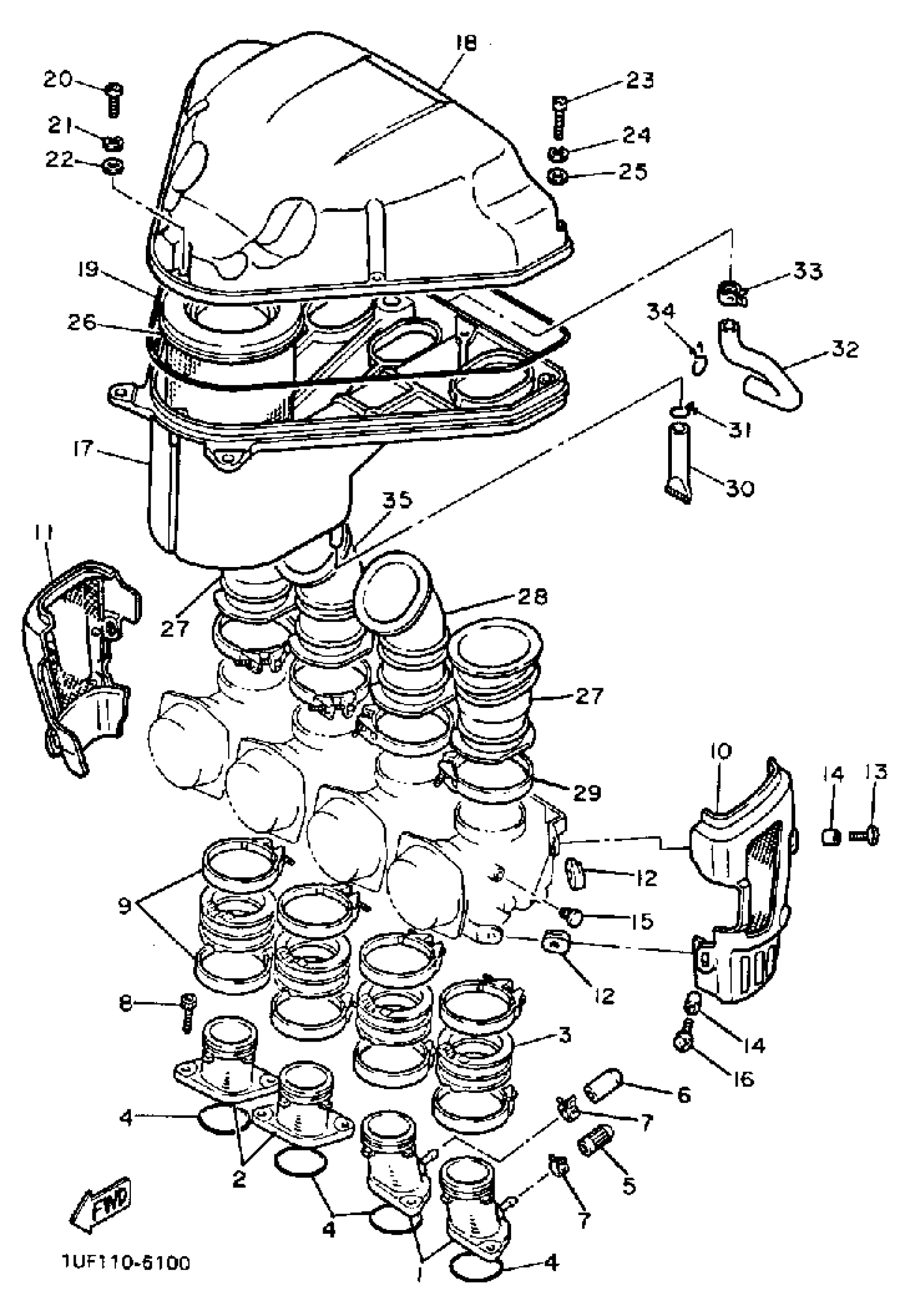

Yamaha FZX700SC (FAZER CA) 1986 AIR FILTER Diagram

#

Description
Price

1

JOINT,CARBURETOR 1

1AE-13586-02-00

Unavailable

2

JOINT, CARBURETOR

1AE-13596-02-00

Unavailable

3

JOINT, CARBURETOR 3

2LM-13597-01-00

$27.99

4

O-RING(1FN)

93210-39700-00

$11.49

5

PLUG, BLIND

16G-13569-00-00

$7.99

6

PLUG, BLIND

1AA-13569-00-00

Unavailable

7

CLIP (3G0)

90467-10039-00

$9.49

8

BOLT,SOCKET

91317-06020-00

Unavailable

9

HOSE CLAMP ASSY

90450-53005-00

Unavailable

10

COVER 1

1UF-14417-00-00

Unavailable

10

COVER 1

1UF-14417-10-00

Unavailable

11

COVER 2

1UF-14418-00-00

Unavailable

12

DAMPER

1UF-13593-00-00

$7.99

13

SCREW, BINDING(3XV)

90154-05059-00

$9.49

14

COLLAR(8R4)

90387-062N2-00

$9.49

15

DAMPER, ENG MOUNT 2

(1UF-15326-00-00)

Unavailable

16

SCREW, BINDING (8J0)

90154-05005-00

Unavailable

17

CASE, AIR CLEANER 1

1UF-14411-00-00

Unavailable

18

CASE, AIR CLEANER 2

1UF-14421-00-00

Unavailable

19

SEAL

1VJ-14462-00-00

Unavailable

20

SCREW, PAN HEAD

98580-05020-00

Unavailable

21

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

22

WASHER, PLAIN (646)

92990-05600-00

Unavailable

23

SCREW, PAN

98507-05035-00

Unavailable

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

ELEMENT, AIR CLEANER

1UF-14451-00-00

Unavailable

27

JOINT, AIR CLEANER 1

1UF-14453-00-00

Unavailable

28

JOINT

1UF-14454-00-00

Unavailable

29

HOSE CLAMP ASSY

90450-58002-00

Unavailable

30

PIPE, DRAIN

34X-1443E-00-00

Unavailable

31

CLIP

90467-100A1-00

Unavailable

32

PIPE, BREATHER 2

(1UF-11167-00-00)

Unavailable

33

CLIP (4X7)

90467-15054-00

Unavailable

34

CLIP (371)

90467-14015-00

Unavailable

35

JOINT, AIR CLNR 2

1UF-14463-00-00

Unavailable
