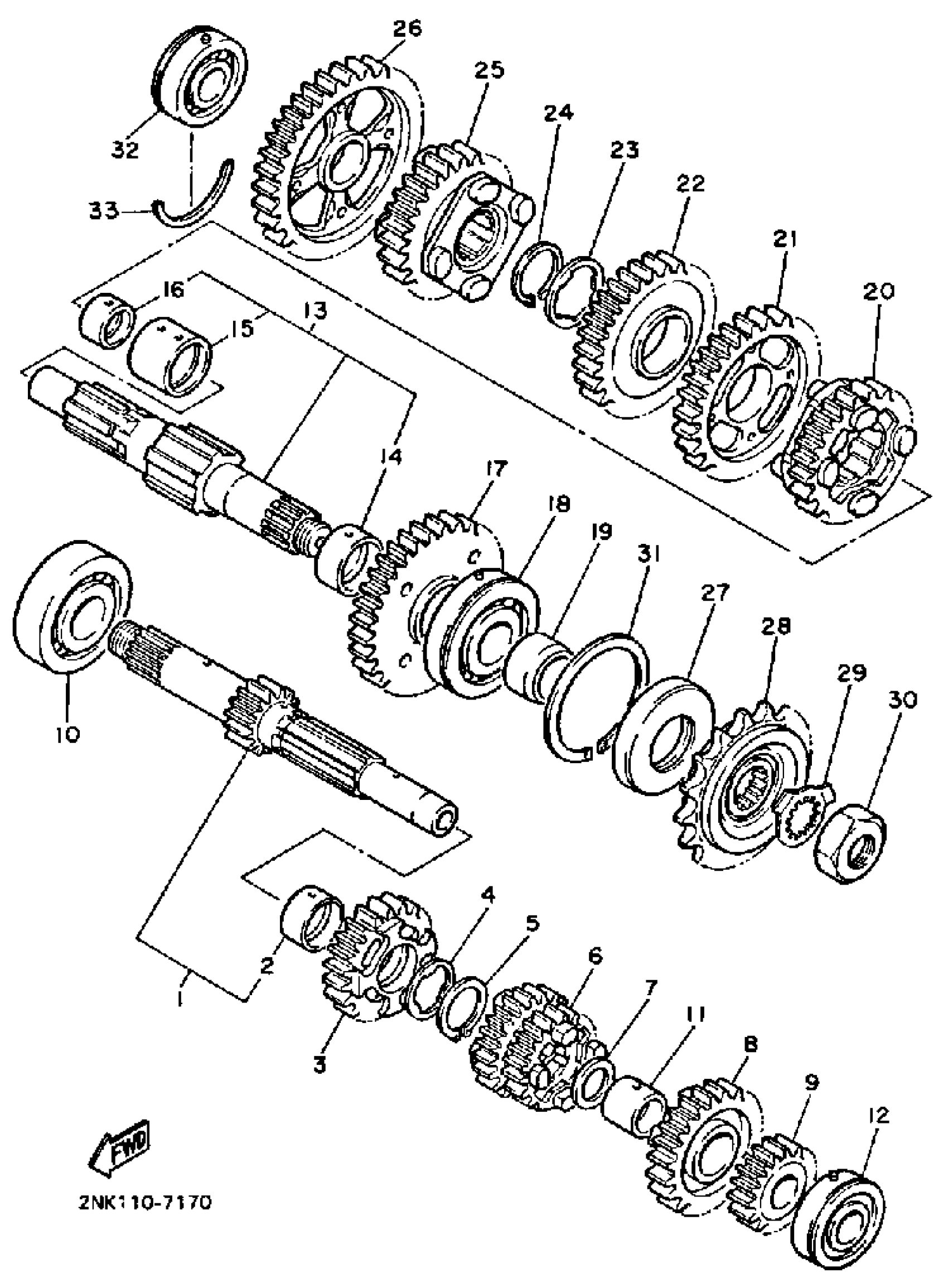

Yamaha FZR750RT (FZR750R) 1987 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE ASSEMBLYASSEMBLY (13T)

2NK-W1741-00-00

Unavailable

2

COLLAR(1FN)

90387-253M6-00

Unavailable

3

GEAR, 5TH PINION

2NK-17151-01-00

Unavailable

4

WASHER (3J3)

90209-22191-00

$7.49

5

CIRCLIP (4L0)

93440-25084-00

$5.60

6

GEAR, 3RD PINION (19T/23T)

2NK-17131-01-00

Unavailable

7

WASHER, PLATE

90201-200K3-00

Unavailable

8

GEAR, 6TH PINION

2NK-17161-01-00

Unavailable

9

GEAR, 2ND PINION

2NK-17121-00-00

Unavailable

10

BEARING(3RR)

93306-30560-00

Unavailable

11

COLLAR

90387-203M7-00

Unavailable

12

BEARING(1FN)

93306-20455-00

Unavailable

13

DRIVE AXLE ASSEMBLY

1AE-W1742-00-00

Unavailable

14

. COLLAR

90387-263M8-00

Unavailable

15

. COLLAR

90387-284M0-00

Unavailable

16

. COLLAR

90387-204M1-00

Unavailable

17

GEAR, 2ND WHEEL

2NK-17221-01-00

Unavailable

18

BEARING (B6305A5 SPECIAL)(1AE)

93306-30546-00

Unavailable

19

COLLAR(1AE)

90387-253M9-00

Unavailable

20

GEAR, 6TH WHEEL

2NK-17261-01-00

Unavailable

21

GEAR, 3RD WHEEL

2NK-17231-01-00

Unavailable

22

GEAR, 4TH WHEEL

2NK-17241-01-00

Unavailable

23

WASHER (4H7)

90209-25196-00

Unavailable

24

CIRCLIP (2H7)

93440-28062-00

Unavailable

25

GEAR, 5TH WHEEL

2NK-17251-01-00

Unavailable

26

GEAR,1ST WHEEL

3FV-17211-00-00

Unavailable

27

OIL SEAL (35X62X6-371)

93102-35109-00

Unavailable

28

SPROCKET, DRIVE 17T

1AE-17460-11-00

Unavailable

29

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

30

NUT 152174630000

90179-18020-00

Unavailable

31

CIRCLIP

278-17424-01-00

Unavailable

32

BEARING(1FN)

93306-20455-00

Unavailable

33

CIRCLIP(1FN)

93440-45144-00

Unavailable
