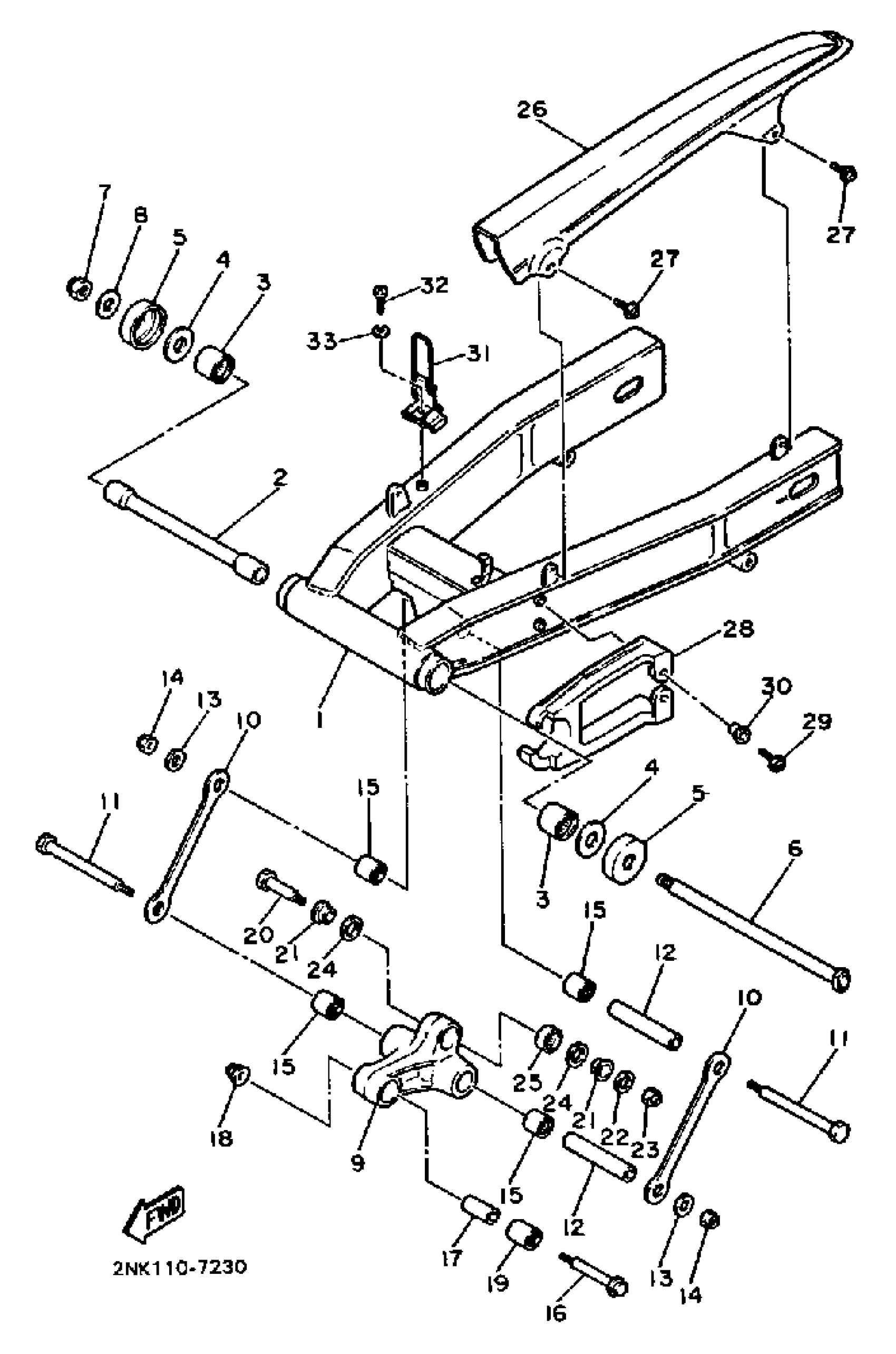

Yamaha FZR750RT (FZR750R) 1987 SWING ARM Diagram

#

Description
Price

1

REAR ARM (2GH-22110-00)

2NK-22110-00-00

Unavailable

2

BUSH

36Y-22184-00-00

Unavailable

3

BEARING, CYLINDRICAL(36Y)

93317-42550-00

Unavailable

4

SHIM

36Y-22127-00-00

Unavailable

5

COVER, THRUST 1

36Y-22128-00-00

Unavailable

6

SHAFT, PIVOT

2GH-22141-00-00

Unavailable

7

NUT, SELF-LOCKING (1J7)

90185-14070-00

$13.49

8

WASHER, PLATE(3FC)

90201-142M6-00

$9.49

9

ARM, RELAY

2KT-2217A-00-00

Unavailable

10

ARM 1

1WG-2217M-00-00

Unavailable

11

BOLT(2GH)

90101-12673-00

$16.99

12

COLLAR(2GH)

90387-126T1-00

Unavailable

13

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

14

NUT, U (4PM)

95617-12100-00

$4.16

15

BEARING, CYLINDRICAL(2GH)

93317-41761-00

$42.99

16

BOLT, WASHER BASED(2GH)

90105-10454-00

Unavailable

17

COLLAR(2MF)

90387-100T8-00

Unavailable

18

NUT, SELF-LOCKING

90185-10170-00

Unavailable

19

BEARING, CYLINDRICAL(2GH)

93317-42060-00

Unavailable

20

BOLT(1WG)

90101-10659-00

Unavailable

21

COLLAR

90387-124L0-00

Unavailable

22

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

23

NUT, U

95614-10100-00

Unavailable

24

OIL SEAL(47X)

93101-16131-00

Unavailable

25

BEARING(47X)

93399-99919-00

Unavailable

26

CASE, CHAIN

2GH-22311-00-00

Unavailable

27

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

28

SEAL, GUARD

2GH-22151-00-00

Unavailable

29

SCREW, WITH WASHER

90159-06110-00

Unavailable

30

COLLAR

90387-06704-00

Unavailable

31

HOLDER,BRKE HOSE 1

2GH-25875-50-00

Unavailable

32

SCREW PAN HEAD

98580-06020-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable
