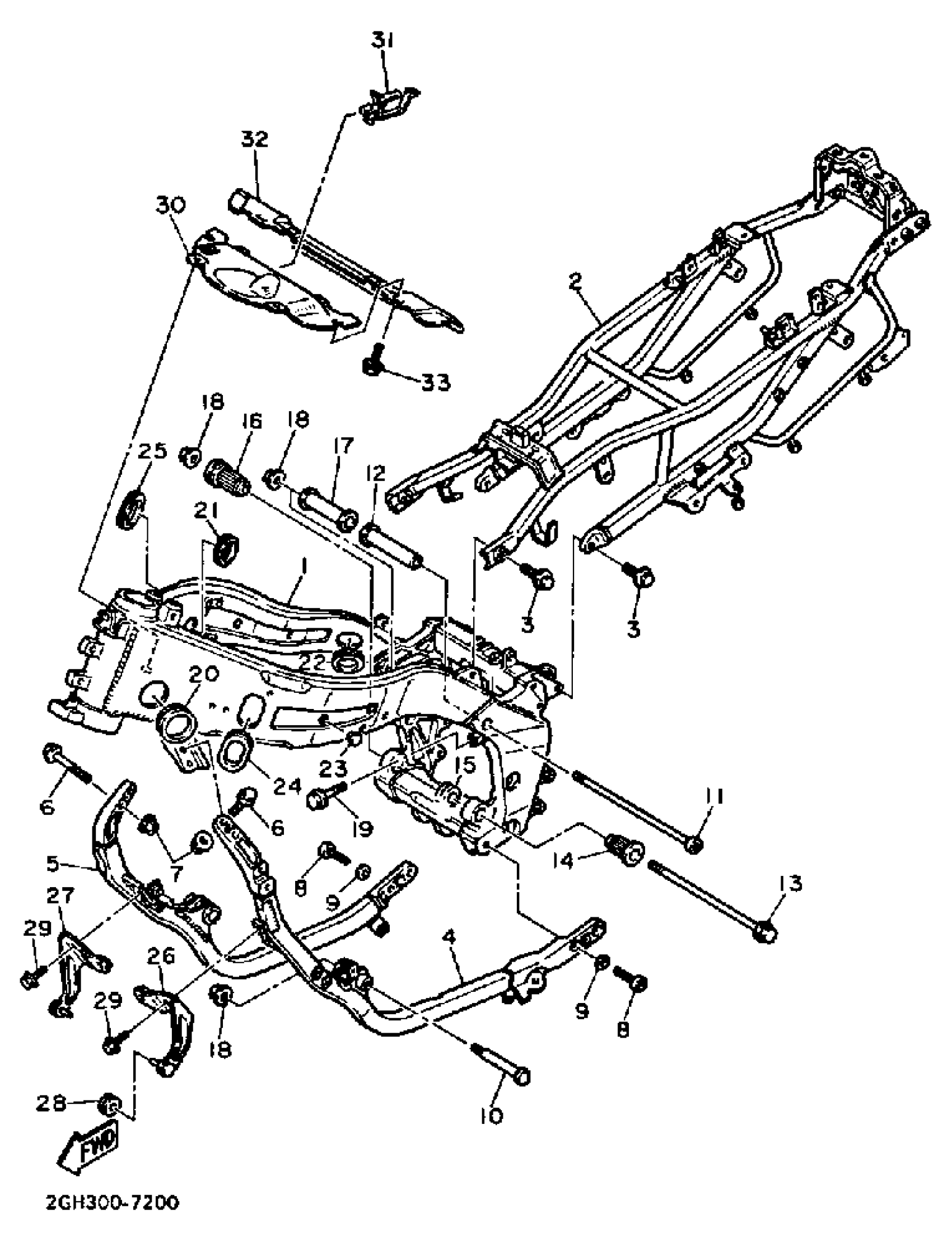

Yamaha FZR750RT (FZR750R) 1987 FRAME Diagram
#
1
. COVER, BALL RACE 1RACE 1
2GH-23415-10-00
Unavailable
1
FRAME COMP. (2YJ)
99999-01934-00
Unavailable
1
FRAME COMP. (2YJ)
99999-01934-00
Unavailable
2
FRAME, REAR
2GH-21190-00-35
Unavailable
3
BOLT, WASHER BASEDBASED
90105-10459-00
Unavailable
4
TUBE, DOWN
2GH-21140-00-35
Unavailable
5
DOWN TUBE COMP.2
2GH-21150-00-35
Unavailable
10
BOLT
90109-103E4-00
Unavailable
11
BOLT, HEX SKT HEADSOCKET HEAD
90110-10154-00
Unavailable
12
COLLAR
90387-113T1-00
Unavailable
13
BOLT, WASHER BASED
90105-10476-00
Unavailable
14
DAMPER
1UF-2139X-00-00
Unavailable
15
DAMPER 2
1UF-2139U-00-00
Unavailable
16
DAMPER, ENG MOUNT 1NGINE MOUNT 1
2GH-15316-00-00
Unavailable
17
SPACER
1WG-21459-00-00
Unavailable
18
NUT(4KG)
90179-10658-00
Unavailable
19
BOLT, WASHER BASED
90105-08475-00
Unavailable
20
GROMMET(3GM)
90480-35526-00
Unavailable
21
COVER 2
(2GH-2117M-00-00)
Unavailable
22
COVER 5
2GH-2117T-00-00
Unavailable
23
PLUG(2GH)
90338-15202-00
Unavailable
24
COVER 3
(2GH-2117N-00-00)
Unavailable
25
COVER 4
2GH-2117R-00-00
Unavailable
26
BRACKET, COOLER 1
2GH-2136A-00-00
Unavailable
27
BRACKET, COOLER 2
2GH-2136E-00-00
Unavailable
28
GROMMET(80K)
90480-13428-00
Unavailable
29
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
30
COVER 1
2GH-1246A-00-00
Unavailable
31
CLAMP (1J7)
90464-16025-00
Unavailable
32
COVER 2
2GH-1246E-00-00
Unavailable
33
BOLT, WITH WASHER (10V)
90119-06063-00
Unavailable
