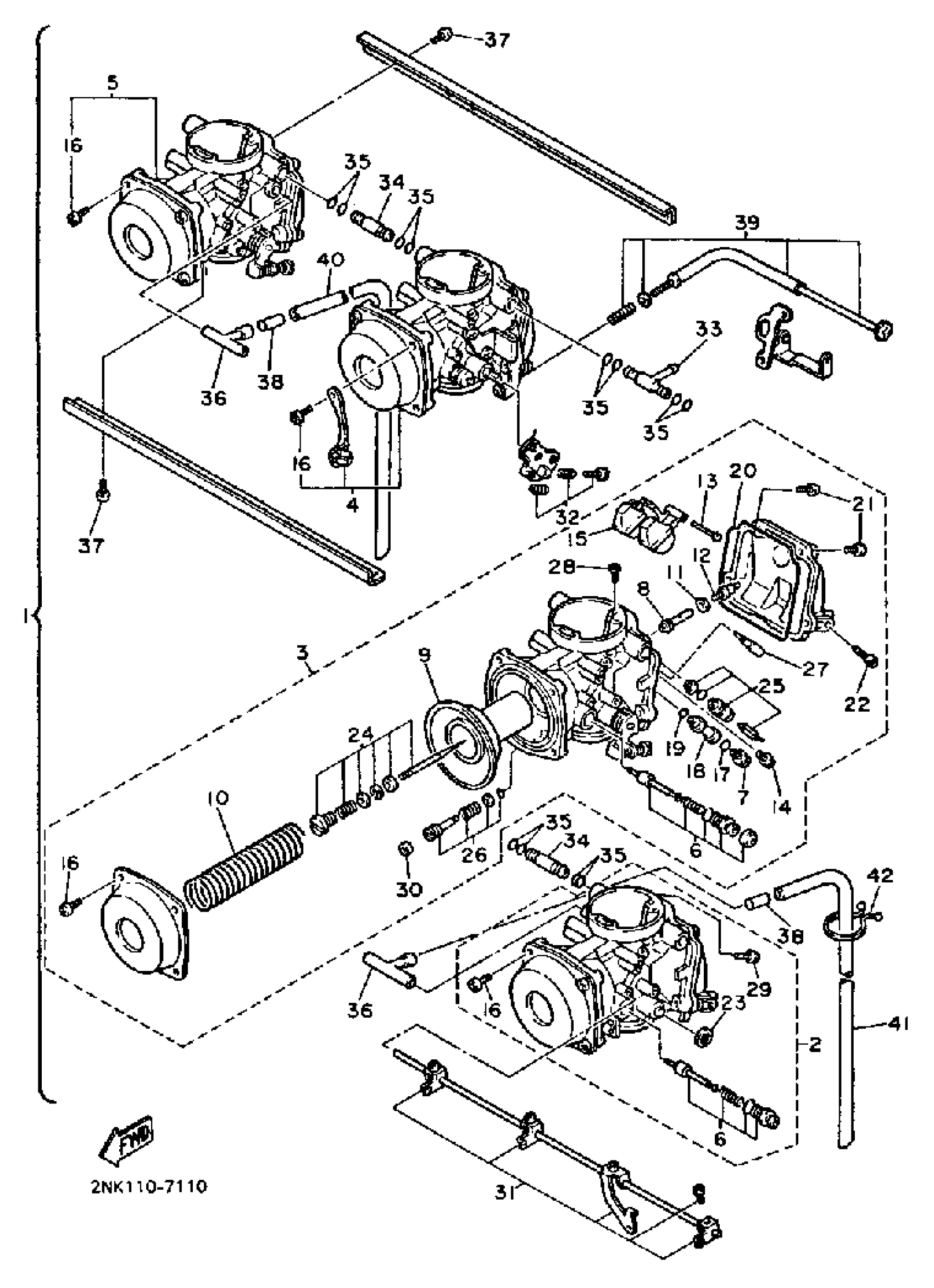

Yamaha FZR750RT (FZR750R) 1987 CARBURETOR Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

2NK-14900-00-00

Unavailable

2

CARBURETOR ASSEMBLY 1

(2NK-14901-00-00)

Unavailable

3

CARBURETOR ASSEMBLY 2

(2NK-14902-00-00)

Unavailable

4

CARBURETOR ASSEMBLY 3

(2NK-14903-00-00)

Unavailable

5

CARBURETOR ASSEMBLY 4

(2NK-14904-00-00)

Unavailable

6

.. STARTER SET

1AE-1410A-00-00

Unavailable

6

STARTER SET

1FN-1410A-00-00

$79.99

7

JET, MAIN (#105)

620-14231-21-A0

$15.49

7

.. JET, MAIN#1075

620-1423A-72-A0

Unavailable

8

.. NOZZLE, MAIN

1AE-14141-90-00

Unavailable

9

DIAPHRAGM ASSY

1AE-14940-00-00

Unavailable

10

.. SPRING, DIAPHRAGM

2LH-14933-00-00

Unavailable

11

WASHER,MAIN JET

137-14153-00-00

$7.99

12

SCREW

1AE-14565-00-00

$30.99

13

PIN, FLOAT

353-14186-00-00

$7.99

14

SCREW

1FN-14565-00-00

Unavailable

15

.. FLOAT

1WG-14985-00-00

Unavailable

16

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

17

O-RING

1AE-14227-00-00

Unavailable

18

.. HOLDER

2LH-14261-00-00

Unavailable

19

GASKET

1AE-14237-00-00

Unavailable

20

O-RING

1FN-14147-00-00

Unavailable

21

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

21

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

22

PLUG, DRAIN

12R-14191-00-00

Unavailable

23

CLIP

812-14137-00-00

Unavailable

24

.. NEEDLE SET

2NK-1490J-00-00

Unavailable

24

.. NEEDLE SET

2NK-1490J-10-00

Unavailable

25

NEEDLE VALVE SET

1FN-14107-12-00

Unavailable

26

PILOT SCREW SET

12R-14105-00-00

Unavailable

27

JET, PILOT (# 15)

3H1-14142-15-00

Unavailable

28

.. JET, MAIN (#125)

830-14231-25-00

Unavailable

29

SCREW, PAN HEAD

98517-04016-00

Unavailable

30

CAP

3F9-14118-00-00

Unavailable

31

. STARTER LEVR SET, 1

1FN-1490L-00-00

Unavailable

32

STOP SCREW SET

(1FN-1490K-01-00)

Unavailable

33

. NIPPLE

1HX-14251-00-00

Unavailable

34

. NIPPLE

16H-14251-00-00

Unavailable

35

O-RING

36Y-14147-00-00

Unavailable

36

. PIPE

1AE-14197-00-00

Unavailable

37

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

38

. RING

1FN-14918-00-00

Unavailable

39

. THROTTLE SCREW SET

2LE-14103-00-00

Unavailable

40

PIPE

(2NK-14197-00-00)

Unavailable

41

PIPE

(2NK-14197-00-00)

Unavailable

42

CLAMP(6M7)

90464-09M31-00

Unavailable
