1990 Yamaha FZR400 (FZR400A) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1990 Yamaha FZR400 (FZR400A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

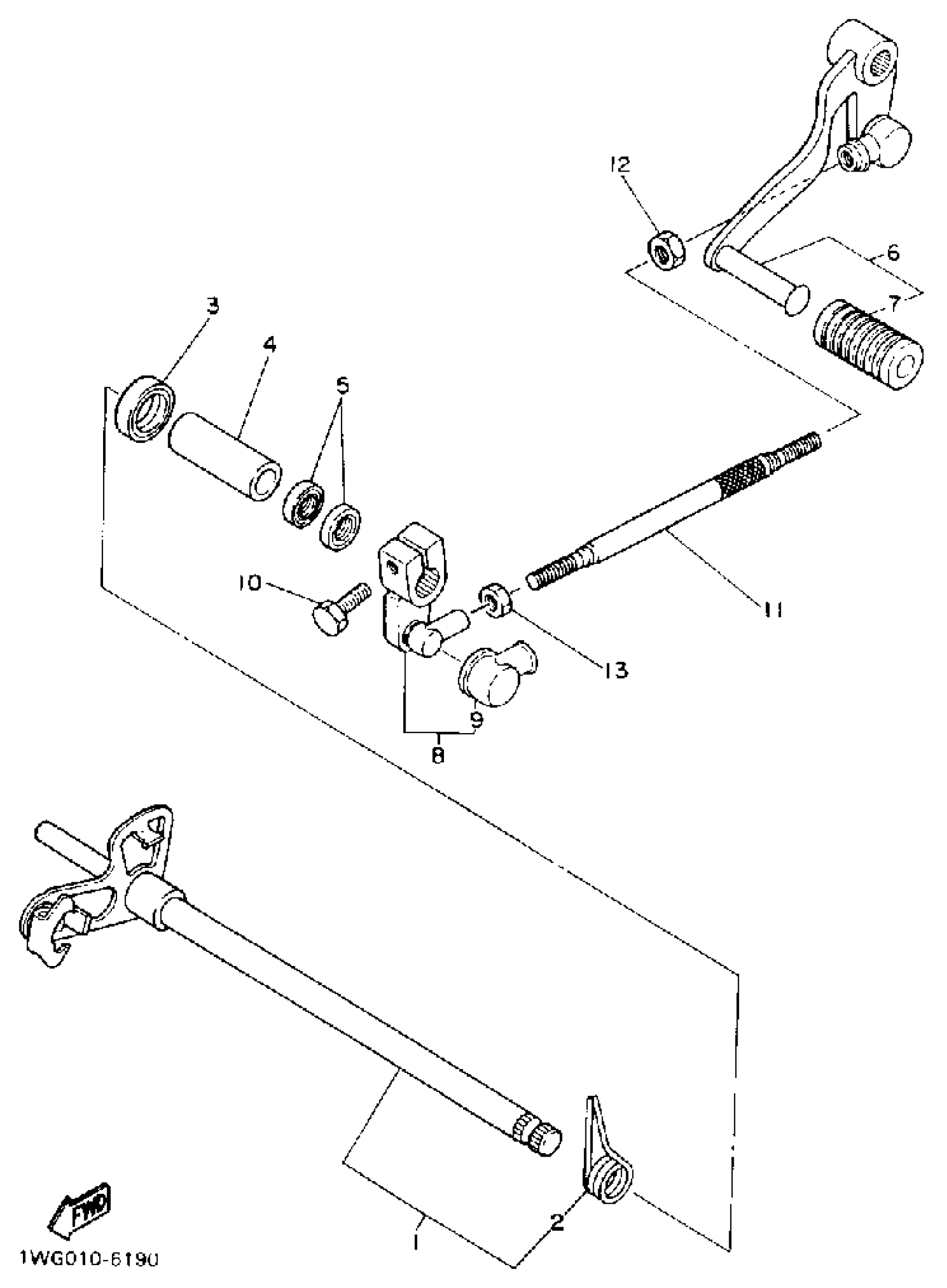

1990 Yamaha FZR400 (FZR400A) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY

3EN-18101-01-00

1
Out of stock

2

SPRING, TORSION

90508-32142-00

1

$4.82

In stock

3

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

4

SPACER (5F7)

90560-12211-00

1
Out of stock

5

OIL SEAL

93109-12075-00

1

$8.35

In stock

6

SHIFT PEDAL ASY

3HE-18110-01-00

1
Out of stock

7

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

8

ARM, SHIFT

1WG-18112-01-00

1
Out of stock

9

COVER, DUST

2H9-18154-00-00

1
Out of stock

10

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

11

ROD, SHIFT

1WG-18115-02-00

1
Out of stock

12

NUT (2H9)

90170-06228-00

1

$5.20

In stock

13

NUT(650)

95380-06700-00

1

$6.17

In stock
