1990 Yamaha FZR400 (FZR400A) Crankcase Diagram

← All diagrams

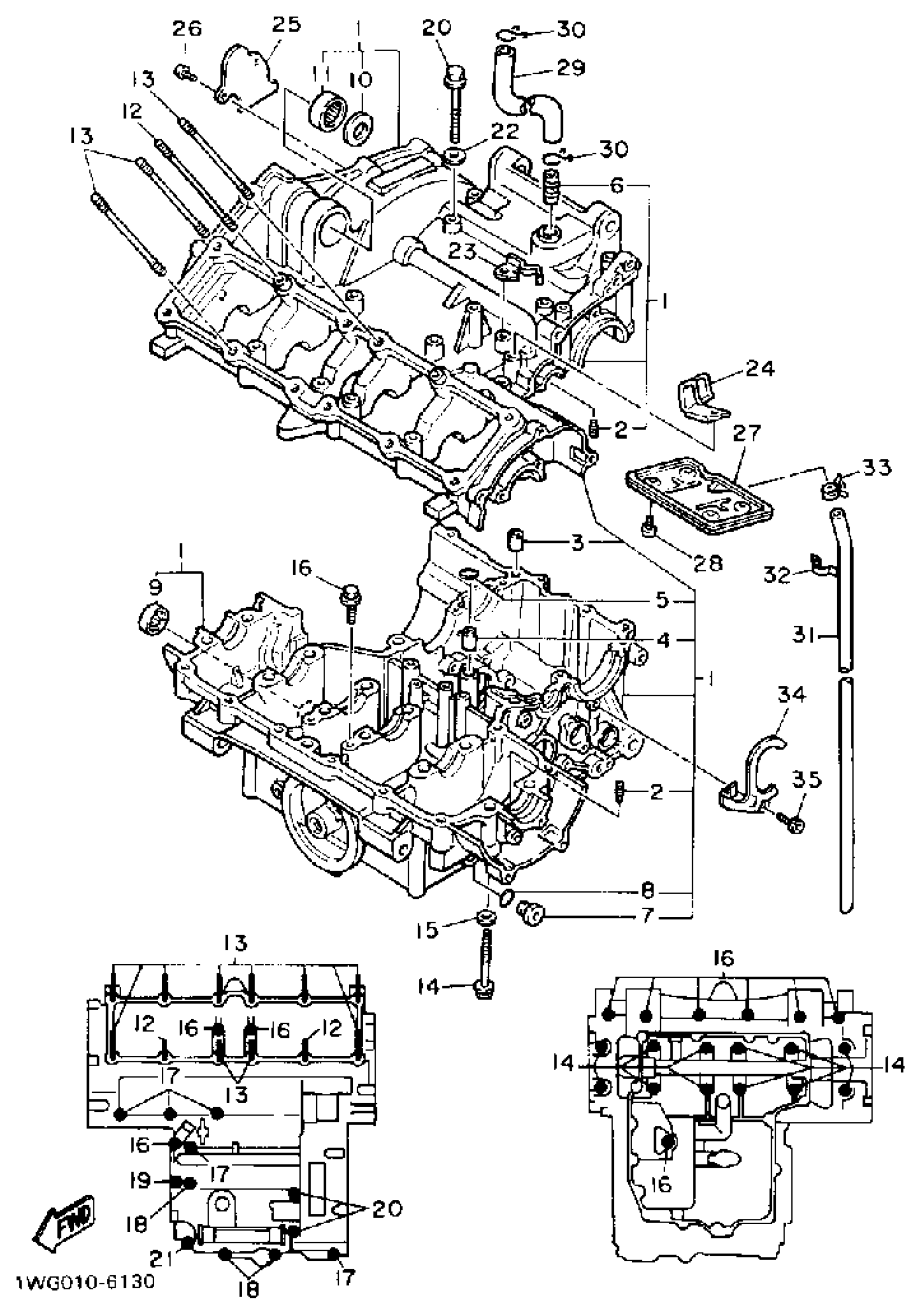

Find the part on the Crankcase diagram for your 1990 Yamaha FZR400 (FZR400A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha FZR400 (FZR400A) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

1WG-15100-01-00

1
Out of stock

2

NOZZLE 1

11H-15138-00-00

—
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

. NOZZLE 1

1HX-15138-00-00

1
Out of stock

5

O-RING (256)

93210-12152-00

1

$6.72

In stock

6

PIPE, BREATHER 2

371-11167-01-00

1

$10.35

In stock

7

PLUG

36Y-15189-01-00

—

$12.03

In stock

8

O-RING (26H)

93210-16629-00

1
Out of stock

9

GAUGE, LEVEL

2H7-15361-00-00

1

$84.99

In stock

10

WASHER, PLATE(1WG)

90201-237K5-00

1
Out of stock

11

BRG,CYL-CAL ROLLER 21G NT

93315-32516-00

1
Out of stock

12

BOLT, STUD

90116-08486-00

1
Out of stock

13

BOLT, STUD

90116-08487-00

1
Out of stock

14

BOLT, WASHER BASED(1WG)

90105-08630-00

1
Out of stock

15

WASHER, PLATE(1WG)

90201-087K3-00

1
Out of stock

16

BOLT, FLANGE

95817-06040-00

—

$4.54

In stock

17

BOLT, FLANGE

95817-06050-00

—
Out of stock

18

BOLT, FLANGE

95817-06070-00

—
Out of stock

19

BOLT, FLANGE

95817-06080-00

—
Out of stock

20

BOLT, FLANGE

95817-06090-00

—
Out of stock

21

BOLT, FLANGE(JN5)

95817-08070-00

—

$3.20

In stock

22

GASKET (4V2)

90430-06166-00

—

$3.45

In stock

23

CLAMP

90465-10307-00

1
Out of stock

24

CLAMP

90465-10308-00

1
Out of stock

25

PLATE, BREATHER

(1WG-11165-00-00)

1
Out of stock

26

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

27

PLATE, BREATHER 2

(1WG-11145-00-00)

1
Out of stock

28

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

29

PIPE, BREATHER 1

1WG-11166-00-00

1
Out of stock

30

CLIP (371)

90467-14015-00

—

$7.51

In stock

31

HOSE (L370)

90445-112E1-00

—

$20.43

In stock

32

CLAMP(1HX)

90465-06289-00

—
Out of stock

33

CLIP

90467-10038-00

—

$1.51

In stock

34

PLATE, BEARING COVER

1WG-15381-00-00

1
Out of stock

35

BOLT,SOCKET

91317-06012-00

—

$6.17

In stock
