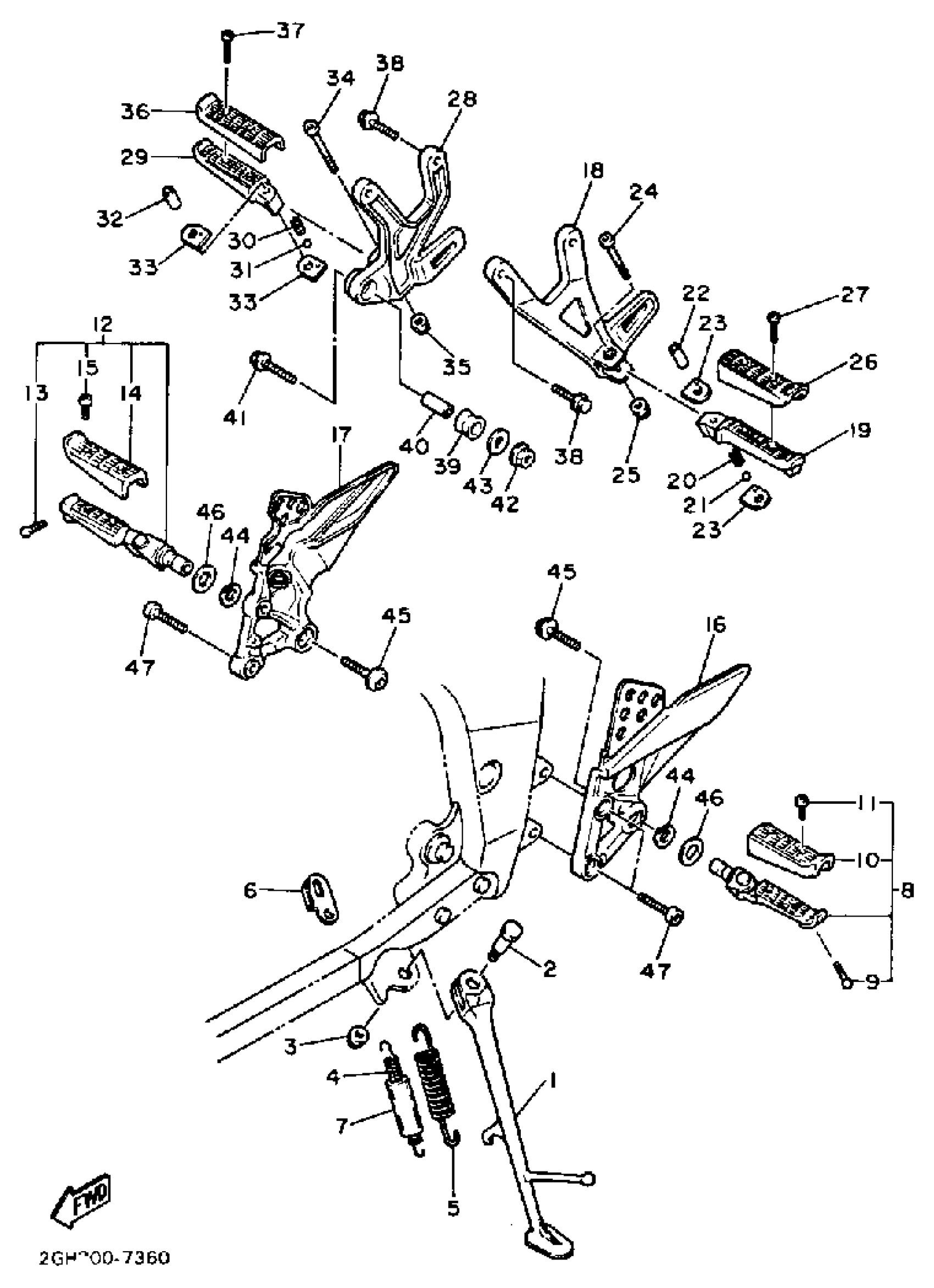

Yamaha FZR1000TC (FZR1000 CA) 1987 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

2GH-27311-00-00

Unavailable

2

BOLT(2GH)

90109-104E6-00

$9.49

3

NUT, U

90185-10037-00

$9.49

4

SPRING, TENSION (4K0)

90506-18224-00

$5.60

5

SPRING, TENSION (4K0)

90506-26225-00

$11.49

6

LINK, SIDE STAND

3VD-27315-00-00

$7.99

7

GUIDE, SIDE STAND

1TX-27351-00-00

Unavailable

8

FRONT FOOTREST ASSEMBLY (LEFT)

2GH-27410-00-00

Unavailable

9

BOLT

90109-08177-00

$10.49

10

COVER, FOOTREST

2GH-27413-00-00

$45.99

11

SCREW, PAN HEAD

98507-05014-00

$8.49

12

FRONT FOOTREST ASSEMBLY (RIGHT)

2GH-27420-00-00

Unavailable

13

BOLT

90109-08177-00

$10.49

14

COVER, FOOTREST

2GH-27413-00-00

$45.99

15

SCREW, PAN HEAD

98507-05014-00

$8.49

16

BRACKET 2

2GH-27442-00-00

Unavailable

17

BRACKET 3

2GH-27443-00-00

Unavailable

18

BRACKET 4

2GH-2741L-00-00

Unavailable

19

FOOTREST, REAR 1

4BR-27431-01-00

Unavailable

20

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

21

BALL

93501-04011-00

Unavailable

22

COLLAR (10L)

90387-061G0-00

Unavailable

23

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

24

BOLT, SOCKET

91314-06045-00

Unavailable

25

NUT, SELF-LOCKING

95617-06100-00

Unavailable

26

COVER, FOOTREST

2GH-27413-00-00

$45.99

27

SCREW, PAN HEAD

98507-05014-00

$8.49

28

BRACKET 5

2GH-2742L-00-00

Unavailable

29

FOOTREST, REAR 2

4BR-27441-00-00

Unavailable

30

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

31

BALL

93501-04011-00

Unavailable

32

COLLAR (10L)

90387-061G0-00

Unavailable

33

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

34

BOLT, SOCKET

91314-06045-00

Unavailable

35

NUT, SELF-LOCKING

95617-06100-00

Unavailable

36

COVER, FOOTREST

2GH-27413-00-00

$45.99

37

SCREW, PAN HEAD

98507-05014-00

$8.49

38

BOLT, FLANGE(4GY)

95024-08025-00

Unavailable

39

DAMPER, MUFFLER BRACKET

2H7-27414-00-00

Unavailable

40

COLLAR (2H7)

90387-10636-00

Unavailable

41

BOLT, WASHER BASED(4KM)

90105-10778-00

Unavailable

42

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

43

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

44

WASHER,CLAW

90214-10056-00

Unavailable

45

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

46

WASHER, WAVE(46X)

90206-17084-00

Unavailable

47

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-08199-00

Unavailable
