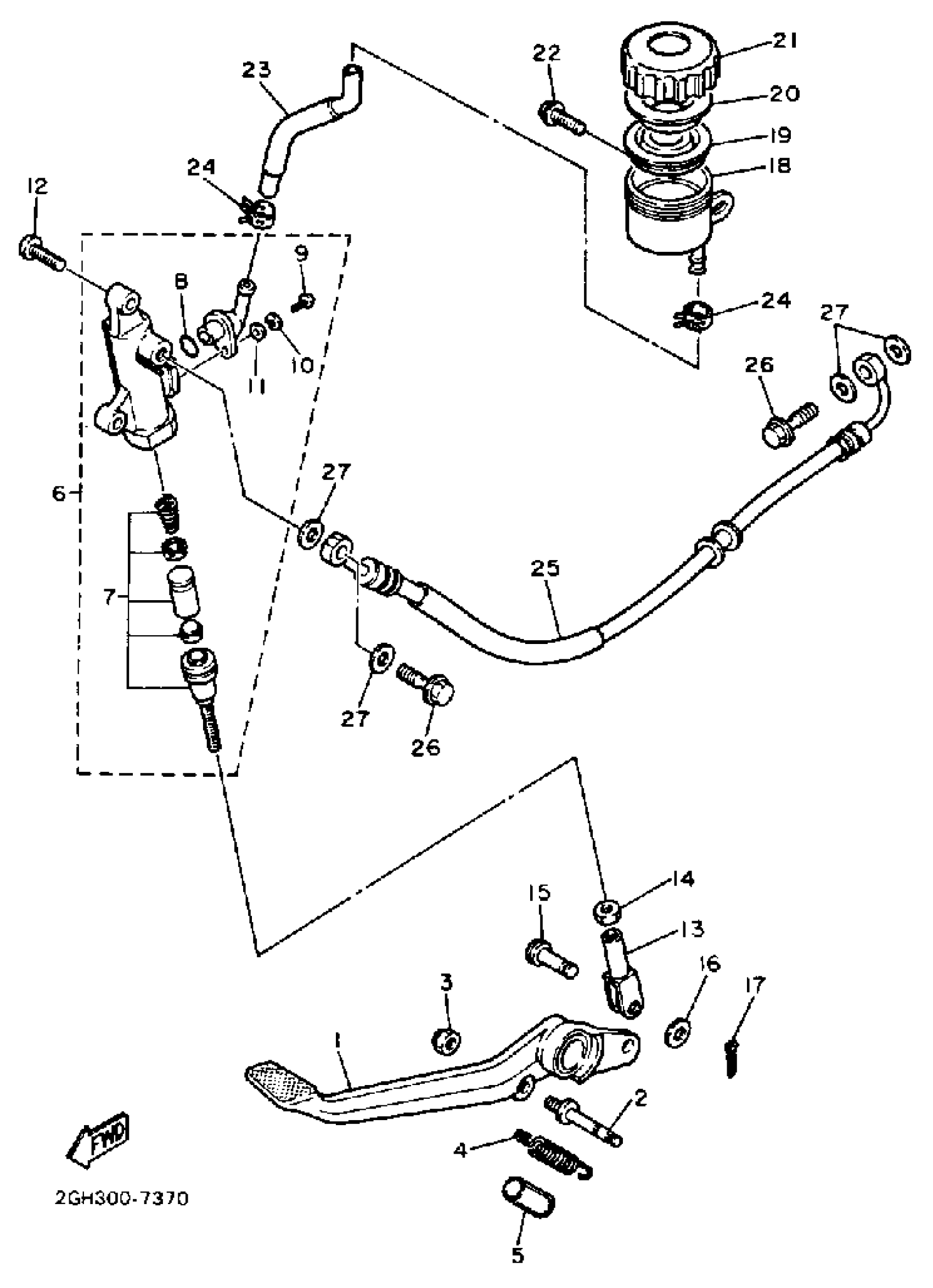

Yamaha FZR1000TC (FZR1000 CA) 1987 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

2GH-27211-00-00

Unavailable

2

PIN, PEDAL CRK

1KT-27813-00-00

Unavailable

3

NUT, U

95617-08100-00

$9.49

4

SPRING, TORSION

90508-20737-00

Unavailable

5

HOSE(3GM)

90446-17346-00

$5.60

6

MSTR CYLINDER ASSEMBLYASSY

2GH-25850-50-00

Unavailable

7

CYLINDER KIT, MASTER

2GH-W0042-50-00

Unavailable

8

O-RING (22U)

93210-15566-00

$7.49

9

SCREW, PAN HEAD

98517-04012-00

$3.88

10

WASHER(6TA)

92907-04100-00

$8.49

11

WASHER(JF2)

92907-04600-00

$1.71

12

BOLT, BUTTON

92017-08030-00

$9.49

13

JOINT

31A-27222-00-00

$43.99

14

. NUT

95380-08700-00

Unavailable

15

PIN W/HOLE 307181180000

90240-08013-00

$8.49

16

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

17

PIN, COTTER

91490-20025-00

Unavailable

18

TANK, RESERVOIR

31A-25894-01-00

Unavailable

19

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

20

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

21

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

22

SCREW, WITH WASHER (36X)

90159-06085-00

Unavailable

23

HOSE, RESERVOIR

(2GH-25895-00-00)

Unavailable

24

CLIP (5K4)

90467-14057-00

Unavailable

25

HOSE BRK 1

99999-02673-00

Unavailable

26

BOLT, UNION(3GM)

90401-10159-00

Unavailable

27

WASHER, PLATE(481)

90201-10118-00

Unavailable
