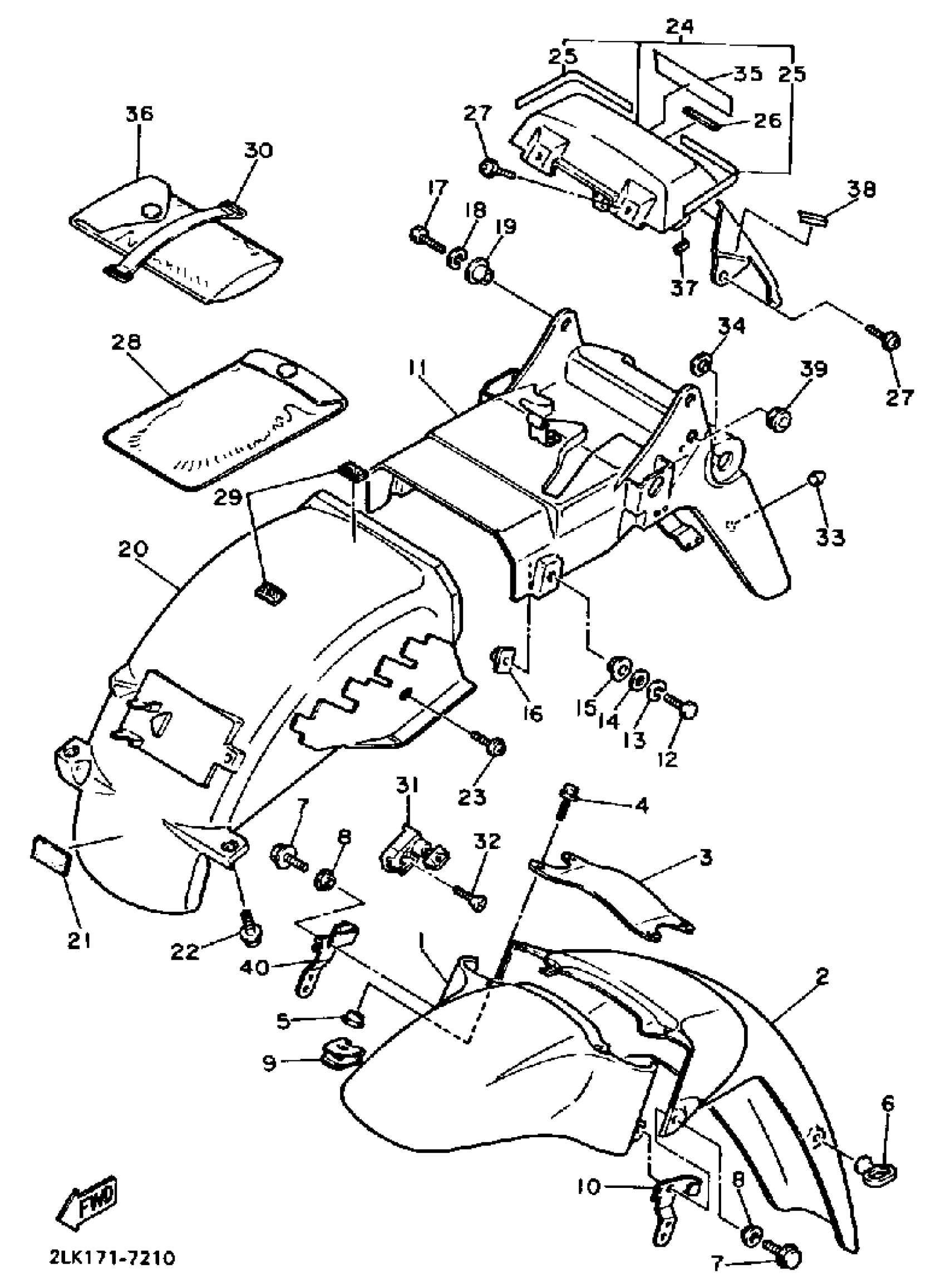

Yamaha FZR1000TC (FZR1000 CA) 1987 FENDER Diagram
#
1
FENDER, FRONT
2GH-21511-00-GE
Unavailable
2
FENDER, FRONT 2
2GH-21556-00-GE
Unavailable
3
BRACE, FORK
47X-2313A-00-00
Unavailable
7
. BOLT, FLANGE
95027-06020-00
Unavailable
9
NUT, SPRING
90183-08043-00
Unavailable
10
HOLDER, BRKE HOSE 1
2LJ-25875-00-00
Unavailable
11
REAR FENDER
2LJ-W2161-00-00
Unavailable
13
WASHER, SPRING
92995-06100-00
Unavailable
16
PLATE
31A-14477-10-00
Unavailable
17
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
COLLAR (8G8)
90387-06648-00
Unavailable
20
GUARD, MUD
2GH-21629-00-00
Unavailable
21
DAMPER 1
2JG-21638-00-00
Unavailable
22
BOLT, WITH WASHER
90119-06226-00
Unavailable
23
SCREW, WITH WASHER (5U8)
90159-06056-00
Unavailable
24
COVER, REAR FENDER
2GH-W2165-00-0X
Unavailable
25
. GRAPHIC
2GH-21660-00-00
Unavailable
26
SEAL 4
J44-78248-00-00
Unavailable
27
SCREW, WITH WASHER (517).
90159-06013-00
Unavailable
28
POUCH
4K5-28186-00-00
Unavailable
29
HOOK
4K5-2814E-10-00
Unavailable
30
BAND, BATTERY
26L-82131-00-00
Unavailable
31
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
32
SCREW (3H1)
90149-06150-00
Unavailable
33
PLUG
90338-07018-00
Unavailable
34
WASHER, CLAW
90214-12033-00
Unavailable
35
EMBLEM, YAMAHA
99244-00080-00
Unavailable
36
TOOL KIT
2GH-28100-20-00
Unavailable
37
SEAL 1
2GH-21732-00-00
Unavailable
38
SEAL 2
2GH-21735-00-00
Unavailable
39
GROMMET
90480-10258-00
Unavailable
40
HOLDER, BRKE HOSE 2
2LJ-25876-00-00
Unavailable
