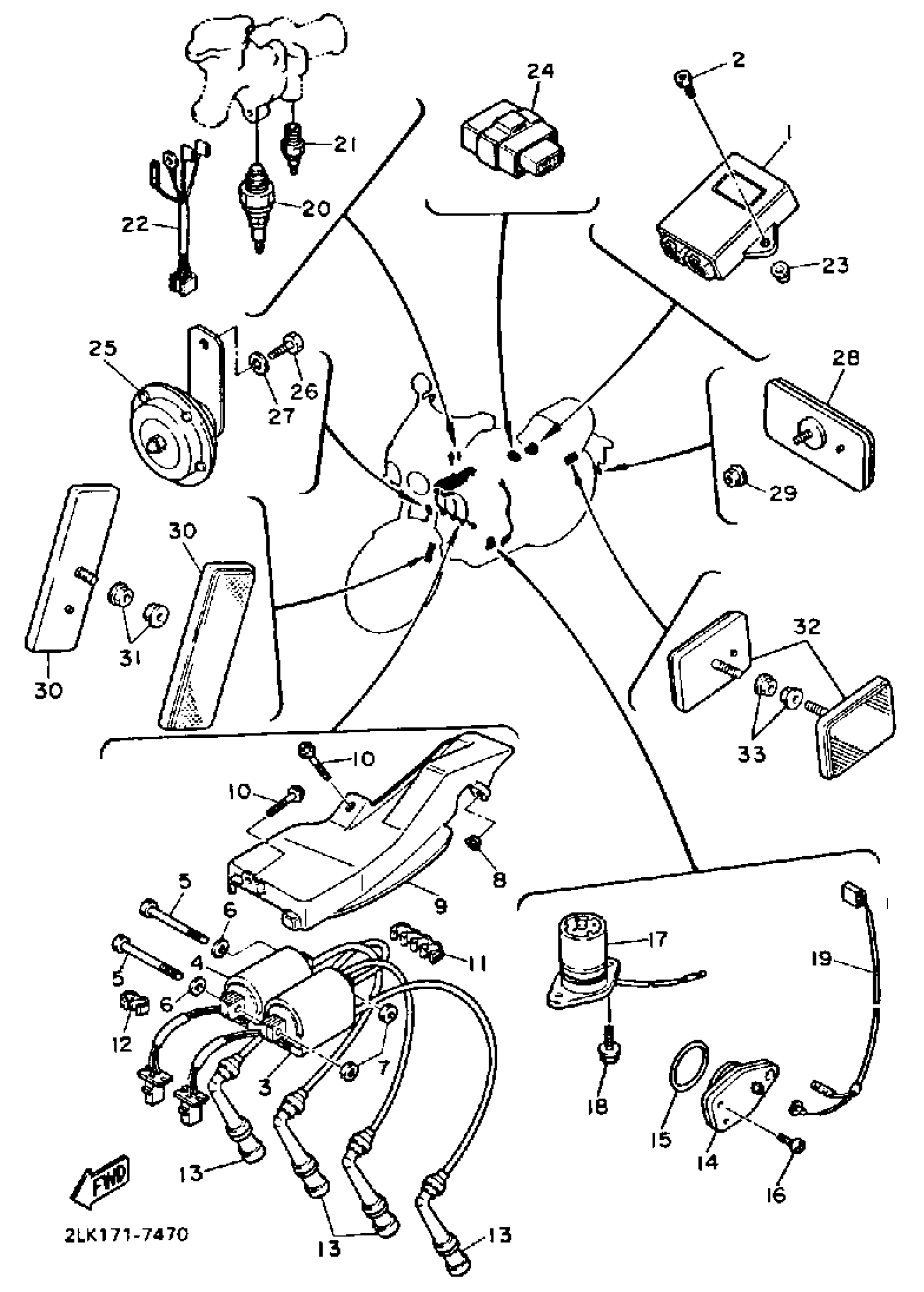

Yamaha FZR1000TC (FZR1000 CA) 1987 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSEMBLY 1

2GH-82305-10-00

Unavailable

1

IGNITOR UNIT ASSEMBLY

2LJ-82305-10-00

Unavailable

2

BOLT, HEXAGON SOCKET HEAD

90110-06158-00

Unavailable

3

IGNITION COIL ASSY

1WG-82310-09-00

$263.99

4

IGNITION COIL ASSY

1WG-82310-09-00

$263.99

5

BOLT, WITH WASHER

97527-06565-00

$1.54

6

WASHER(6TA)

92907-06600-00

$2.72

7

NUT(6TA)

95317-06600-00

$3.55

8

GROMMET

90480-10190-00

Unavailable

9

COVER 1

2GH-28219-00-00

Unavailable

10

SCREW, WITH WASHER (517).

90159-06013-00

$9.49

11

CLAMP, WIRE HARNESS

2GH-21335-00-00

Unavailable

12

CLAMP(6M7)

90464-09M31-00

$8.49

13

PLUG CAP ASSY

2KT-82370-00-00

$122.99

14

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

15

O-RING (371)

93210-29196-00

Unavailable

16

SCREW, PAN

98507-06014-00

Unavailable

17

OIL LEVEL GAUGE ASSY

4H7-85720-02-00

Unavailable

18

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

19

WIRE, SUB LEAD

1AE-82509-00-00

Unavailable

20

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

21

THERMO UNIT

11H-83591-00-00

Unavailable

22

WIRE, SUB LEAD

2GH-82509-00-00

Unavailable

23

PLATE

31A-14477-10-00

Unavailable

24

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

25

HORN

4V8-83371-20-00

Unavailable

26

BOLT, HEXAGON

97027-08012-00

Unavailable

27

WASHER(JN5)

92907-08100-00

Unavailable

28

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

29

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

30

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

31

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

32

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

33

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
