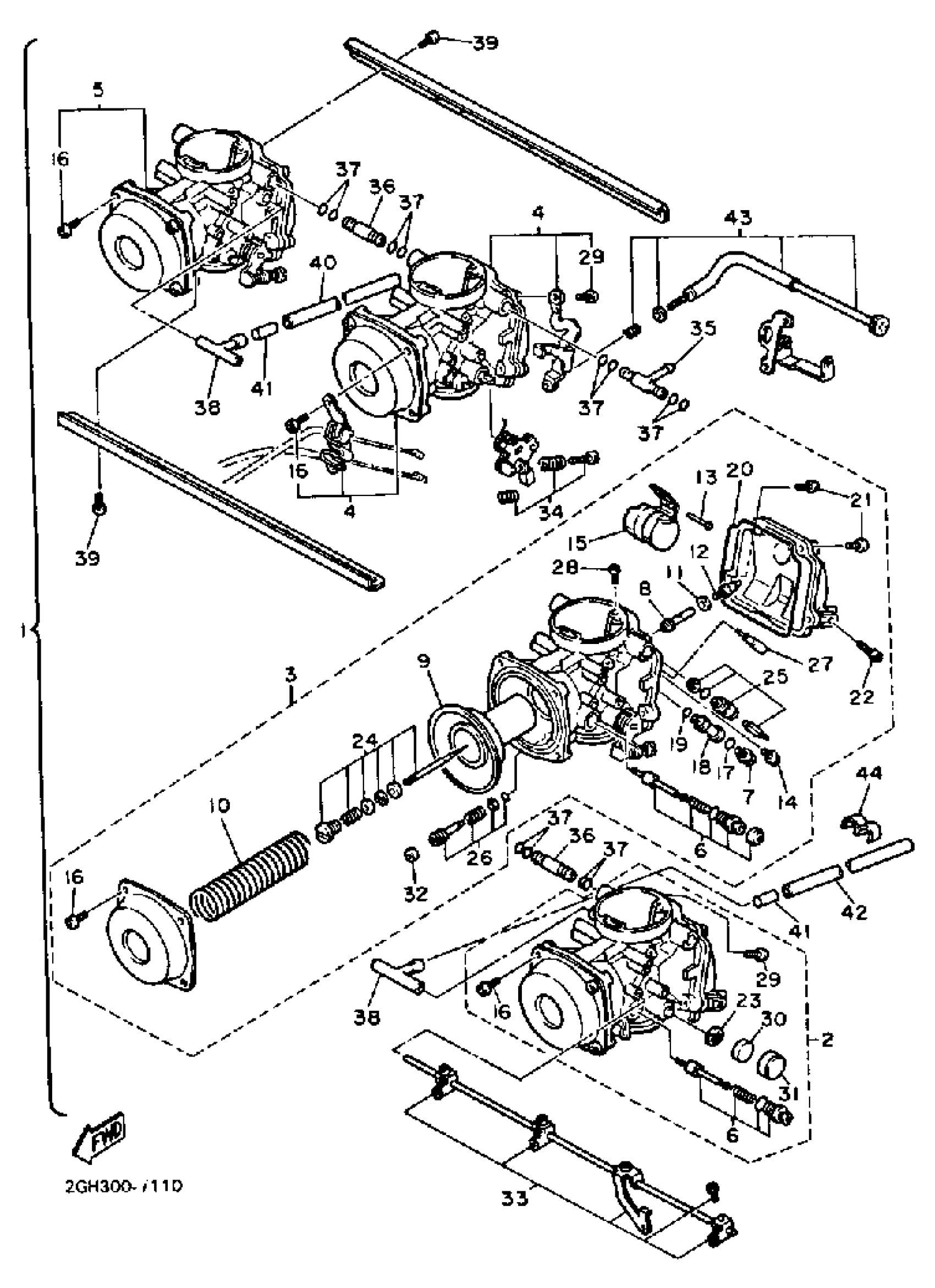

Yamaha FZR1000TC (FZR1000 CA) 1987 CARBURETOR Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

2LH-14900-00-00

Unavailable

1

UNAVAILABLE IN PRICE BOOK

2LJ-14900-00-00

Unavailable

2

. CARBURETOR ASSEMBLY 1

2LH-14901-00-00

Unavailable

2

. CARBURETOR ASSEMBLY 1

2LJ-14901-00-00

Unavailable

3

. UNAVAILABLE IN PRICE BOOK

[2L-H1490-20-00

Unavailable

3

. UNAVAILABLE IN PRICE BOOK

[2L-J1490-20-00

Unavailable

4

. CARBURETOR ASSEMBLY 3

2LH-14903-00-00

Unavailable

4

. UNAVAILABLE IN PRICE BOOK

[2L-J1490-30-00

Unavailable

5

. CARBURETOR ASSEMBLY 4

2LH-14904-00-00

Unavailable

5

. UNAVAILABLE IN PRICE BOOK

[2L-J1490-40-00

Unavailable

6

.. STARTER SET

1AE-1410A-00-00

Unavailable

6

STARTER SET

1FN-1410A-00-00

$79.99

7

JET, MAIN (#105)

620-14231-21-A0

$15.49

7

JET, MAIN (#110)

620-14231-22-A0

$13.49

7

.. JET, MAIN#1075

620-1423A-72-A0

Unavailable

8

.. NOZZLE, MAIN

1AE-14141-90-00

Unavailable

9

.. DIAPHRAGM ASSEMBLY

2LH-14940-00-00

Unavailable

10

.. SPRING, DIAPHRAGM

2LH-14933-00-00

Unavailable

11

WASHER,MAIN JET

137-14153-00-00

Unavailable

12

SCREW

1AE-14565-00-00

Unavailable

13

PIN, FLOAT

353-14186-00-00

Unavailable

14

SCREW

1FN-14565-00-00

Unavailable

15

.. FLOAT

1WG-14985-00-00

Unavailable

16

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

17

O-RING

1AE-14227-00-00

Unavailable

18

.. HOLDER

2LH-14261-00-00

Unavailable

19

GASKET

1AE-14237-00-00

Unavailable

20

O-RING

1FN-14147-00-00

Unavailable

21

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

21

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

22

PLUG, DRAIN

12R-14191-00-00

Unavailable

23

CLIP

812-14137-00-00

Unavailable

24

.. NEEDLE SET

2LH-1490J-00-00

Unavailable

24

.. NEEDLE SET

2LH-1490J-10-00

Unavailable

25

NEEDLE VALVE SET

1FN-14107-15-00

Unavailable

26

PILOT SCREW SET

12R-14105-00-00

Unavailable

27

JET, PILOT (# 17.5)

3H1-14142-17-00

Unavailable

28

.. JET, MAIN (#1175)

830-1423A-74-00

Unavailable

29

SCREW, PAN HEAD

98517-04016-00

Unavailable

30

CAP

36X-14169-00-00

Unavailable

31

.. CAP

1AE-14169-00-00

Unavailable

32

CAP

3F9-14118-00-00

Unavailable

33

. STARTER LEVER SET 1

2LH-1490L-00-00

Unavailable

34

. UNAVAILABLE IN PRICE BOOK

[1F-N1490-K0-10

Unavailable

35

. NIPPLE

1HX-14251-00-00

Unavailable

36

. NIPPLE

16H-14251-00-00

Unavailable

37

O-RING

36Y-14147-00-00

Unavailable

38

. PIPE

1AE-14197-00-00

Unavailable

39

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

40

PIPE

(2LH-14197-00-00)

Unavailable

41

. RING

1FN-14918-00-00

Unavailable

42

PIPE

(2LH-14197-00-00)

Unavailable

42

HOSE

50H-14987-00-00

Unavailable

43

. THROTTLE SCREW SET

2LE-14103-00-00

Unavailable

44

CLAMP(6M7)

90464-09M31-00

Unavailable
