AIR INDUCTION SYSTEM CALIFORNIA MODEL ONLY

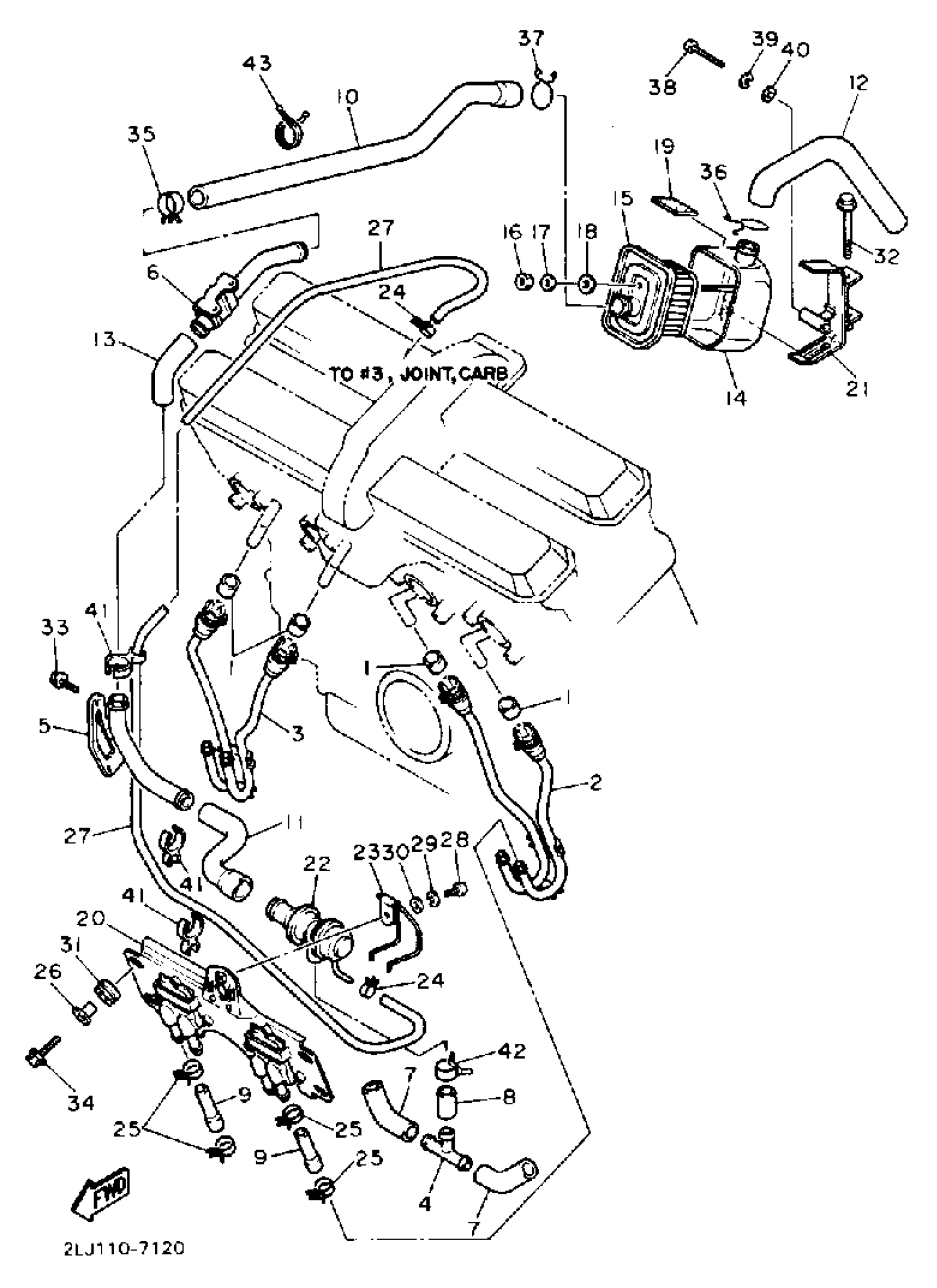

Yamaha FZR1000TC (FZR1000 CA) 1987 AIR INDUCTION SYSTEM CALIFORNIA MODEL ONLY Diagram
#
1
GASKET, MUFFLER
42H-14714-10-00
Unavailable
2
UNAVAILABLE IN PRICE BOOK
[2L-J1487-10-00
Unavailable
3
PIPE 2
(2LJ-14872-00-00)
Unavailable
4
PIPE 4
[2L-J1487-40-00
Unavailable
5
UNAVAILABLE IN PRICE BOOK
[2L-J1487-50-00
Unavailable
6
UNAVAILABLE IN PRICE BOOK
[2L-J1487-60-00
Unavailable
7
HOSE, BEND 1
[2L-J1488-10-00
Unavailable
8
HOSE, BEND 2
(2LJ-14882-00-00)
Unavailable
9
HOSE, BEND 3
[2L-J1488-30-00
Unavailable
10
UNAVAILABLE IN PRICE BOOK
[2L-J1488-40-00
Unavailable
11
UNAVAILABLE IN PRICE BOOK
[2L-J1488-50-00
Unavailable
12
UNAVAILABLE IN PRICE BOOK
[2L-J1488-60-00
Unavailable
13
UNAVAILABLE IN PRICE BOOK
[2L-J1414-80-00
Unavailable
14
CASE, AIR CLEANER
42H-14857-00-00
Unavailable
15
CAP, CASE
42H-14858-00-00
Unavailable
16
NUT, HEXAGON (663)
95380-05600-00
Unavailable
17
. WASHER, PLAIN
92990-05200-00
Unavailable
18
WASHER, PLATE (463)
90202-05057-00
Unavailable
19
DAMPER
5H0-8235Y-M0-00
Unavailable
20
UNAVAILABLE IN PRICE BOOK
[2L-J1480-80-00
Unavailable
21
UNAVAILABLE IN PRICE BOOK
[2L-J1486-80-00
Unavailable
22
AIR CUT VALVE ASSEMBLY
1TA-14840-00-00
Unavailable
23
CLAMP (1RV)
90462-20188-00
Unavailable
24
CLIP(41W)
90467-08092-00
Unavailable
25
CLIP
90468-08104-00
Unavailable
26
COLLAR 437216330000
90387-07391-00
Unavailable
27
HOSE
(90445-094E8-00)
Unavailable
28
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
29
WASHER, SPRING
92907-06100-00
Unavailable
30
WASHER(6TA)
92907-06600-00
Unavailable
31
GROMET (3X3)
90480-14229-00
Unavailable
32
BOLT, FLANGE
95817-06055-00
Unavailable
33
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
34
. BOLT, FLANGE
95027-06020-00
Unavailable
35
CLIP (23E)
90467-20085-00
Unavailable
36
CLIP (21V)
90467-22080-00
Unavailable
37
CLIP(2LJ)
90467-26111-00
Unavailable
38
SCREW, PAN
98507-06014-00
Unavailable
39
WASHER, SPRING
92995-06100-00
Unavailable
40
WASHER, PLAIN (646)
92990-06600-00
Unavailable
41
UNAVAILABLE IN PRICE BOOK
[90-46419-11-00
Unavailable
42
CLIP(3TB)
90467-17128-00
Unavailable
43
CLAMP (8M1)
90464-30040-00
Unavailable
