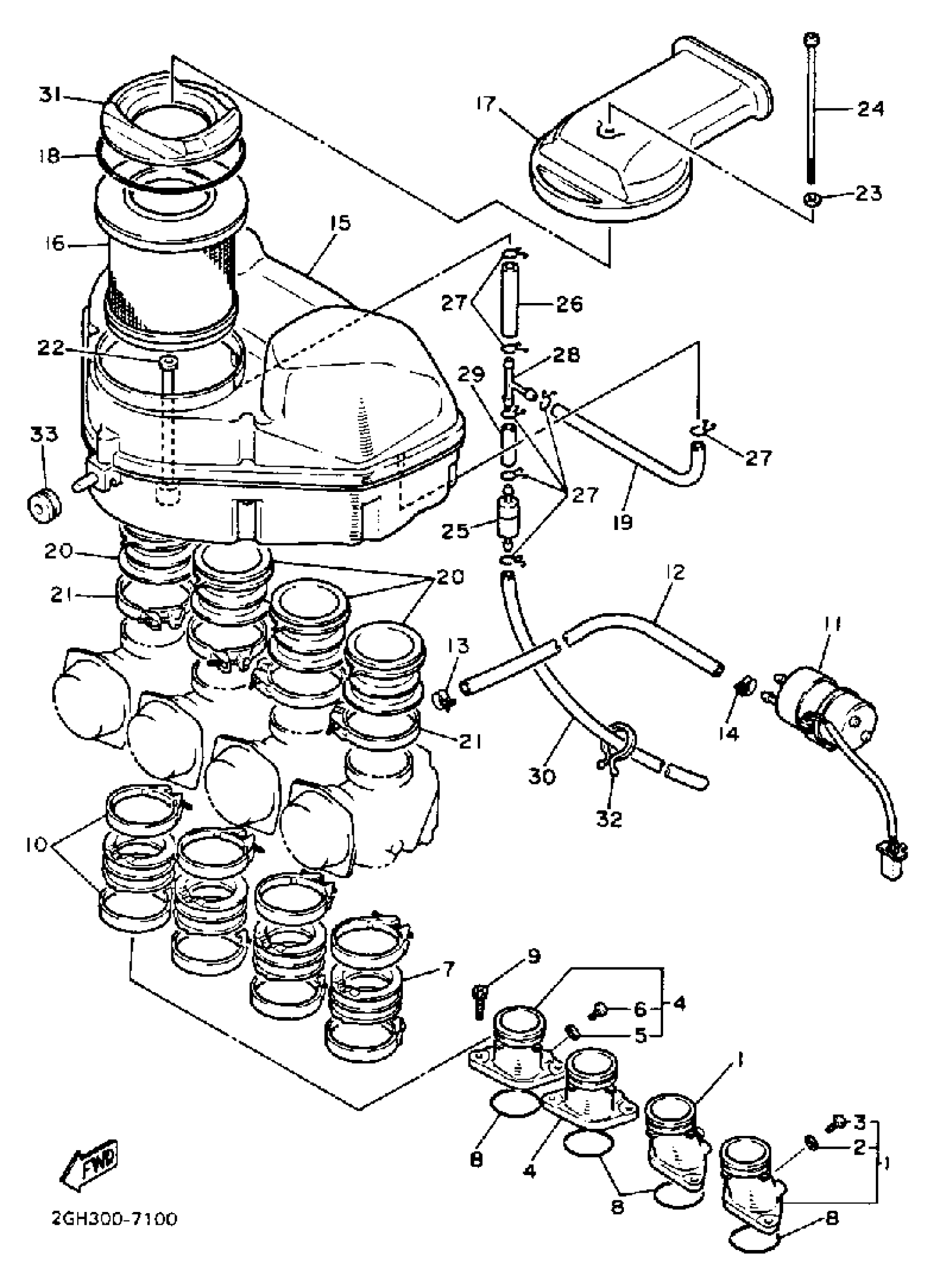

Yamaha FZR1000TC (FZR1000 CA) 1987 AIR FILTER NONCALIFORNIA MODEL Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

2GH-13586-00-00

Unavailable

2

GASKET 256113960000

90430-06014-00

Unavailable

3

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

4

JOINT, CARBURETOR 2

2GH-13596-00-00

Unavailable

5

GASKET 256113960000

90430-06014-00

Unavailable

6

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

7

JOINT, CARB 3

2GH-13597-00-00

Unavailable

8

O-RING(36Y)

93210-40659-00

Unavailable

9

BOLT,SOCKET

91317-06020-00

Unavailable

10

HOSE CLAMP ASSY

90450-53005-00

Unavailable

11

FUEL PUMP COMP.

3CV-13907-00-00

Unavailable

12

HOSE

90445-112F1-00

Unavailable

13

HOSE CLAMP ASSY

90450-12002-00

Unavailable

14

CLIP(3BM)

90467-10135-00

$8.49

15

INACTIVE PART NUMBER ASSEMBLY

2GH-14401-00-00

Unavailable

16

ELEMENT, AIR CLEANER

1AE-14451-00-00

Unavailable

17

CAP, CLEANER CASE 2

2GH-14422-00-00

Unavailable

18

SEAL

1VJ-14462-00-00

Unavailable

19

HOSE (L210)

90445-110F5-00

Unavailable

20

JOINT, AIR CLEANER 1

2GH-14453-01-00

Unavailable

21

HOSE CLAMP ASSY

90450-58002-00

Unavailable

22

COLLAR

1AE-14443-00-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

SCREW, PAN HEAD(4AS)

98517-06160-00

Unavailable

25

FILTER ASSY

4X7-2149Y-00-00

Unavailable

26

HOSE (L198)

90445-11293-00

Unavailable

27

CLIP

90467-100A1-00

Unavailable

28

WAY 3 (10L)

90413-07007-00

Unavailable

29

HOSE (L30)

90445-11795-00

Unavailable

30

HOSE (L400)

90445-116K9-00

Unavailable

31

SILENSER, INNER

2GH-14432-00-00

Unavailable

32

CLAMP

90464-25267-00

Unavailable

33

GROMMET (509)

90480-18171-00

Unavailable
