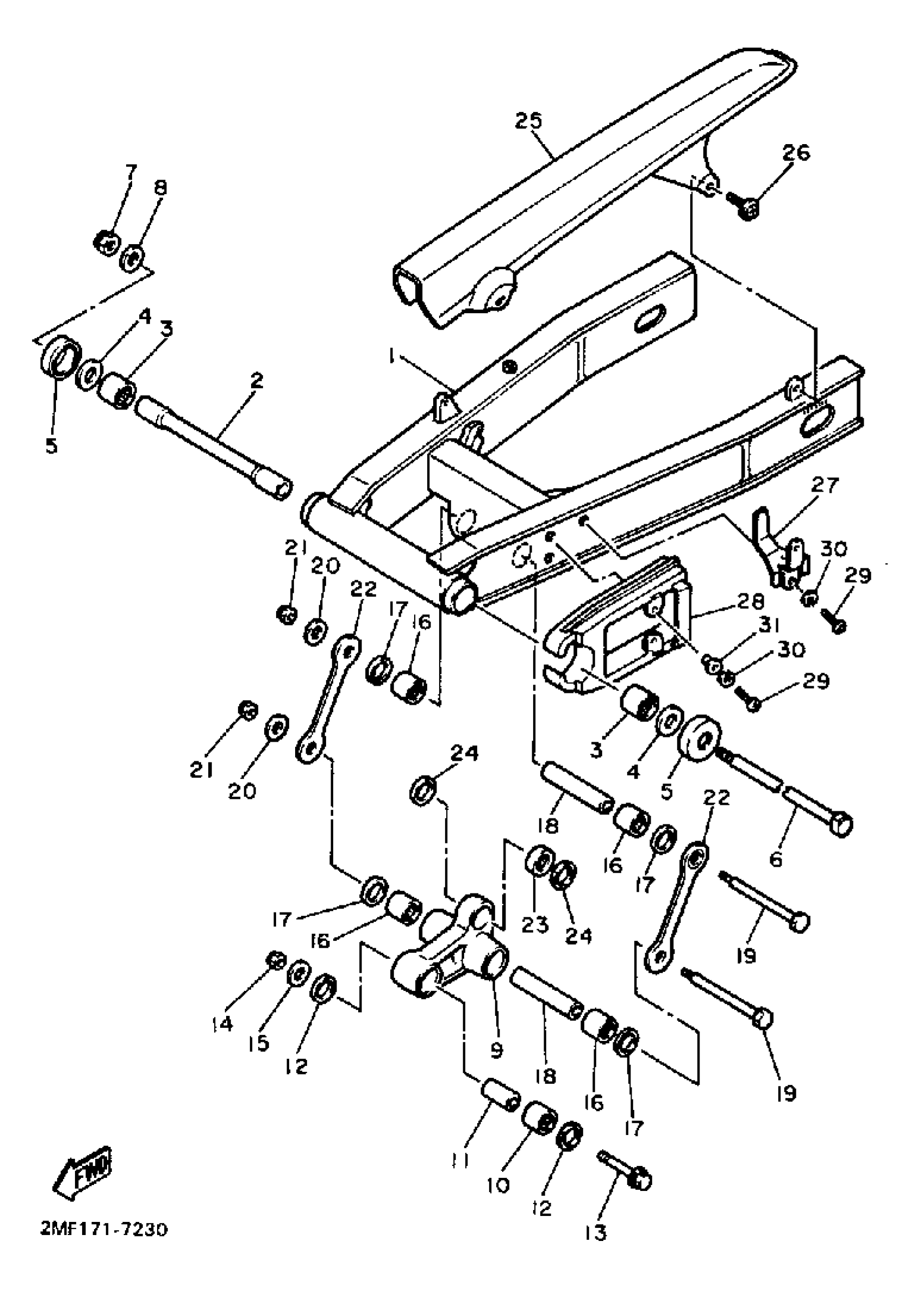

Yamaha FZ700TC (FZ700 CA) 1987 SWING ARM Diagram

#

Description
Price

1

REAR ARM

2KT-22110-00-00

Unavailable

2

BUSH

36Y-22184-00-00

Unavailable

3

BEARING, CYLINDRICAL(36Y)

93317-42550-00

Unavailable

4

SHIM

36Y-22127-00-00

Unavailable

5

COVER, THRUST 1

36Y-22128-00-00

Unavailable

6

SHAFT, PIVOT

1AE-22141-01-00

Unavailable

7

NUT, SELF-LOCKING (1J7)

90185-14070-00

$13.49

8

WASHER, PLATE(3FC)

90201-142M6-00

$9.49

9

ARM, RELAY

2KT-2217A-00-00

Unavailable

10

BEARING, CYLINDRICAL(2HJ)

93315-22046-00

Unavailable

11

COLLAR(2MF)

90387-100T8-00

Unavailable

12

OIL SEAL

93109-20076-00

$15.99

13

BOLT, WASHER BASED(4HM)

90105-10737-00

$26.99

14

NUT, U

95614-10100-00

$7.49

15

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

16

BEARING, CYLINDER.#17

93317-31759-00

Unavailable

17

OIL SEAL(38V)

93109-17048-00

Unavailable

18

COLLAR

90387-120T9-00

Unavailable

19

BOLT(2GH)

90101-12673-00

Unavailable

20

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

21

NUT, U (4PM)

95617-12100-00

Unavailable

22

ARM 1

(2KT-2217M-00-00)

Unavailable

23

BEARING(47X)

93399-99919-00

Unavailable

24

OIL SEAL(47X)

93101-16131-00

Unavailable

25

CASE, CHAIN

29L-22311-01-00

Unavailable

26

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

27

STAY, CHAIN CASE 1

2KT-22321-00-00

Unavailable

28

SEAL, GUARD

2KT-22151-00-00

Unavailable

29

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

COLLAR (8G8)

90387-06681-00

Unavailable
