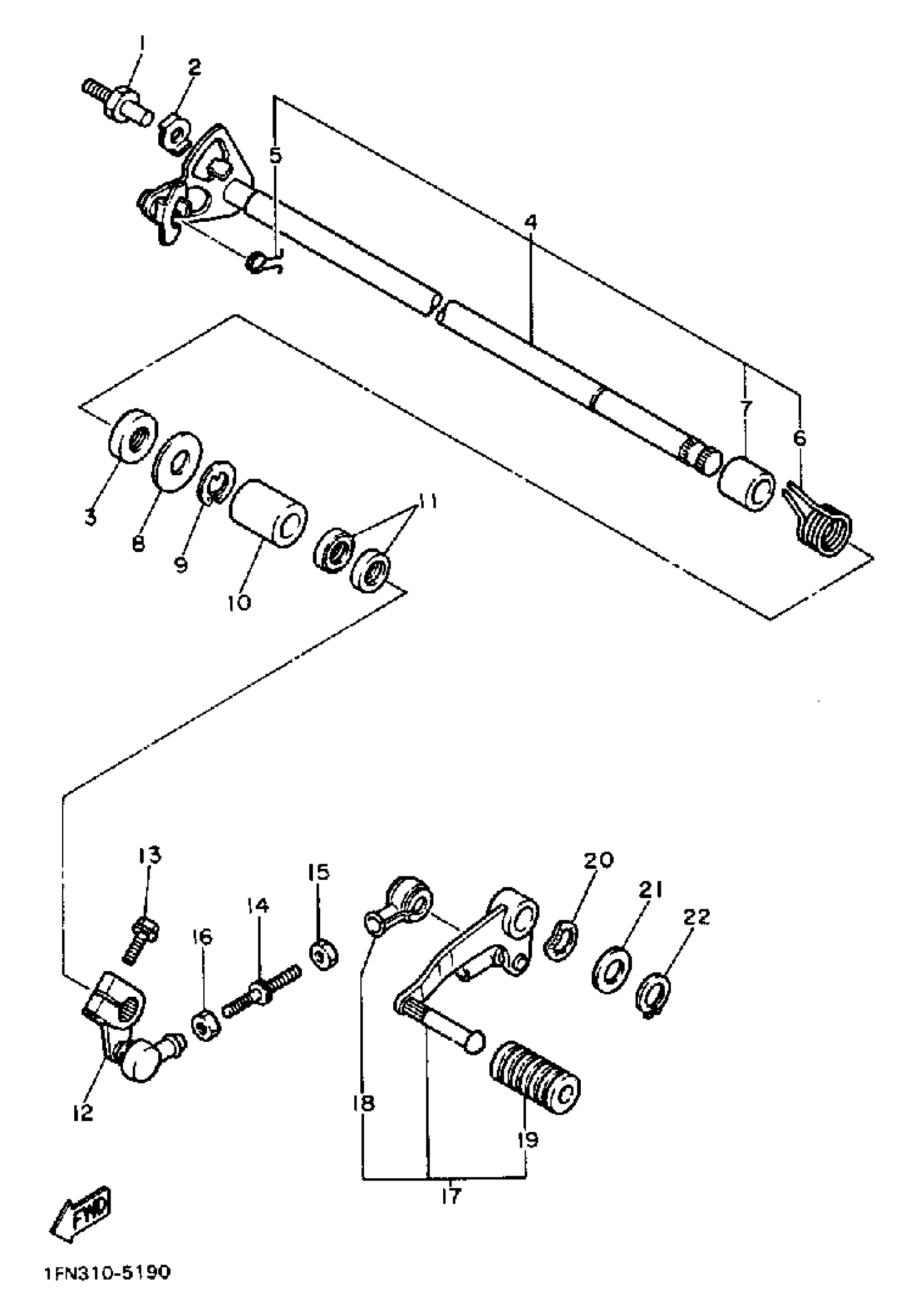

Yamaha FZ700TC (FZ700 CA) 1987 SHIFT SHAFT Diagram

#

Description
Price

1

STOPPER, SCREW

5VK-18127-00-00

Unavailable

2

WASHER, LOCK (583 SHIFT)

90215-08115-00

$7.49

3

SEAL, OIL (30X)

93102-12321-00

$12.49

4

SHIFT SHAFT ASY.1

1AE-18101-03-00

Unavailable

5

SPRING, TORSION (17W)

90508-10514-00

Unavailable

6

SPRING, TORSION

90508-32142-00

$5.60

7

. COLLAR

90387-114K8-00

Unavailable

8

WASHER, PLATE (353)

90201-12575-00

$8.49

9

CIRCLIP

99006-10600-00

$9.49

10

SPACER (3Y1)

90560-12191-00

$7.49

11

OIL SEAL

93109-12075-00

$10.49

12

ARM, SHIFT

2KW-18112-00-00

Unavailable

13

BOLT, FLANGE

95817-06020-00

$3.81

14

ROD, SHIFT

1AE-18115-00-00

Unavailable

15

NUT (2H9)

90170-06228-00

$9.49

16

NUT(JN5)

95317-06700-00

Unavailable

17

SHIFT PEDAL ASSEMBLY

1AE-18110-01-00

Unavailable

18

COVER, DUST

2H9-18154-00-00

Unavailable

19

COVER, CHANGE PEDAL

132-18113-01-00

Unavailable

20

WASHER, WAVE (17W)

90206-12074-00

Unavailable

21

WASHER, PLATE (5K7)

90201-124E4-00

Unavailable

22

CIRCLIP(10Y)

99009-12400-00

Unavailable
