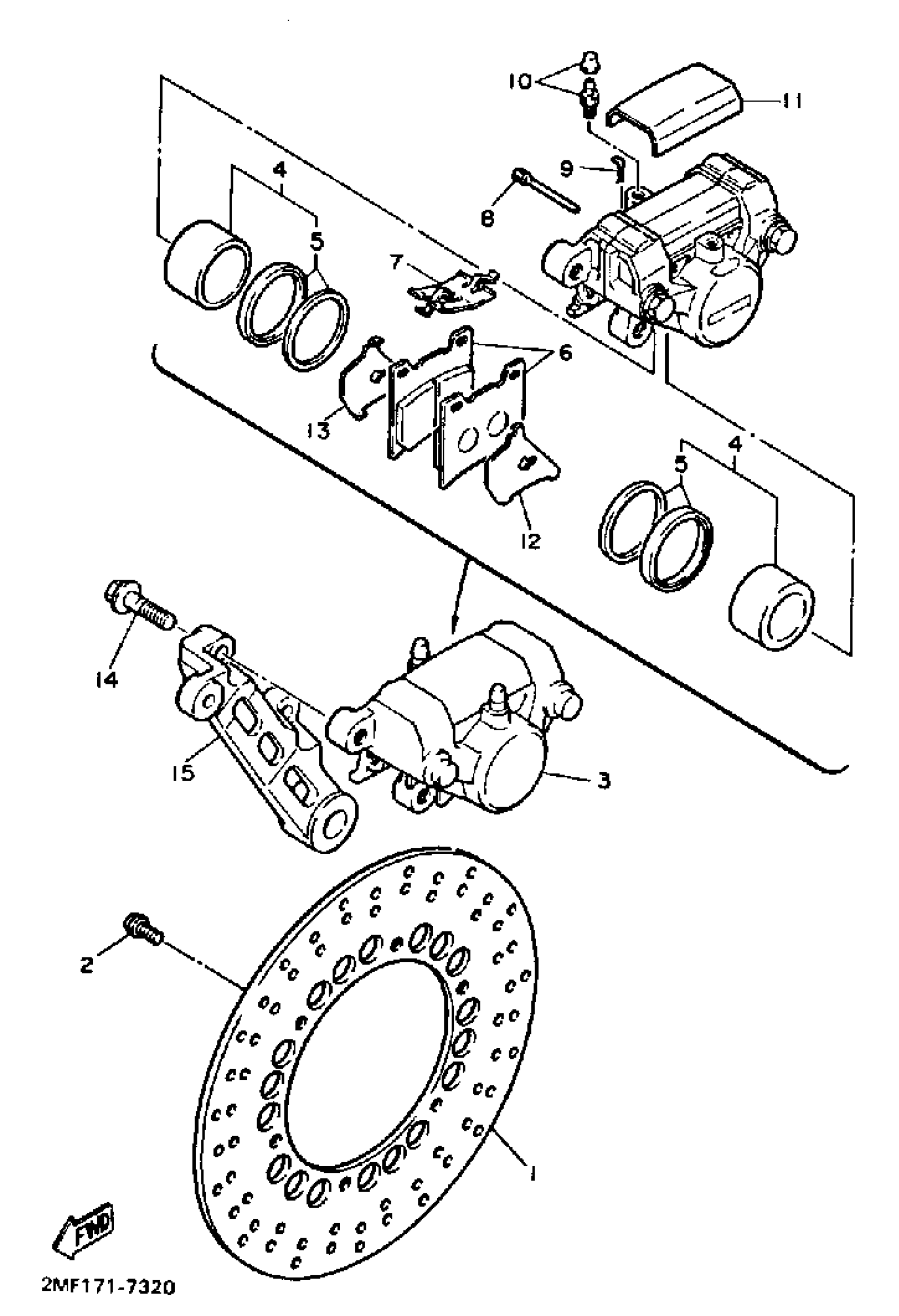

Yamaha FZ700TC (FZ700 CA) 1987 REAR BRAKE CALIPER Diagram

DISC, BRAKE (RIGHT)

2KT-25831-00-00

Unavailable

BOLT

90109-084F7-00

$9.49

CALIPER ASSEMBLY

2KT-25810-51-00

Unavailable

PISTON ASSY, CALIPER

31A-W0057-00-00

$141.99

PISTON SEAL KIT

31A-W0047-00-00

$57.99

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

SUPPORT, PAD

1WG-25919-00-00

$10.99

PIN, PAD

3HE-25924-00-00

Unavailable

CLIP, PAD PIN

3GM-25925-00-00

$11.99

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

COVER, DUST

51J-25836-01-00

Unavailable

SHIM, CALIPER

1FK-25827-01-00

$16.49

SHIM, CALIPER

1FK-25828-01-00

$15.49

BOLT, WASHER BASED(1AR)

90105-10634-00

$10.49

BRACKET, CALIPER

1AE-25819-52-00

Unavailable
