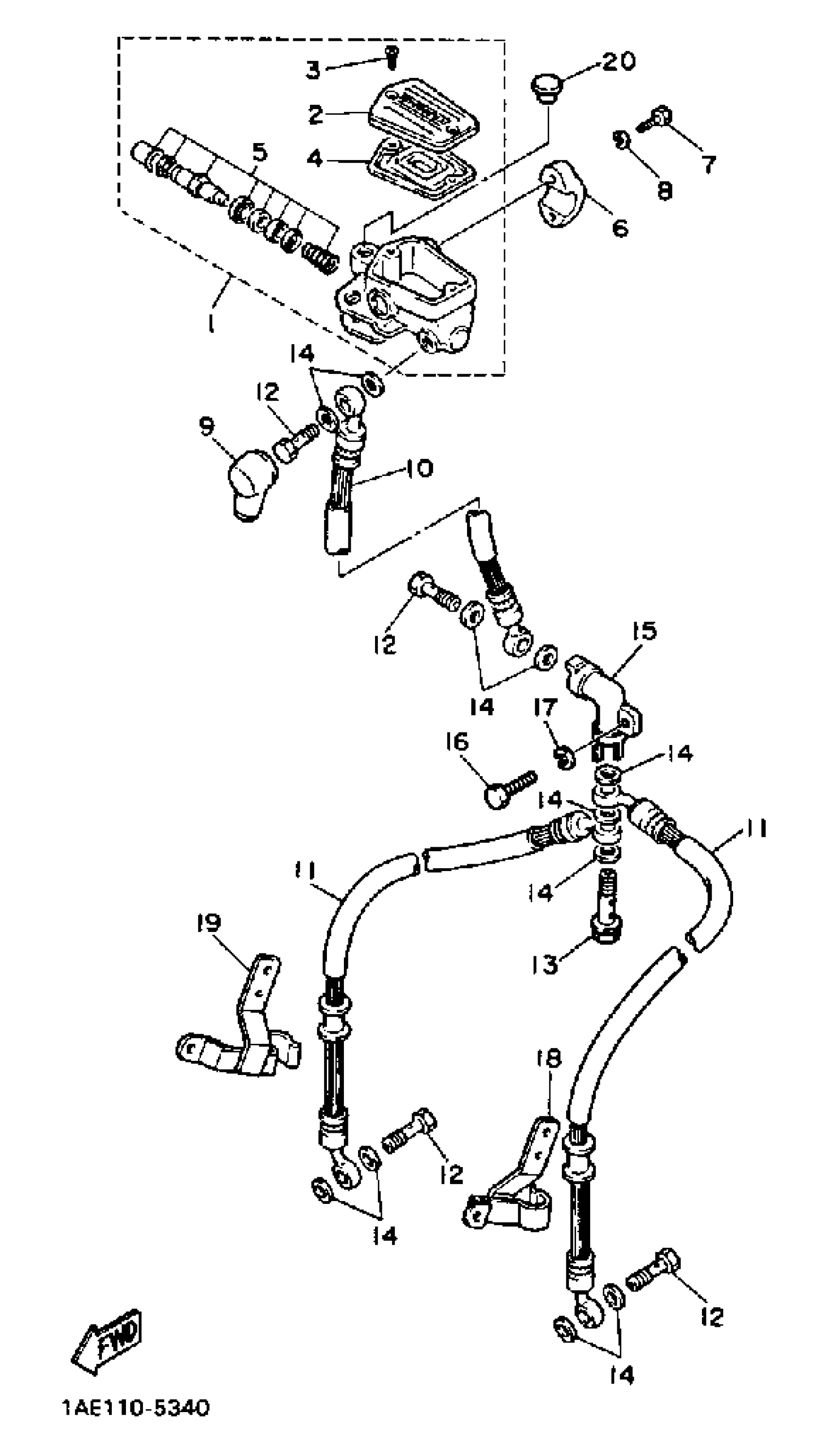

Yamaha FZ700TC (FZ700 CA) 1987 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

3HE-2583T-02-00

Unavailable

2

CAP, RESERVOIR

3HE-25852-01-00

$29.99

3

SCREW, FLAT

98707-04012-00

$2.18

4

DIAPHRAGM, RESERVOIR

36Y-25854-00-00

$35.99

5

CYLINDER KIT, MASTER

36Y-W0041-00-00

Unavailable

6

BRACKET, MASTER CYLINDER

36Y-25867-00-00

$24.99

7

BOLT,SOCKET

91317-06025-00

$5.60

8

WASHER, SPRING

92907-06100-00

$4.25

9

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

10

HOSE,BRAKEL

99999-02538-00

Unavailable

11

HOSE,BRAKE 2

99999-02379-00

Unavailable

12

BOLT, UNION(3GM)

90401-10159-00

$11.49

13

BOLT, UNION

90401-10038-00

$12.49

14

WASHER, PLATE(481)

90201-10118-00

Unavailable

15

JOINT

1J7-25885-01-00

Unavailable

16

BOLT, HEXAGON

97017-06025-00

Unavailable

17

WASHER, SPRING

92907-06100-00

$4.25

18

HOLDER, BRAKE HOSE

1AE-25886-00-00

Unavailable

19

HOLDER, BRKE HOSE 2

1AE-25876-00-00

Unavailable

20

PLUG (341-26329-00)

90338-09012-00

Unavailable
