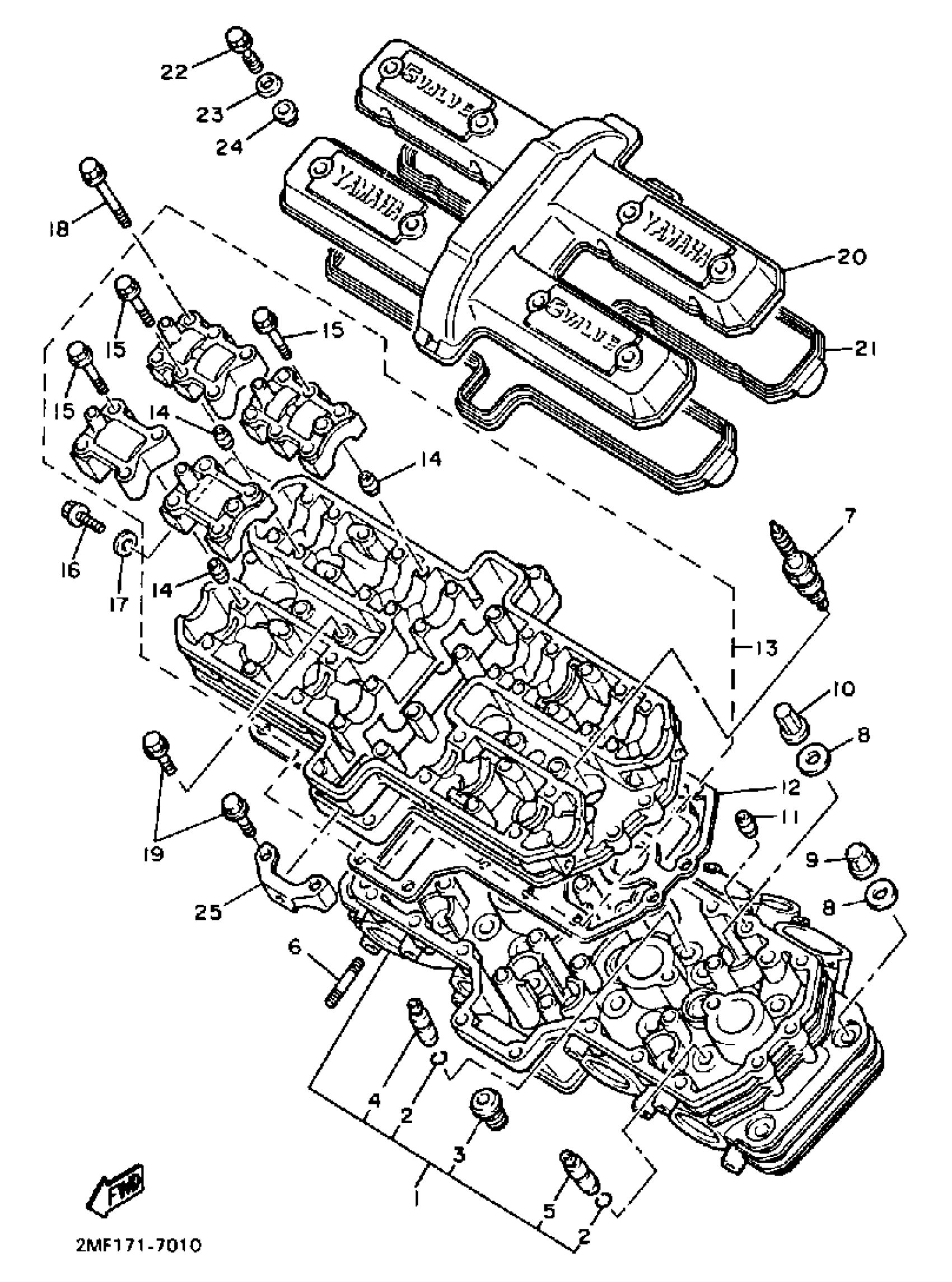

Yamaha FZ700TC (FZ700 CA) 1987 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

2KT-11102-00-00

Unavailable

2

CIRCLIP(1AA)

93440-09141-00

$2.29

3

PLUG, STRAIGHT SCREW (33M)

90340-18101-00

$11.49

4

. GDE, INTK VLV 1 O/S

1AA-11133-10-00

Unavailable

5

. GDE, EXST VLV 1 O/S

1AA-11134-10-00

Unavailable

6

BOLT, STUD(1FW)

90116-06466-00

$4.51

7

DP8EA9 NGK SPLUG 10PK

DP8-EA900-00-00

Unavailable

8

WASHER, PLATE(1AA)

90201-096J9-00

$4.41

9

NUT(1AA)

90179-09489-00

Unavailable

10

NUT(1AA)

90179-09490-00

$7.49

11

PIN, DOWEL(3VD)

99530-10114-00

$2.55

12

GASKET, CYLINDER HEAD 2

2GH-11182-00-00

Unavailable

13

CAM CASE ASSY

1AA-1115A-01-00

Unavailable

14

PIN, DOWEL(3XW)

91808-16023-00

$8.49

15

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

16

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

17

GASKET 256113960000

90430-06014-00

Unavailable

18

BOLT, WASHER BASED(1AA)

90105-06362-00

Unavailable

19

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

20

COVER, CYL HEAD 1

1TV-11191-01-00

Unavailable

21

GASKET, HEAD COVER 1

4AS-11193-01-00

Unavailable

22

BOLT(3TJ)

90109-064F0-00

Unavailable

23

WASHER(46X)

90209-11262-00

Unavailable

24

RUBBER, MOUNT 1

2GH-1111G-00-00

Unavailable

25

BRACKET 1

1AE-1244E-00-00

Unavailable
