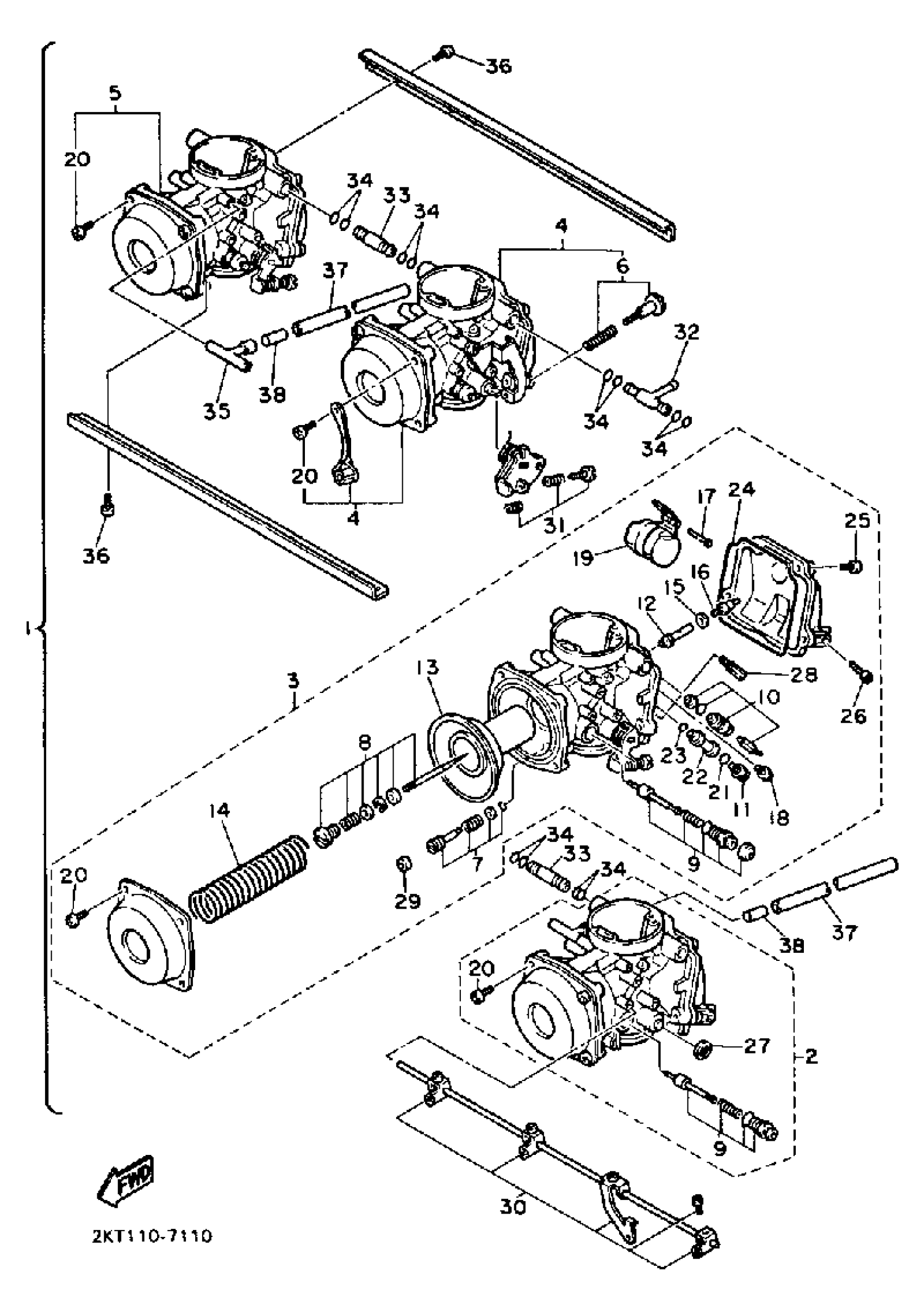

Yamaha FZ700TC (FZ700 CA) 1987 CARBURETOR Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

[2K-T1490-00-00

Unavailable

1

UNAVAILABLE IN PRICE BOOK

[2K-U1490-00-00

Unavailable

2

. CARBURETOR 1

2KU-14901-00-00

Unavailable

3

. CARBURETOR ASSEMBLY 2

2KT-14902-00-00

Unavailable

3

. CARBURETOR 2

2KU-14902-00-00

Unavailable

4

. CARBURETOR 3

2KT-14903-00-00

Unavailable

4

. CARBURETOR 3

2KU-14903-00-00

Unavailable

5

. CARBURETOR 4

2KT-14904-00-00

Unavailable

5

. CARBURETOR 4

2KU-14904-00-00

Unavailable

6

.. THROTTLE SCREW SET

1AE-14103-00-00

Unavailable

7

PILOT SCREW SET

12R-14105-00-00

$17.49

8

.. NEEDLE SET

1AE-1490J-00-00

Unavailable

8

.. NEEDLE SET

2KT-1490J-00-00

Unavailable

9

.. STARTER SET

1AE-1410A-00-00

Unavailable

9

STARTER SET

1FN-1410A-00-00

$79.99

10

NEEDLE VALVE SET

1FN-14107-12-00

Unavailable

11

JET, MAIN (#100)

620-14231-20-00

Unavailable

11

JET, MAIN (#105)

620-14231-21-A0

Unavailable

12

.. NOZZLE, MAIN

1AE-14141-92-00

Unavailable

13

DIAPHRAGM ASSY

1AE-14940-00-00

Unavailable

14

.. SPRING, DIAPHRAGM

1AE-14933-00-00

Unavailable

15

WASHER,MAIN JET

137-14153-00-00

Unavailable

16

SCREW

1AE-14565-00-00

Unavailable

17

PIN, FLOAT

353-14186-00-00

Unavailable

18

SCREW

1FN-14565-00-00

Unavailable

19

.. FLOAT

1WG-14985-00-00

Unavailable

20

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

21

O-RING

1AE-14227-00-00

Unavailable

22

.. HOLDER

2LH-14261-00-00

Unavailable

23

GASKET

1AE-14237-00-00

Unavailable

24

O-RING

1FN-14147-00-00

Unavailable

25

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

26

PLUG, DRAIN

12R-14191-00-00

Unavailable

27

CLIP

812-14137-00-00

Unavailable

28

JET, PILOT (# 15)

3H1-14142-15-00

Unavailable

29

CAP

3F9-14118-00-00

Unavailable

30

. STARTER LEVR SET, 1

1FN-1490L-00-00

Unavailable

31

STOP SCREW SET

(1FN-1490K-01-00)

Unavailable

32

. NIPPLE

1HX-14251-00-00

Unavailable

33

. NIPPLE

16H-14251-00-00

Unavailable

34

O-RING

36Y-14147-00-00

Unavailable

35

. PIPE

1AE-14197-00-00

Unavailable

36

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

37

. PIPE, AIRVENT

11H-14197-00-00

Unavailable

38

. RING

1FN-14918-00-00

Unavailable

38

. RING

1FN-14918-00-00

Unavailable
