2014 Yamaha FZR6 (FZ6RER) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2014 Yamaha FZR6 (FZ6RER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

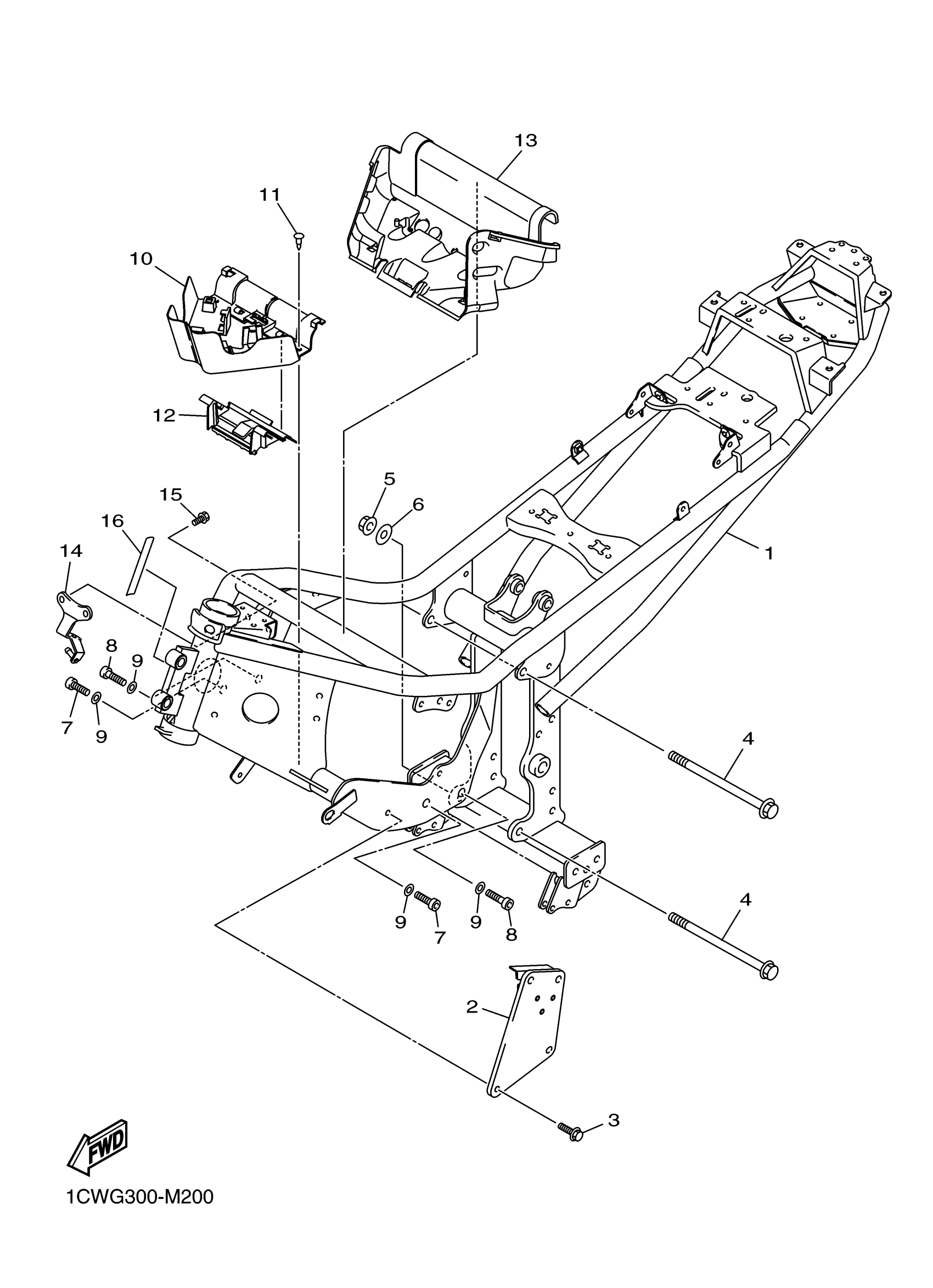

2014 Yamaha FZR6 (FZ6RER) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

1CW-21110-50-00

1
Out of stock

2

GUSSET

20S-21136-00-00

—
Out of stock

3

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

4

BOLT, WASHER BASED(42X)

90105-10297-00

1
Out of stock

5

NUT(4KG)

90179-10658-00

1

$7.49

In stock

6

WASHER, PLATE

90201-10051-00

1
Out of stock

7

BOLT, SOCKET

91314-10035-00

—

$3.74

In stock

8

BOLT

91312-10045-00

1
Out of stock

9

WASHER, PLATE

90201-10030-00

1
Out of stock

10

COVER 3

20S-2117N-00-00

—
Out of stock

11

RIVET

90269-07007-00

1

$3.37

In stock

12

COVER 4

20S-2117R-00-00

—
Out of stock

13

COVER 5

20S-2117T-00-00

—
Out of stock

14

BRACKET

20S-21249-00-00

—
Out of stock

15

BOLT, FLANGE

95812-06010-00

1

$2.75

In stock

16

PROTECTOR

3D8-2117G-00-00

1

$5.40

In stock
